ZTS MBT-1 Multi-Battery Tester™ Outfit, with Soft Case & 4 AA Batteries
by ZTS®
$105.00
SKU MBT-1-OUTFIT

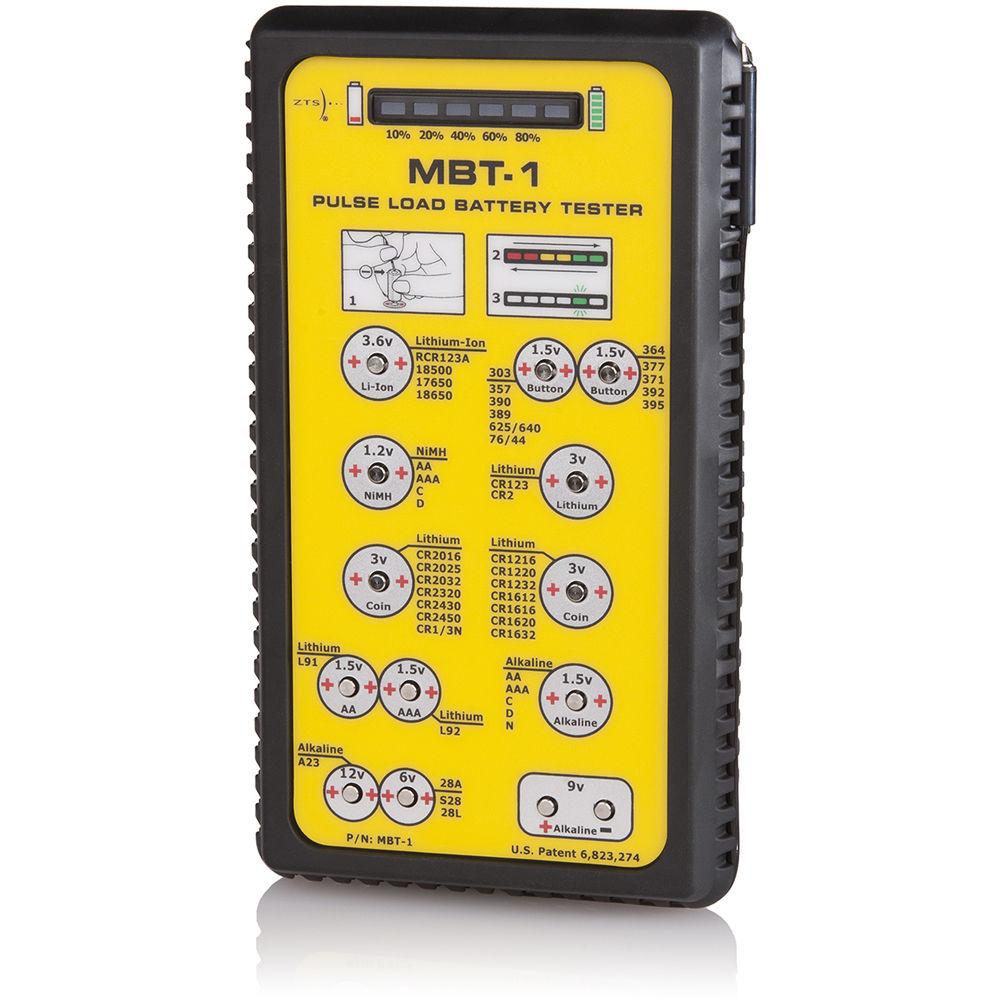

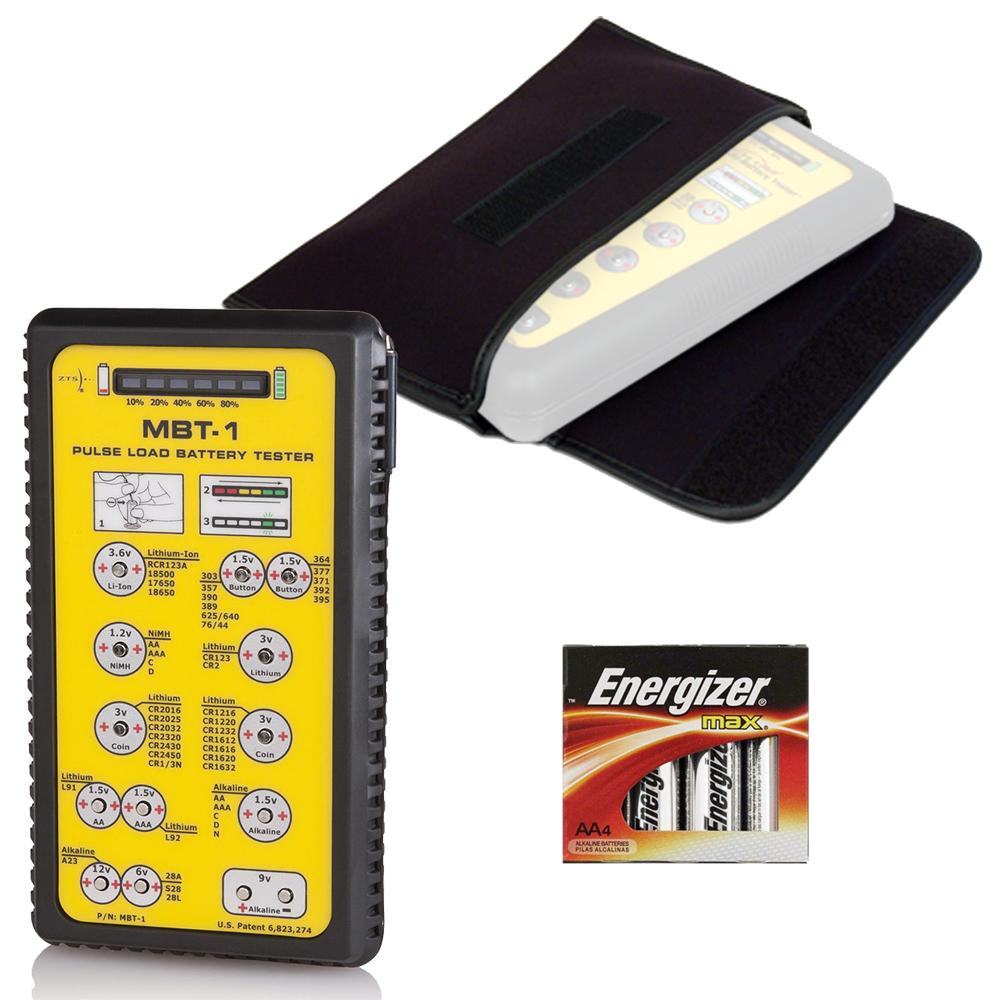

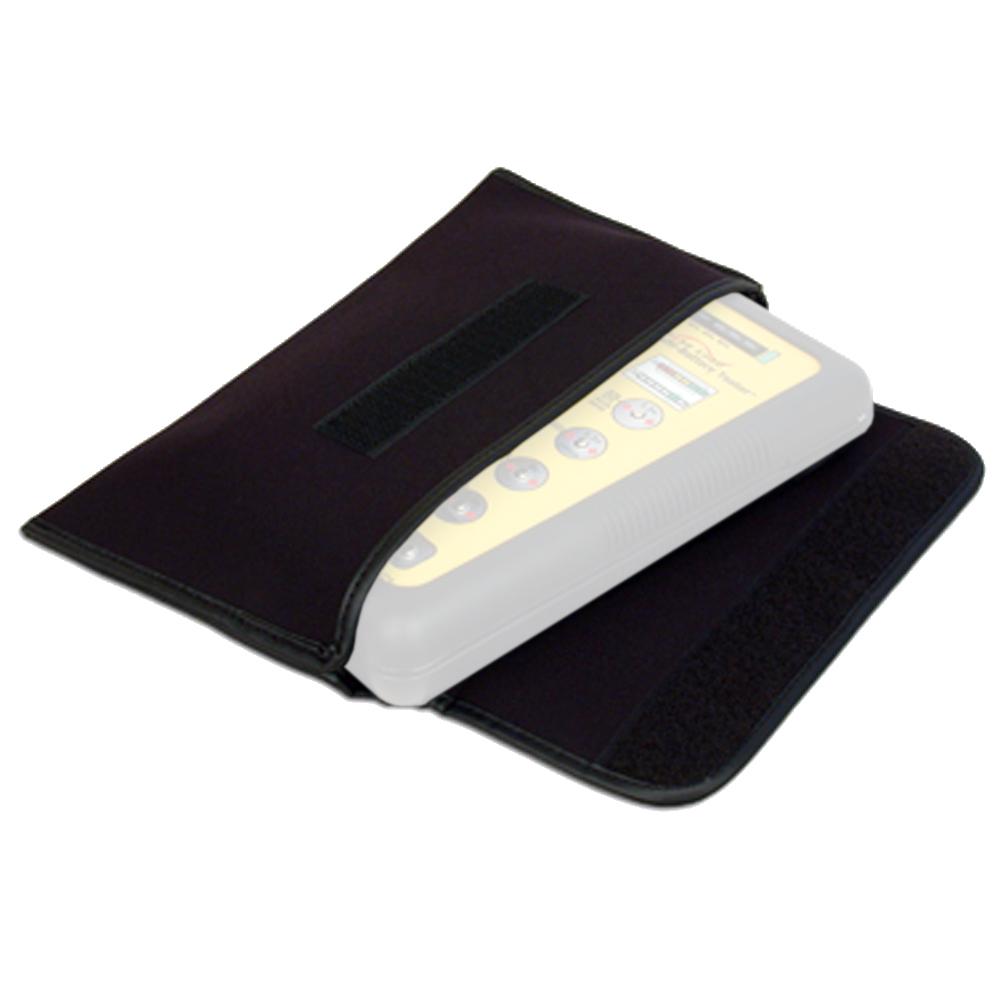

ZTS MBT-1 Multi-Battery Tester with Soft Case & 4 AA Batteries

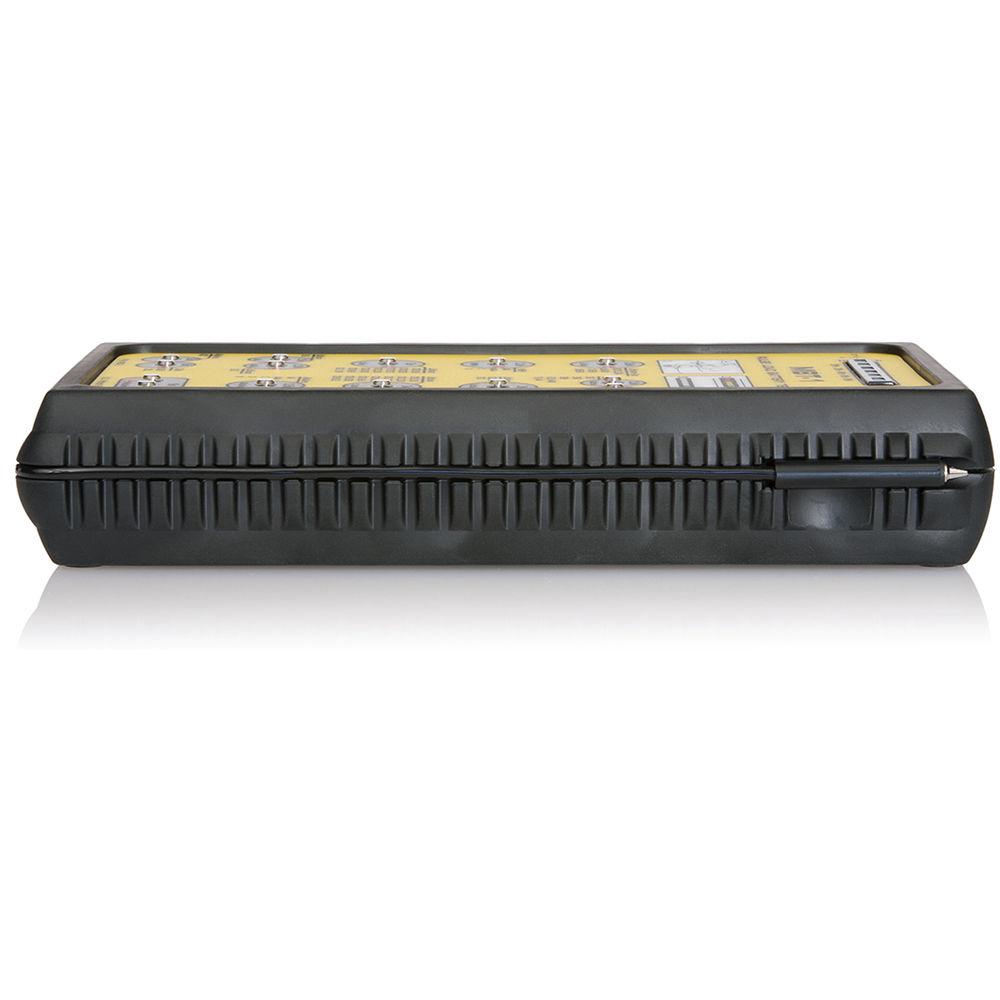

The ZTS Multi-Battery Tester™ (MBT-1) provides a comprehensive means of testing the state of charge or state of power for more than 40 battery types. This microprocessor-controlled instrument is designed to test popular primary (non-rechargeable) and rechargeable batteries using a patented, high accuracy pulse load test. After a fully automatic test cycle, percentage of remaining battery capacity is indicated on the LED bar display. Battery types are clearly labeled next to appropriate contacts. Negative test lead/probe conveniently stores in seam at side. There are no switches or settings, and test results are easy to understand. Test NiMH, Li-Ion, alkaline, lithium, coin cell, button type and more. Uses 4AA batteries (included). Made in U.S.A.
• Capable of Testing the following battery types:
- 3.6v Li-Ion rechargeable [RCR123A, 18500, 17650, 18650]
- 1.5v button cell [364, 377, 371, 392, 395, S76, A76, A625, A640, LR44, 357, 303]
- 1.2v NiMH/NiCd rechargeable [AA, AAA, C, D]
- 1.5v lithium [AA L91, AAA L92]
- 3v lithium coin [CR1216, CR1220, CR1232, CR1612, CR1616, CR1620, CR1632, CR2016, CR2025, 58L, 1/3N, CR2032, CR2320, CR2430, CR2450
- 6v '28' series [28A, S28, 28L, 544, 4LR44]
- 3v lithium cylindrical [CR123, CR2]
- 1.5v alkaline [AA, AAA, C, D, N]
- 12v alkaline [A23]
- 9v alkaline & carbon zinc
• Power (internal): 4 AA batteries
• Display: 6 LEDs - colors green, yellow, red
• Pulse Load: magnitude varies according to battery type
• Operation: microprocessor-controlled test cycle
• Test duration: 2-3 seconds, varies according to battery type
• Contact terminals: solid brass, nickel-plated
• Dimensions: 8 x 4.5 x 1.25 inches
• Weight: approx. 14.5 oz. / 400g (without batteries)
Specifications
• Capable of Testing the following battery types:
- 3.6v Li-Ion rechargeable [RCR123A, 18500, 17650, 18650]
- 1.5v button cell [364, 377, 371, 392, 395, S76, A76, A625, A640, LR44, 357, 303]
- 1.2v NiMH/NiCd rechargeable [AA, AAA, C, D]
- 1.5v lithium [AA L91, AAA L92]
- 3v lithium coin [CR1216, CR1220, CR1232, CR1612, CR1616, CR1620, CR1632, CR2016, CR2025, 58L, 1/3N, CR2032, CR2320, CR2430, CR2450
- 6v '28' series [28A, S28, 28L, 544, 4LR44]
- 3v lithium cylindrical [CR123, CR2]
- 1.5v alkaline [AA, AAA, C, D, N]
- 12v alkaline [A23]
- 9v alkaline & carbon zinc
• Power (internal): 4 AA batteries
• Display: 6 LEDs - colors green, yellow, red
• Pulse Load: magnitude varies according to battery type
• Operation: microprocessor-controlled test cycle
• Test duration: 2-3 seconds, varies according to battery type
• Contact terminals: solid brass, nickel-plated
• Dimensions: 8 x 4.5 x 1.25 inches
• Weight: approx. 14.5 oz. / 400g (without batteries)
