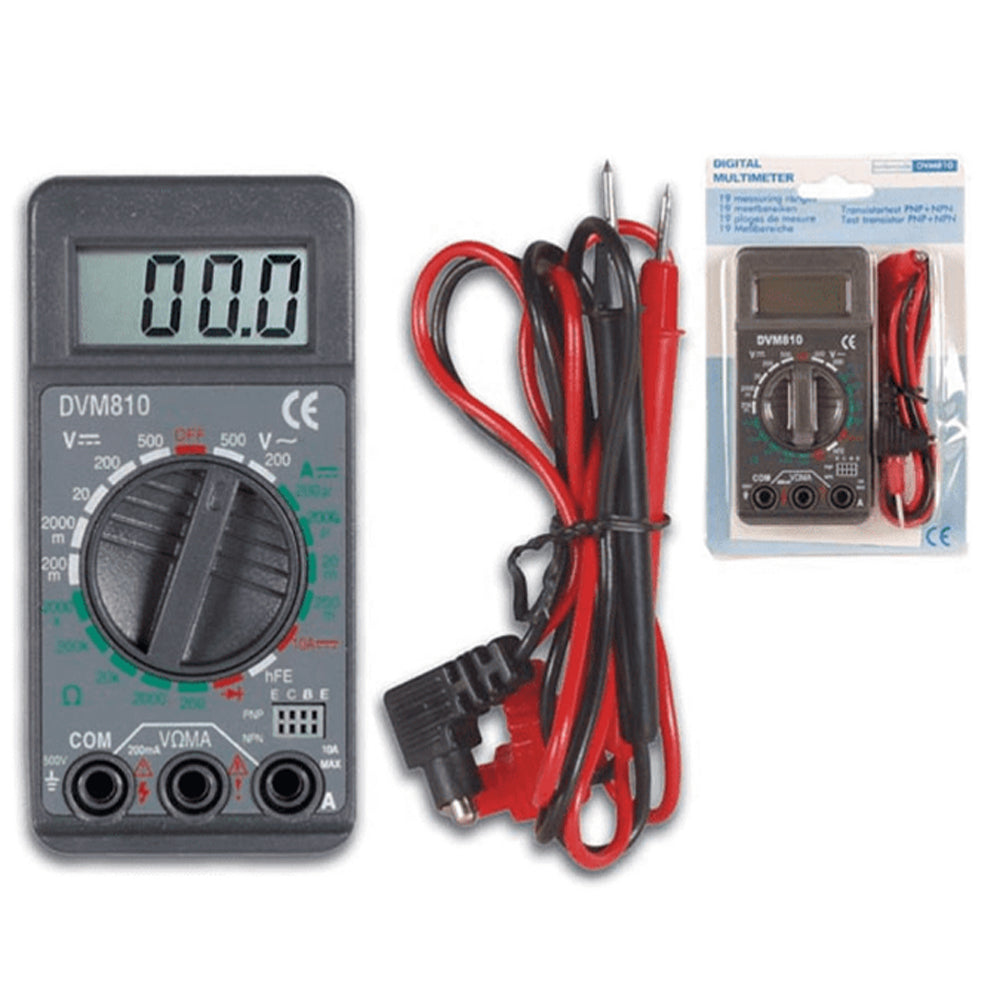

Velleman DVM810 3-1/2 Digit Mini Digital Multimeter with 19 Measuring Ranges
This mini-sized multimeter measures Voltage, Current, Resistance, Temperature, Frequency, Continuity, hFE, and it has a Diode Test.
Features
Automatic polarity indication
Voltage measurements: AC 500V and DC 500V max.
Current measurements: DC 10A max.
Resistance measurements: 2MΩ
Diode and transistor (hFE) test
CAT II rated meter
Includes: User manual, test leads, 1 GP23GA 12V battery
Packaging: blister pack
Over-range: Yes
Transistor (hFE) NPN/PNP test: Yes
Diode test: Yes
Low-battery indication: Yes
Maximum display: 3 1/2 digits
LCD display height: 0.5"
Ranging mode: Manual
Size: 3.6"L x 1.8"W
Weight (with battery): 3.2 oz. (0.2 lbs.)
Power supply: 12V battery (included)
Specifications
DC voltage: 200m/2000m/20/200/500VBasic accuracy: ±0.5% (±0.25% for 200mV range)
Maximum input: 500V
AC voltage: 200/500V
Basic accuracy: ±1.2%
Frequency range: 45-450Hz
Maximum input: 500V
DC current: 200µ/2000µ/20m/200m/10A
Basic accuracy: ±1.0% (±2.0% for 10A range)
Overload protection: 200mA 250V fuse (10A-range is not fuse-protected)
Resistance: 200/2000/20k/200k/2000k
Basic accuracy: ±0.8% (±1.0% for 2000k range)
Overload protection: 220Vrms max. for 15 seconds
Size: 3.6"L x 1.8"W
Weight (with battery): 3.2 oz. (0.2 lbs.)
