How to Test Your Car Battery: Carbon Pile vs. Conductance Battery Testers

A vehicle battery can be showing signs of weakness long before it leaves you stranded. If your vehicle still starts normally, it can be easy to assume the battery is in good shape, even when a battery test says otherwise. So, how can you tell whether your battery really needs to be replaced?

There are several ways to test a vehicle battery, including carbon pile load testers and electronic conductance testers. While both can help evaluate battery health, they work differently and provide different types of information. Understanding how each tester works can help you make a more informed decision about whether your battery is ready for replacement.

Key Takeaways

• A battery can be weak or marginal even if your vehicle is still starting normally.
• A carbon pile load tester physically places a load on the battery to simulate the demands of starting a vehicle.
• A conductance tester electronically evaluates the battery based on the battery's specified rating.
• When using a conductance tester, it's important to enter the correct cold cranking amp (CCA) rating. Entering an incorrect or unnecessarily high CCA rating can make a healthy battery appear to be failing.
• If you're unsure about your battery's condition, have it tested and compare the results with the battery's actual specifications.

Why Test Your Vehicle Battery?

A battery doesn't always give you an obvious warning before it starts failing. Your car may continue to start normally even as the battery's ability to deliver power decreases.

In Scott's case, a routine oil change resulted in a report that his vehicle's battery was bad and needed to be replaced. Rather than immediately replacing it, he decided to test the battery himself.

In this video, he uses two different types of battery testers, a carbon pile load tester and conductance tester, to compare results and demonstrate how each testing method works.

What’s the Difference Between the Testers?

While both testers can be useful for determining battery health, they approach the test differently:

A carbon pile load tester physically loads the battery. It doesn't require you to tell the tester what the battery is supposed to produce. Instead, you apply the load and observe how the battery responds by monitoring its voltage and amperage.

A conductance tester, on the other hand, uses the battery's specifications as part of its evaluation. You enter the battery's rated CCA, and the tester measures the battery's performance against that value.

This difference is important when interpreting the results of an electronic battery test.

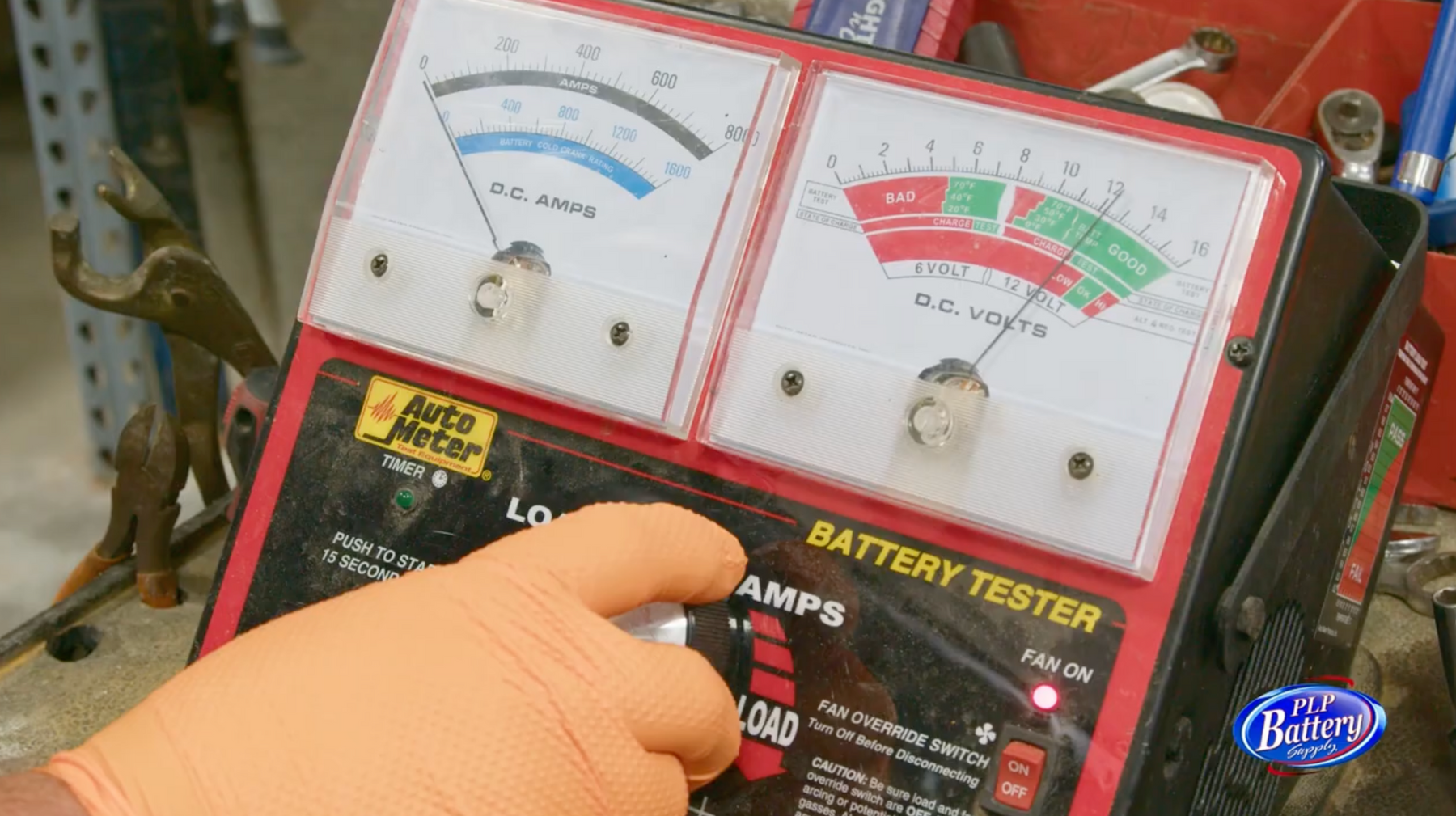

Testing a Battery with a Carbon Pile Load Tester

The first tester Scott uses is a carbon pile load tester. Unlike an electronic tester that calculates battery performance based on an input value, a carbon pile tester physically places a load on the battery.

The process is similar to simulating the demand placed on a battery when starting a vehicle.

After connecting the tester to the battery, the tester's dial is turned to apply a load. As the load increases, you can monitor both the battery's voltage and amperage.

A battery that is in good condition should be able to maintain its performance under the appropriate load. If the voltage drops significantly while the battery is under load, it can indicate that the battery is weak.

In Scott's test, the battery's voltage and amperage dropped during the load test. The results indicated that the battery was marginal and likely should be replaced, even though the vehicle had not yet experienced any starting problems.

That's an important distinction: a battery can test weak before it actually fails to start your vehicle. This is consequential, because operating under the low voltage supplied by a weak battery can damage your car's starter and other electrical components.

Testing a Battery with a Conductance Tester

The testing process using an electronic conductance tester is different. Rather than physically applying a load to the battery, the tester requires you to enter information about the battery before conducting the test.

In this case, the battery label shows a rating of 650 cold cranking amps (CCA). Scott selected the appropriate battery type and entered 650 CCA into the tester.

The test took only a few seconds. The tester measured the battery at approximately 297 CCA, significantly below its rated 650 CCA. Based on those results, the tester recommended replacing the battery.

The conductance tester therefore reached the same general conclusion as the carbon pile tester: the battery was no longer performing at its rated capacity.

One of the most important things to pay attention to when someone uses a conductance tester on your battery is whether the correct battery rating has been entered.

If someone enters a higher rating than the battery is actually designed to provide, the battery could be judged against a standard it was never intended to meet. That could potentially result in a "bad battery" reading even when the battery is performing appropriately for its actual specifications.

Does a Weak Battery Always Mean You Need to Replace It?

A battery test is an important tool for determining battery health, but the results should be considered alongside the battery's age, condition, vehicle requirements, and starting performance.

In Scott's example, the vehicle was still starting without any problems, but both testing methods indicated that the battery was no longer performing at its rated level.

That means waiting until the battery completely fails isn't necessarily the best approach. Testing can give you an opportunity to identify a weakening battery before you're unexpectedly stuck with a vehicle that won't start.
