How to Replace Booster Cable Clamps

Over time, booster cable clamps can wear out from regular use. Bent jaws, damaged contact points, and worn clamps can create a poor connection and increase resistance, which can reduce the performance of your charger.

In this tutorial, we walk you through how to replace a larger booster cable clamp and share tips to help you get a secure, long-lasting connection.

Why Replace a Worn Booster Cable Clamp?

A damaged clamp is more than just an inconvenience. When clamps start to wear out, they can create a high-resistance connection when attached to a battery or ground point.

High resistance can cause:

• Excess heat at the connection point

• Reduced charging performance

• Less power getting from the charger to the battery

Replacing a worn clamp is a simple repair that can help keep your equipment working properly.

What You’ll Need

For this repair, we use:

• A replacement booster cable clamp

• 4-gauge welding cable

• Pliers

• A soldering setup

• A tool to remove the cable insulation

The Most Important Tip Before You Start

When replacing a clamp where the cable runs through the handle and attaches behind the jaw, remember: Feed the cable through the clamp before attaching the jaw.

If you attach the jaw first, you’ll have to remove it and start over because the cable needs to pull back through the clamp during assembly.

How to Replace the Clamp

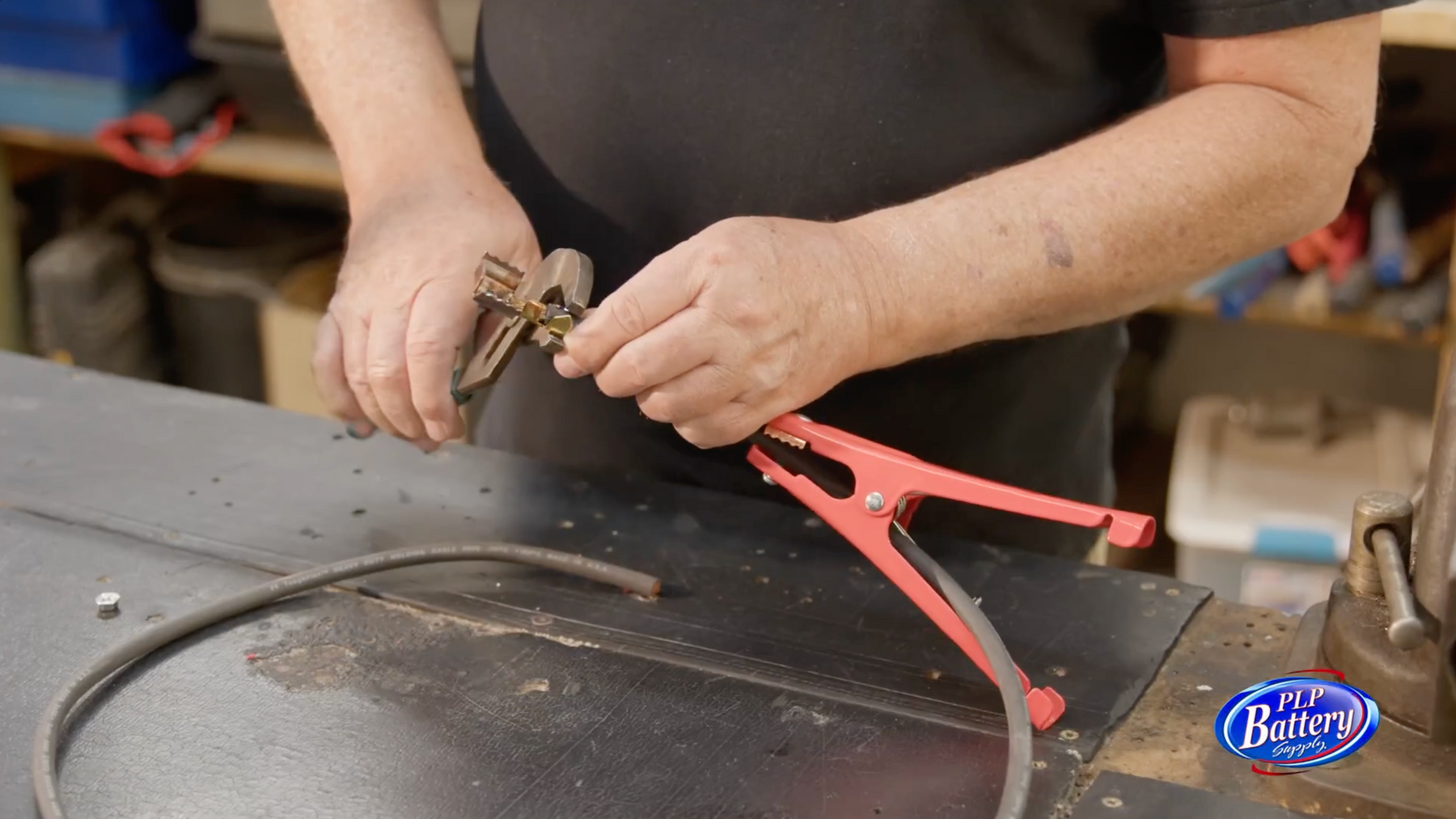

1. Remove the Old Clamp

Start by removing the jaw from the replacement clamp assembly. This separates the jaw from the clamp body and gives you access to where the cable will be attached.

2. Feed the Cable Through the Clamp

Run the cable through the clamp before making any connections.

The clamp includes a strain relief area that will later grip the insulation and help prevent tension from pulling directly on the cable connection.

3. Prepare the Cable

Remove enough insulation from the end of the cable to expose the wire strands.

The exposed cable should fit into the clamp connection area and allow enough room to secure the cable and create the electrical connection.

4. Secure the Cable Connection

Push the cable strands into the clamp tabs and secure them before soldering. We recommend soldering the connection to ensure the cable is properly attached.

5. Add Strain Relief

After soldering, bend the strain relief tabs over the cable insulation.

The strain relief helps prevent pulling force from being transferred directly to the cable connection, helping protect the wire from internal damage.

6. Reassemble the Clamp

Pull the cable and attached jaw back into position inside the clamp. Tighten the jaw securely, then reinstall the spring and finish bending the tabs into place.

Once complete, you should have a secure new clamp ready for use.

Final Tips

These replacement steps apply to many clamps with independent jaws. Larger clamps typically follow this same process, while smaller clamps may attach differently.

Whether you’re working on a charger, booster cables, or another battery accessory, taking the time to properly secure the cable connection and strain relief will help ensure a repair that lasts.

If you have questions about battery chargers, cables, or replacement parts, contact PLP Battery Supply. We’re happy to help.
