How to Test a Battery Charger Rectifier with a Multimeter

When troubleshooting a battery charger, getting accurate meter readings is essential. One common point of confusion is that analog and digital multimeters don't always display rectifier test results the same way. If you're unaware of the difference, you may mistakenly think a rectifier has failed when it's actually working properly.

At PLP Battery Supply, every replacement rectifier is tested before it leaves our facility. Understanding how these tests work and how your meter may differ from ours can save you time, frustration, and unnecessary parts replacement.

Key Takeaways

• Every rectifier is tested before it ships from PLP Battery Supply.

• Analog and digital multimeters produce opposite readings when testing rectifiers.

• Using the wrong testing method can lead to incorrect conclusions about whether a rectifier is functioning properly.

• The diode check function on a digital multimeter should be used when testing a rectifier.

• If you're unsure about your test results, the PLP Battery Supply team is available to help.

Why Rectifier Testing Matters

The rectifier is a critical component inside many industrial battery chargers. Its job is to convert AC power into DC power so your batteries can charge properly. If a rectifier fails, your charger's performance can suffer or stop altogether.

Because of its importance, every replacement rectifier assembled at PLP Battery Supply is thoroughly tested before being packaged and shipped to customers. This quality control process helps ensure that the component is functioning correctly before installation.

How PLP Battery Supply Tests a Positive Base Rectifier

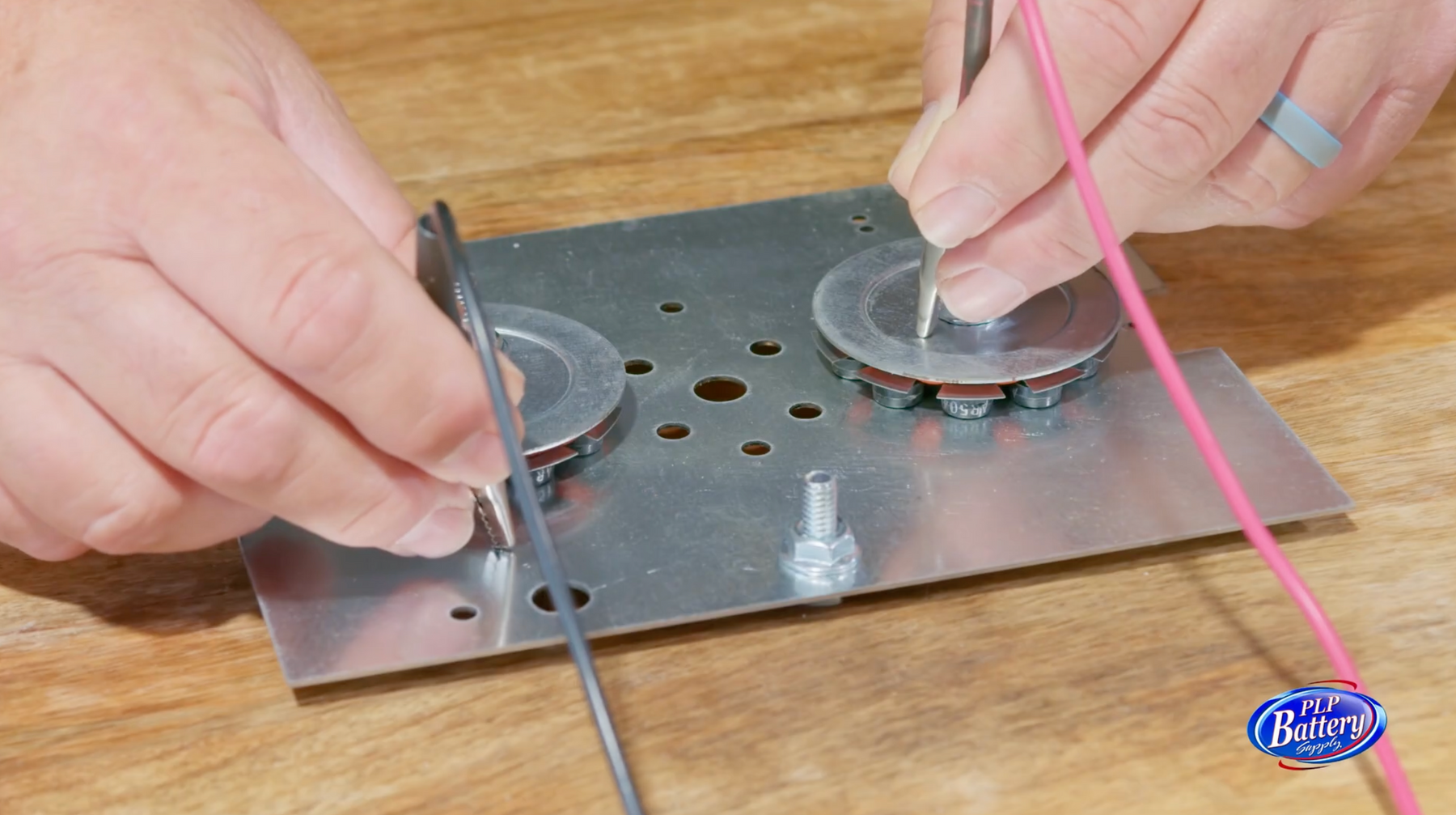

For a positive base rectifier, technicians begin by checking continuity with an analog meter.

First, the positive lead is placed on the rectifier plate while the negative lead is placed on the diode array. A properly functioning rectifier will show continuity. This test is performed on both sides of the rectifier to verify consistent results.

Next, the leads are reversed. With the negative lead on the plate and the positive lead on the diode array, there should be no continuity. Again, both sides are checked to confirm the rectifier is operating correctly.

This testing process is completed before the rectifier is approved for shipment.

Why Digital Multimeters Show Different Results

A recent customer inquiry highlighted an important difference between analog and digital meters.

After comparing test results, the PLP Battery Supply team discovered that the customer was using a digital multimeter while the rectifier had originally been tested using an analog meter. Although both meters were testing the same component correctly, the readings appeared opposite.

When using a digital multimeter in diode test mode:

• Placing the positive lead on the plate and the negative lead on the diode array produces no reading.

• Reversing the leads—with the negative lead on the plate and the positive lead on the diode array—produces the expected diode reading.

In other words, the results appear reversed compared to what you would see on an analog meter. This is completely normal and doesn't necessarily indicate that the rectifier is defective.

Understanding this difference can prevent unnecessary troubleshooting and help you interpret your meter readings with confidence.

When in Doubt, Ask the Experts

Electrical troubleshooting can be challenging, especially when different testing equipment produces different-looking results. Knowing whether you're using an analog or digital multimeter and understanding how each one behaves can make diagnosing a charger much easier.

If you're unsure whether your rectifier is functioning correctly or need help selecting the right replacement, the experienced team at PLP Battery Supply is happy to walk you through the testing process and answer your questions.
