How to Test a Battery with a Hydrometer

Testing a battery with a hydrometer is a fundamental skill that’s slowly becoming a lost art as sealed and AGM batteries become more common. However, for golf carts, industrial equipment, and traditional flooded lead-acid batteries, hydrometer testing is still one of the most reliable ways to evaluate battery condition.

In this guide, we’ll walk through how to properly test a battery with a hydrometer, what the readings mean, and the common mistakes to avoid.

What Is a Hydrometer and Why Use One?

A hydrometer measures the specific gravity of the electrolyte inside a battery cell. This measurement tells you the state of charge of the battery.

Unlike many electronic testers, a hydrometer directly measures the chemical condition of the electrolyte, giving you highly reliable results when used correctly.

Types of Hydrometers

Float-type hydrometer

• Uses a float with a pointer scale

• More precise and easier to read

• Preferred for most battery testing


Ball-type hydrometer

• Uses floating balls to indicate charge level

• Helpful when electrolyte volume is low

For most applications, the float-type hydrometer provides the best accuracy and consistency.

Step-by-Step Guide to Testing a Battery with a Hydrometer

1. Prepare the Battery

• Carefully remove the battery cell caps.

• Ensure you can safely access the electrolyte.


2. Draw Electrolyte Into the Hydrometer

• Insert the hydrometer into the cell.

• Squeeze and release the bulb to draw fluid.

• Fill enough to allow the float to move freely.

• Avoid touching internal separators.


3. Remove Air Bubbles

• Gently tap the hydrometer to release bubbles.

• Air bubbles can falsely raise readings.

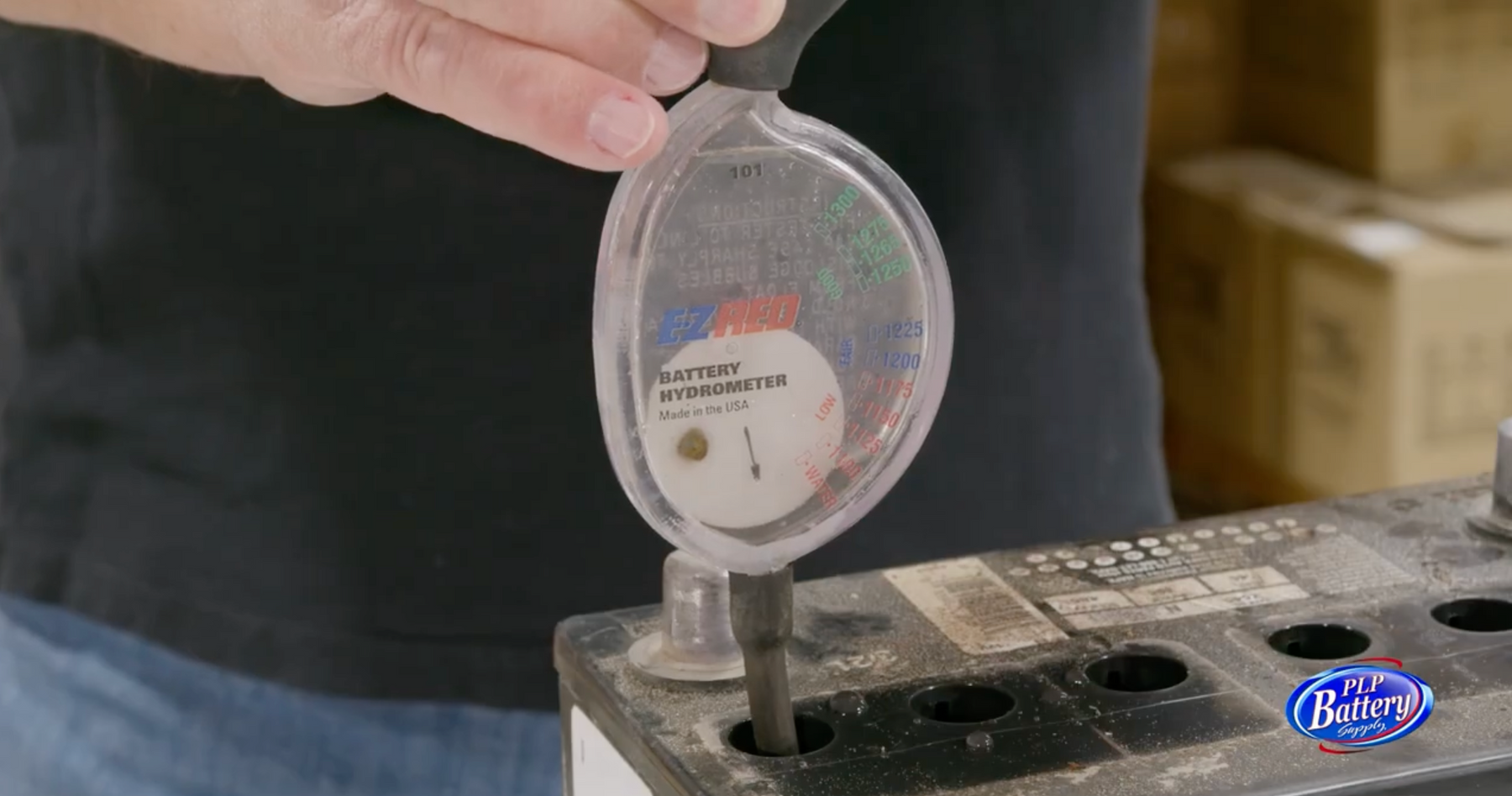

4. Read the Specific Gravity

Typical fully charged readings should be between 1.250 and 1.265. Consistent readings across all cells indicate balanced charging.

What Hydrometer Readings Really Tell You

A hydrometer measures state of charge, not total battery health.

A battery can show full specific gravity and still fail due to shorted cells, separator failure, dendrite formation, and internal damage.

Hydrometer testing is the first step, not the only step.

How to Spot a Weak or Failing Cell

Compare readings across every cell. You know something is wrong when there is a difference greater than 50 points (.050) between cells.

A significantly lower reading in one cell usually indicates a shorted or damaged cell, charging imbalance, or internal battery failure.

Why Load Testing Still Matters

After confirming the battery is fully charged, perform a load test.

Load testing determines whether the battery can deliver power under real-world conditions. This is the best way to confirm overall battery health.

Don’t Forget Voltage Testing

Use a voltmeter to confirm results. Typical readings of a fully charged 12V battery should be ~12.5 volts or higher.

Voltage testing + hydrometer testing + load testing = complete battery evaluation

Tips for Accurate Hydrometer Testing

Low Electrolyte Levels

If fluid is too low:

1. Add distilled water.

2. Fully charge the battery.

3. Then test with a hydrometer.


Testing immediately after adding water will give false readings.

Avoid Common Mistakes

• Don’t rely only on electronic testers.

• Always charge the battery before testing.

• Keep samples clean and uncontaminated.


Battery Types and Hydrometer Testing

Flooded Lead-Acid Batteries are ideal for hydrometer testing and regular maintenance.

AGM and Sealed Batteries cannot be tested with a hydrometer. Use voltage and load testing instead.

Final Thoughts

Hydrometer testing remains one of the most reliable ways to evaluate flooded lead-acid batteries. When combined with voltage and load testing, it gives you a clear picture of battery condition and performance.
