Understanding Battery Output Polarity: Positive vs Negative Output Explained

If you’re repairing a battery charger, replacing rectifier diodes, or troubleshooting charging problems, understanding charger output polarity is essential.

In this video, we break down how to identify whether a charger has a positive or negative output by tracing the rectifier wiring inside the unit. From large industrial Shoe Maker chargers to smaller automatic chargers with voltage regulation boards, this walkthrough explains how current flows through the charger and why polarity matters when ordering replacement parts.

Video Highlights

• Learn the difference between positive output and negative output chargers

• Understand how rectifiers convert AC power into DC charging current

• See how to trace rectifier output cables to identify charger polarity

• Learn why correct polarity matters when replacing diodes and rectifiers

• Explore examples of both large and small Shoe Maker chargers

• Discover how automatic voltage regulation affects charger wiring

• Get troubleshooting and safety tips for working inside chargers

Safety Tips for Charger Repairs

Before inspecting any charger internally, always disconnect the power source and use insulated tools around electrical components. While external clamp colors can provide clues, internal wiring verification is always the safest and most accurate method for identifying charger polarity.

Inside the Charger: How to Identify Output Polarity

To begin, open the charger cabinet and locate the rectifier assembly mounted near the transformer. The rectifier is responsible for converting AC power into DC power, which is then sent to the battery through the charger clamps.

To determine the charger’s polarity, trace the output cable connected to the rectifier.

If the output cable connects directly to the positive clamp, the charger is considered a positive output charger. If the cable routes to the negative clamp, the charger has a negative output.

Our walkthrough demonstrates this process on a large Shoe Maker charger, where the rectifier output clearly connects to the positive clamp. While many Shoe Maker chargers are positive output, it’s important to verify the wiring instead of assuming polarity based on brand alone.

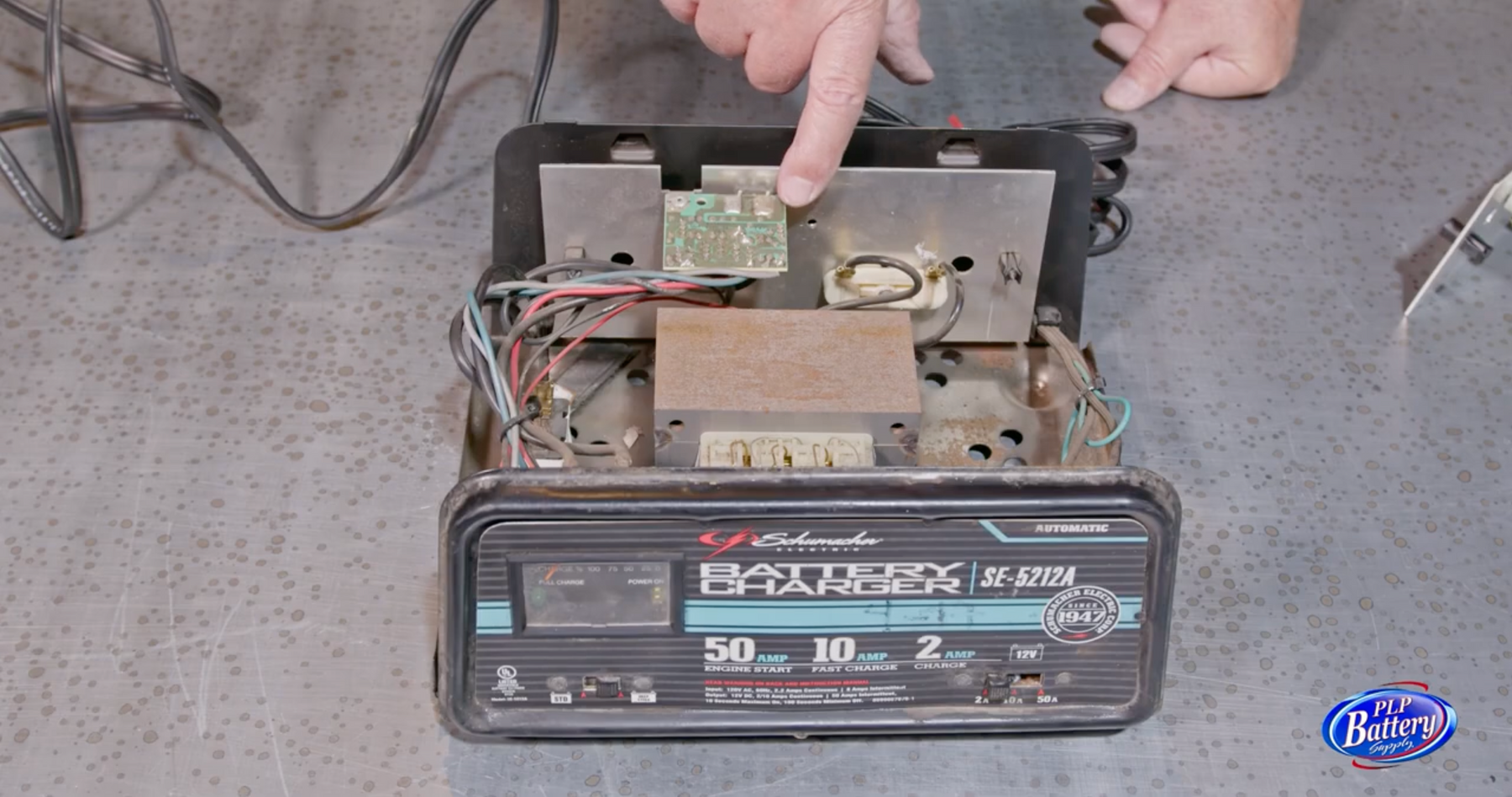

In a smaller 10-amp charger equipped with automatic voltage regulation circuitry, the rectifier output routes through a control board before reaching the output clamps. Even with additional electronics like SCRs and regulation circuits, physically tracing the wiring remains the most reliable way to identify output polarity.

Why Charger Polarity Matters

Knowing your charger’s output polarity is critical when ordering replacement rectifiers or diodes. Positive output chargers and negative output chargers use different diode configurations, and installing the wrong type can result in charger failure, overheating, or improper battery charging.

Understanding polarity also helps technicians and DIY repairers:

• Diagnose failed rectifiers more accurately

• Understand current flow through the charging system

• Avoid installation mistakes during repairs

• Ensure compatibility with replacement components

A simple wiring check can prevent costly troubleshooting errors later in the repair process.
