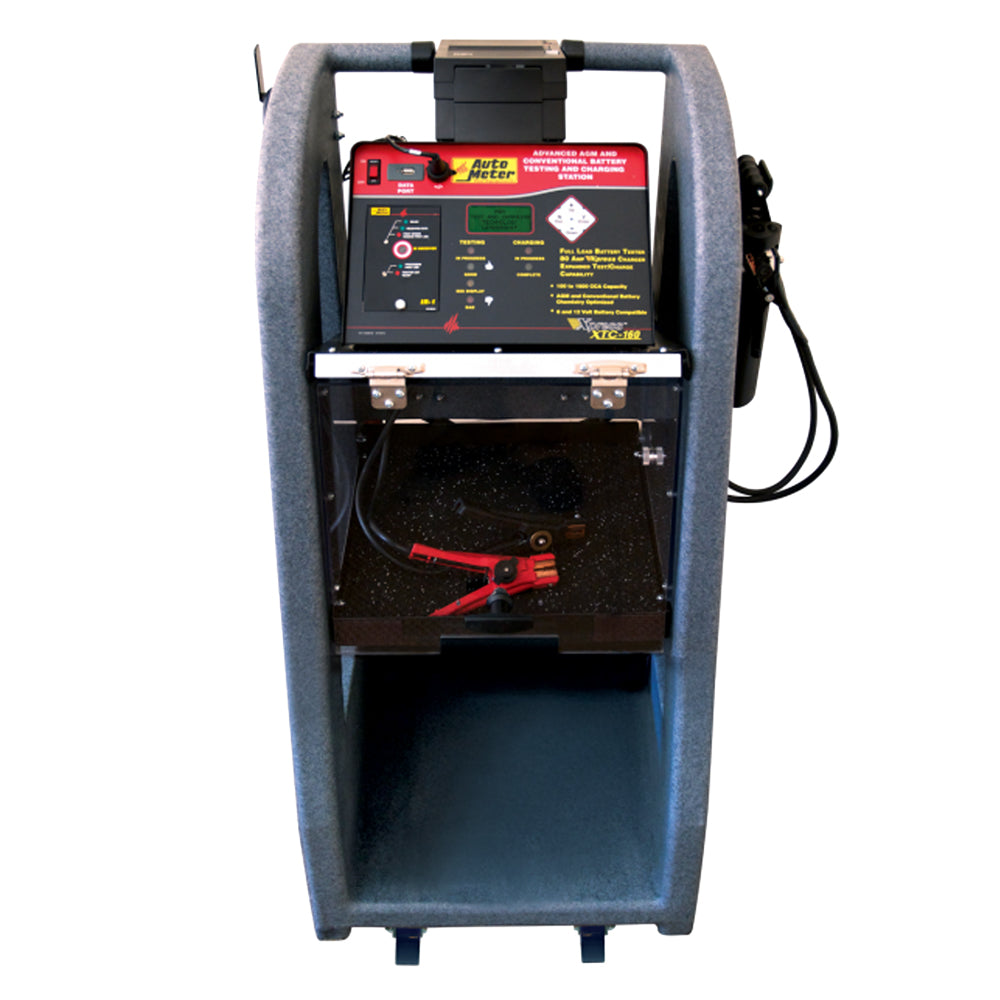

AutoMeter FAST-530 Electrical System Analyzer Combo with XTC-160, BVA-230, ES-11, PR-16, IR-1
Charger and Electrical System Testing Center Combo Includes:
- XTC-160 Fast Charge/Tester
- BVA-230 Hand-Held Battery and Electrical System Tester
- ES-11 Rolling Equipment Cart
- PR-16 High Speed Printer
- IR-1 Infrared Printer Interface for BVA-230 Printing
Features
- Stores previous test results - downloadable to computer with USB thumb drive or directly link to computer with dual USB connection.
- Tests flooded and AGM batteries as well as starting/charging circuits - also tests discharged batteries and detects bad cells.
- Advanced Digital Pulse Load (DPL) technology - patented test process and algorithm allowing operators of this product to rapidly measure a battery’s ability to provide adequate cranking power necessary to start the vehicle without the need for time consuming manual electrical system load tests.
- True-Load – This AutoMeter equipment is unique compared with other products on the market in that this tester has the ability to apply a known significant load (True-Load) directly through the tester connections allowing for a more rapid and accurate test of the vehicle’s battery, starter, and charging system by the operator. This provides the ultimate in accurate high-speed battery testing when paired with AutoMeter’s Advanced Digital Pulse Load technology process, reducing the margin of operator error and workload during the diagnosis.
- V-Drop Technology – this unique AutoMeter feature utilizes a patented process to automate the measurement of voltage drop in the charging circuit during starter engagement to ensure vehicle systems are operating at peak performance. This test occurs with minimal operator effort in the short period of time required for the engine to crank over and fire. AutoMeter’s V-Drop technology prevents the need to connect additional probes and/or disable ignition or fuel systems to engage in excessive engine crank periods. In the event that your AutoMeter tester equipped with V-Drop detects an issue, it will guide the operator through the diagnosis to identify which part of the circuit is causing the excessive voltage drop.
BVA-230 Overview
AutoMeter BVA-230 Professional Grade Intelligent Hand-Held 6V & 12V Electrical System Analyzer with 120 Amp Load
One of the most technologically advanced handheld testers currently available; the BVA-230 sets the bar for accuracy, speed and ease of use. Using our patented Digital Pulse Load™ technology to deliver a BCI compliant true load test, the BVA-230 can precisely diagnose the battery, starting and charging system in under 82 seconds. This unit is AGM optimized for compatibility with nearly all battery types. This adds up to a tester that in many cases delivers a superior test result to even traditional Carbon Pile testers. A convenient USB output allows test data to be displayed as an Excel™ spreadsheet for nearly unlimited storage capacity and data analysis as well as easy software updates. Featuring a menu system revised to eliminate extra steps, nearly anyone can pick up the unit and use it right out of the box. Enhanced customer communications and “next step” messages aid in diagnosis and enhance credibility.
- Best of Both Worlds - Accuracy via Patented Resistance & Load Test
- Tests 6V And 12V Flooded And AGM Batteries Rated 100-1600 CCA
- Tests Starting/Charging Circuits/Discharged Batteries/Bad Cells
- Measures Alternator Current Output/Voltage Regulation
- Measures Diode Ripple Delivering A Pass/Fail Result
- Fully Automated Load, Advanced Digital Pulse Load Technology
- Intuitive Menu Driven Operation, Requires Only A Single Technician
- Tests most battery and electrical systems - Flooded, AGM, Marine, AGM Marine
- CCA and AH battery tests
- Export data to PC memory for unlimited test results storage
- Automatically Stores Results Of Last 150 Completed Tests
- Optimized customer communication for faster/better interaction
- Wirelessly Communicates To Optional Test Results Printer
- Mini USB Port
- Easy-Link communication to PC via USB to optional AMP Link software (AC-62)
- Self Diagnostics for improved reliability
- Easily Upgraded
- Reverse polarity protected
- 64 Character backlit LCD screen
- Customer communication via optional USB PC cable or infrared printer
- Convenient clamp storage
For More BVA-230 Information and Specifications, Click Here
XTC-160 Overview
AutoMeter XTC-160 AGM Optimized Combination Fast Charger / Tester
The next generation of all-in-one battery charging and testing center is here. The fully automatic smart charger/tester is AGM optimized to safely and accurately charge and diagnose nearly all types of batteries. Using our patented microprocessor technology, the XTC-160 is fully automatic and is the fastest battery charger/tester of it's type, delivering accurate testing data in seconds and properly charging most batteries in under 30 minutes. There's even a status bar, so you know exactly how long the process will take.
Using patented Digital Pulse Load™ technology to deliver a BCI compliant true load test, you can be assured of the most accurate battery test on the market. Our exclusive Smart Clamp™ technology allows for easy connections to both top and side terminal batteries without use of adapters.
An integrated infrared temperature sensor allows for exacting precision in diagnosis. A convenient USB output allows test data to be displayed in an Excel™ spreadsheet for nearly unlimited storage capacity and data analysis as well as easy software updates. Featuring a menu system revised to eliminate extra steps, nearly anyone can properly operate the unite right out of the box. Enhanced customer communications and "next step" messages aid in diagnosis and enhance credibility. The XTC-160 is also compatible with the optional AC-14 printer for a truly all-in-one solution.
Features
- Fully automated and menu driven. There is no learning curve to safely operate the XTC-160. Simply connect the leads to the battery and follow the on-screen menus. Their is even a charging count down timer to let you and your customers know how long the battery needs to charge.
- A charging count down timer to let you and your customers know how long the battery will need to charge before being able to load test it.
- Utilizing AutoMeter's award winning digital pulse load technology and a significant 160 amp load, the XTC-160 delivers the industry's most accurate test results providing a clear assessment of each battery's state of health.
- The XTC-160 features advanced digital technology to control all testing and charging functions. We have taken the guess work out of battery testing and charging. The XTC-160 can also export your testing data to excel file via USB port, or file into your store's POS System via our POSI-160 hub or through any internet enabled device via AutoMeter's exclusive AMPNET cloud data management services.
- The XTC-160 can export your testing data to excel file via USB port.
- New data export feature to USB flash drive for unlimited test results storage.
- The XTC-160 is specifically designed to accurately test and charge AGM batteries through the use of a proprietary algorithm and the industry's highest precision charging circuitry. We worked for years with the leading AGM battery manufacturers around the world to perfect the technology that drives the award winning XTC-160.
- Easy-Link communication to PC via USB.
For More XTC-160 Information and Specifications, Click Here
ES-11 Overview
AutoMeter ES-11 Deluxe Heavy-Duty Equipment Cart with Front Casters and Bottom Compartment
For Use with BVA-36/2, BVA-2100, XTC-160
Dimensions: 20.75" x 45.5" x 18.75"
Weight: 55 lbs
Warranty: 12 Months
PR-16 Overview
AutoMeter PR-16 High Speed 80 mm Thermal Printer for XTC-160 (FAST-530, FAST-530HD Carts)
- For use with the XTC-160
- Built in power supply
- Uses standard 80 mm thermal paper
- Easy load paper
- Dimensions: 6" x 4.5" x 3.5"
- Warranty: 12 Months
IR-1 Overview
AutoMeter IR-1 Modular Internal Infra-Red Printer Receiver
For Use with XTC-160
Installs into the front panel and allows direct printing from the XTC-160 to a high speed PR-16 printer without the need of a POSI-160. Includes an IR receiver to accept print jobs from a BVA-230, BVA-260 and all hand-held testers.
Warranty: 12 Months
