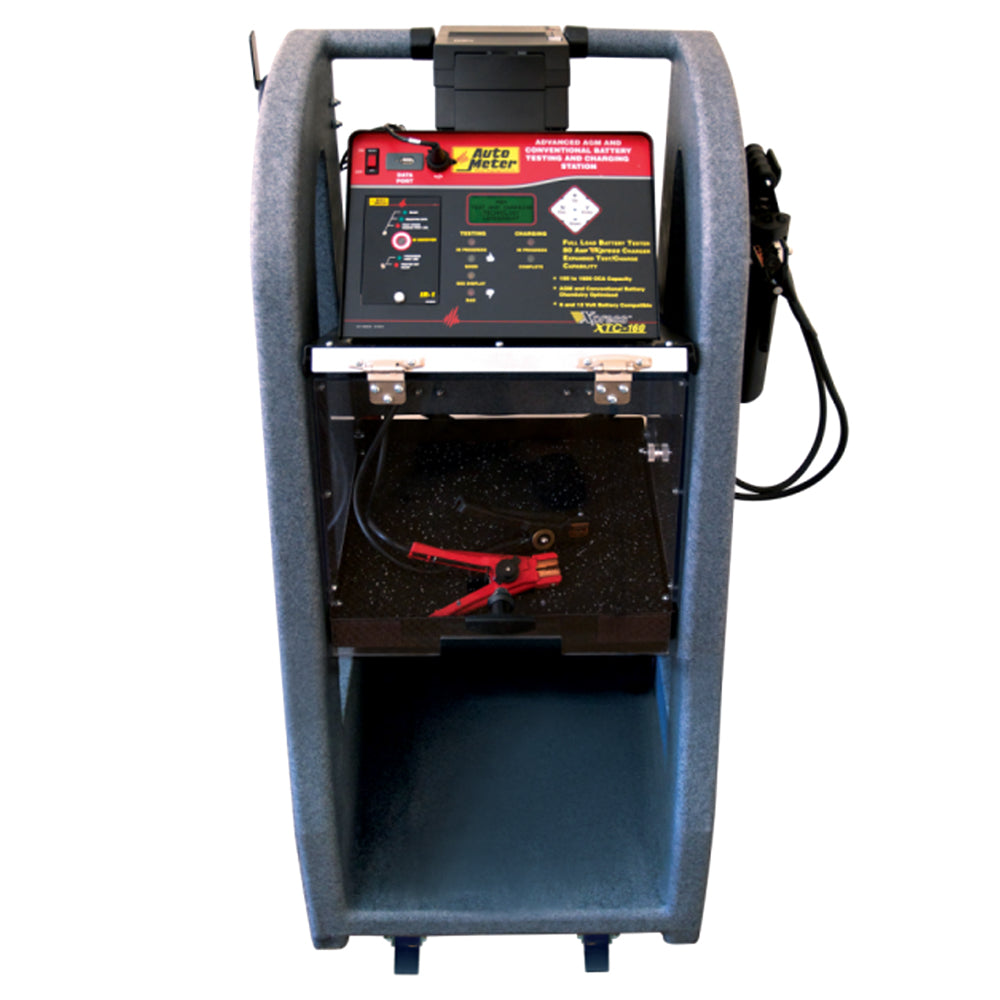

AutoMeter FAST-530HD HD Electrical System Analyzer Combo with XTC-160, BCT-200J, ES-11, PR-16, IR-1
Heavy-Duty Charger and Electrical System Testing Center Combo Includes:
- XTC-160 Fast Charge/Tester
- BCT-200J Hand-Held Battery and Electrical System Tester
- ES-11 Rolling Equipment Cart
- PR-16 High Speed Printer
- IR-1 Infrared Printer Interface for BCT-200J Printing
Features
- Stores previous test results - downloadable to computer with USB thumb drive or directly link to computer with dual USB connection.
- Tests flooded and AGM batteries as well as starting/charging circuits - also tests discharged batteries and detects bad cells.
- Advanced Digital Pulse Load (DPL) technology - patented test process and algorithm allowing operators of this product to rapidly measure a battery’s ability to provide adequate cranking power necessary to start the vehicle without the need for time consuming manual electrical system load tests.
- True-Load – This AutoMeter equipment is unique compared with other products on the market in that this tester has the ability to apply a known significant load (True-Load) directly through the tester connections allowing for a more rapid and accurate test of the vehicle’s battery, starter, and charging system by the operator. This provides the ultimate in accurate high-speed battery testing when paired with AutoMeter’s Advanced Digital Pulse Load technology process, reducing the margin of operator error and workload during the diagnosis.
- V-Drop Technology – this unique AutoMeter feature utilizes a patented process to automate the measurement of voltage drop in the charging circuit during starter engagement to ensure vehicle systems are operating at peak performance. This test occurs with minimal operator effort in the short period of time required for the engine to crank over and fire. AutoMeter’s V-Drop technology prevents the need to connect additional probes and/or disable ignition or fuel systems to engage in excessive engine crank periods. In the event that your AutoMeter tester equipped with V-Drop detects an issue, it will guide the operator through the diagnosis to identify which part of the circuit is causing the excessive voltage drop.
BCT-200J Overview
AutoMeter BCT-200J Intelli-Check II Heavy Duty Truck Electrical System Analyzer
Professional grade, fully automatic electrical system tester specifically designed for diagnosing heavy-duty batteries and electrical systems.
The BCT-200J utilizes AutoMeter's advanced preventative maintenance testing mode to quickly check the battery and starting/charging system for any failures, saving time and money. Designed and optimized for deep cycle and starting batteries, flooded and AGM. DIN Connector serial port communication.
Designed for the heavy-duty industry where accuracy is extremely important. Advanced DPL Technology is used for battery testing, including a battery bank test, to shorten the battery test procedure. Firmware includes AutoMeter's innovative automated-voltage drop test and J1708 information retrieval. This tester stores the last 120 tests which can be retrieved on its LCD display, printed to the optional infrared printer, or downloaded to a personal computer with the AC-10 PC adapter cable.
- Designed for and used exclusively by heavy-duty truck and off-road equipment technicians
- Tests flooded and AGM batteries and starting/charging circuits
- Compatible with 24v charging and starting systems
- Tests control circuit
- Will test up to four batteries at one time
- Patented automated voltage drop test
- Optional cables for J1708 communication
- Advanced Digital Pulse Load battery technology
- Quickly identify the real electrical issues
- Included external volt leads and AC-27 alternator adapters
- Reverse polarity protected
- New simplified preventative maintenance testing option
- New AGM optimized battery testing option
For More BCT-200J Information and Specifications, Click Here
XTC-160 Overview
AutoMeter XTC-160 AGM Optimized Combination Fast Charger / Tester
The next generation of all-in-one battery charging and testing center is here. The fully automatic smart charger/tester is AGM optimized to safely and accurately charge and diagnose nearly all types of batteries. Using our patented microprocessor technology, the XTC-160 is fully automatic and is the fastest battery charger/tester of it's type, delivering accurate testing data in seconds and properly charging most batteries in under 30 minutes. There's even a status bar, so you know exactly how long the process will take.
Using patented Digital Pulse Load™ technology to deliver a BCI compliant true load test, you can be assured of the most accurate battery test on the market. Our exclusive Smart Clamp™ technology allows for easy connections to both top and side terminal batteries without use of adapters.
An integrated infrared temperature sensor allows for exacting precision in diagnosis. A convenient USB output allows test data to be displayed in an Excel™ spreadsheet for nearly unlimited storage capacity and data analysis as well as easy software updates. Featuring a menu system revised to eliminate extra steps, nearly anyone can properly operate the unite right out of the box. Enhanced customer communications and "next step" messages aid in diagnosis and enhance credibility. The XTC-160 is also compatible with the optional AC-14 printer for a truly all-in-one solution.
Features
- Fully automated and menu driven. There is no learning curve to safely operate the XTC-160. Simply connect the leads to the battery and follow the on-screen menus. Their is even a charging count down timer to let you and your customers know how long the battery needs to charge.
- A charging count down timer to let you and your customers know how long the battery will need to charge before being able to load test it.
- Utilizing AutoMeter's award winning digital pulse load technology and a significant 160 amp load, the XTC-160 delivers the industry's most accurate test results providing a clear assessment of each battery's state of health.
- The XTC-160 features advanced digital technology to control all testing and charging functions. We have taken the guess work out of battery testing and charging. The XTC-160 can also export your testing data to excel file via USB port, or file into your store's POS System via our POSI-160 hub or through any internet enabled device via AutoMeter's exclusive AMPNET cloud data management services.
- The XTC-160 can export your testing data to excel file via USB port.
- New data export feature to USB flash drive for unlimited test results storage.
- The XTC-160 is specifically designed to accurately test and charge AGM batteries through the use of a proprietary algorithm and the industry's highest precision charging circuitry. We worked for years with the leading AGM battery manufacturers around the world to perfect the technology that drives the award winning XTC-160.
- Easy-Link communication to PC via USB.
For More XTC-160 Information and Specifications, Click Here
ES-11 Overview
AutoMeter ES-11 Deluxe Heavy-Duty Equipment Cart with Front Casters and Bottom Compartment
For Use with BVA-36/2, BVA-2100, XTC-160
Dimensions: 20.75" x 45.5" x 18.75"
Weight: 55 lbs
Warranty: 12 Months
PR-16 Overview
AutoMeter PR-16 High Speed 80 mm Thermal Printer for XTC-160 (FAST-530, FAST-530HD Carts)
- For use with the XTC-160
- Built in power supply
- Uses standard 80 mm thermal paper
- Easy load paper
- Dimensions: 6" x 4.5" x 3.5"
- Warranty: 12 Months
IR-1 Overview
AutoMeter IR-1 Modular Internal Infra-Red Printer Receiver
For Use with XTC-160
Installs into the front panel and allows direct printing from the XTC-160 to a high speed PR-16 printer without the need of a POSI-160. Includes an IR receiver to accept print jobs from a BVA-230, BVA-260 and all hand-held testers.
Warranty: 12 Months
