Power Forged Battery Charger Switch Kit - 8-Position Replaces Associated Eqpt 611187

$22.95
SKU 697015

Notify me when back in stock

Battery Charger Switch Kit - 8-Position Replaces Associated Eqpt 611187
4 "ON and 4 "OFF" positions - "ON" positions are at 12, 3, 6, and 9 o'clock. The intermediate positions at 1:30, 4:30, 7:30 and 10:30 are "OFF" positions.
This switch is a direct replacement for the 611187 rotary switch found on most models of Associated Eqpt chargers (6001, 6001A, 6002, 6002B, 6009, 6009A, 6010, 6010B, etc.). It is EXACTLY the same switch offered as Associated PN 611187, at less than half the cost.
Designed to be easy to install through a 7/16" stem-mounting hole. Wire terminals use .250" industry-standard solderless push-on connectors. No specialty tools required.

Specifications
• .250" Push-on connectors.
• Switch body - 1.67"H x 1.67"W x 1.00"D
• Stem - .80"L x 6MM (.236") Dia with flat
• 7/16"-20 Threaded Sleeve Mount with Indexing Tabs to prevent rotation

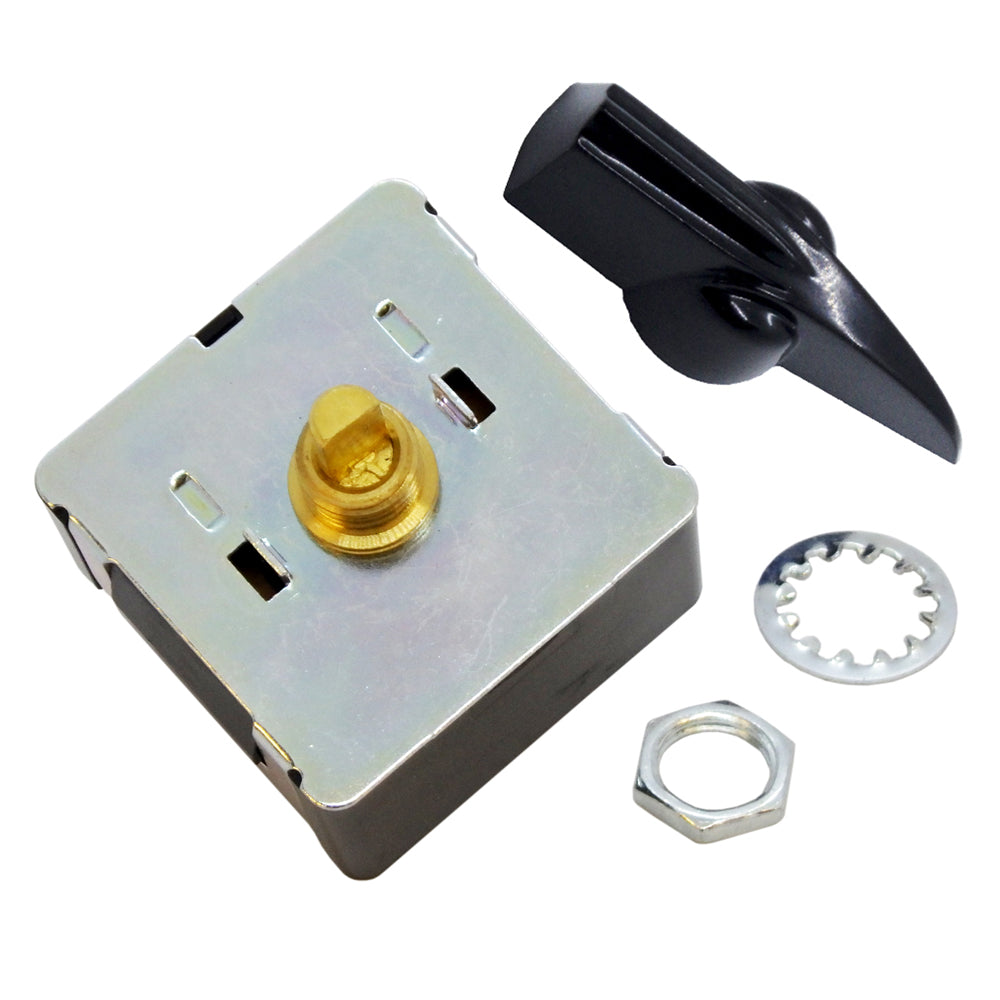

Contents
• 8-position rotary switch.
• Pointer-style knob with set screw.
• Mounting nut & lock washer.
• Instruction sheet.
