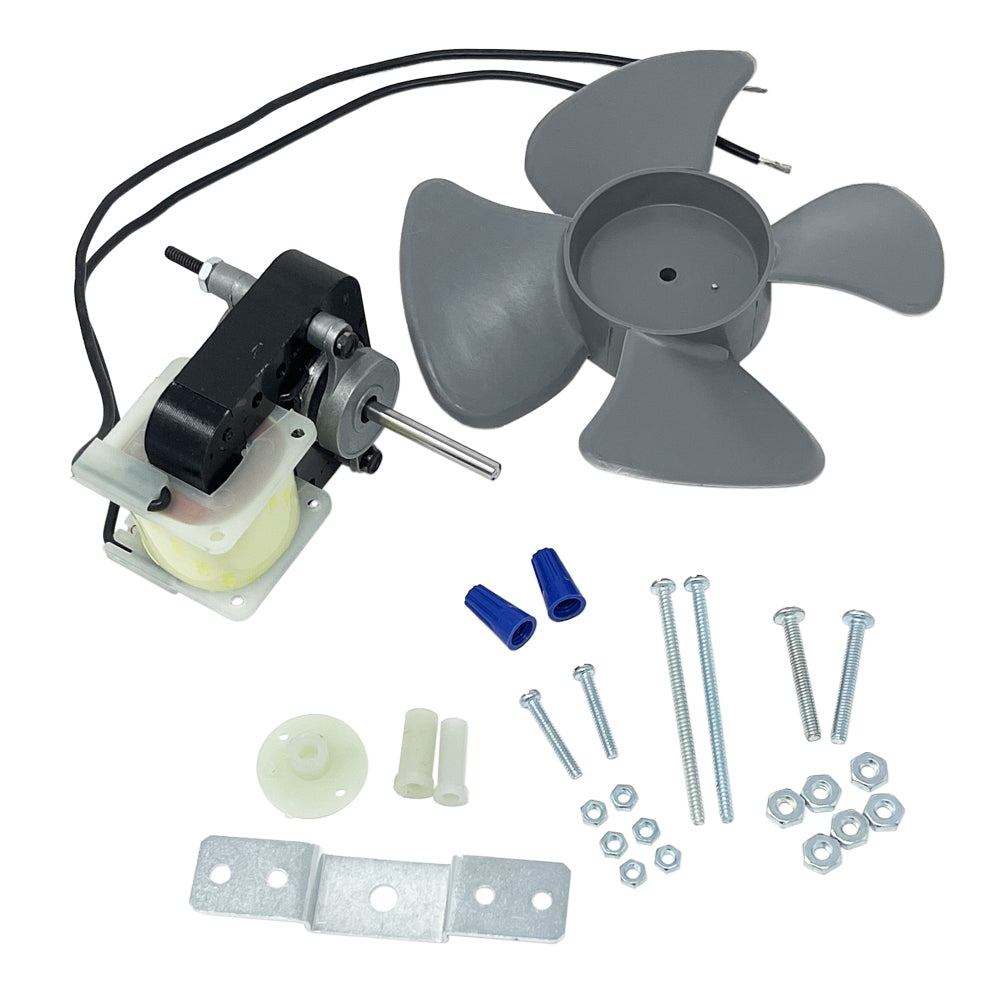

696021 - Universal AC Cooling Fan Kit - Includes Motor, Fan Blade & Mounting Hardware Replaces Associated Eqpt 610190
696021 - Universal AC Cooling Fan Kit for Battery Chargers - Includes Motor, Fan Blade & Mounting Hardware Replaces Associated Eqpt 610190
This universal kit can be used to replace the cooling fan in virtually any battery charger that requires fan cooling of the rectifier and/or transformer, including models from Schumacher, Century, Solar, and Associated Eqpt. Replaces fan PN 610190 in Associated 6001, 6002, 6009, 6010, etc., and other brands manufactured by Associated, such as Mac Tools, MATCO, Cornwell, NAPA, and Snap-On.
Motor Specifications
• Input Voltage: 115VAC, 50/60Hz
• Current Draw: 0.43 Amp
• AC Lead Length: 12 in
• RPM: 3000
• Shaft Dia: 3/16"
• Mounting Method: 1.875" OC Studs (#6-32)
• Weight: 1.5 lbs
• Includes Mounting Hardware
Blade Specifications
• Material: plastic
• # Blades: 4
• Diameter: 5.5" OD
• Fitment: press-on (no special tools required)
• Rotation: CCW (fan blows AWAY from motor, mount fan blade with metal clip AWAY from motor)
Replaces:
• Associated 610190
• Century/Solar 216-033-666, 216-041-010, 216-041-666
• Marquette 44200006, 442-00006
• Schumacher 0099000063, 0099-000063
• Snap-On 2-10166-1
