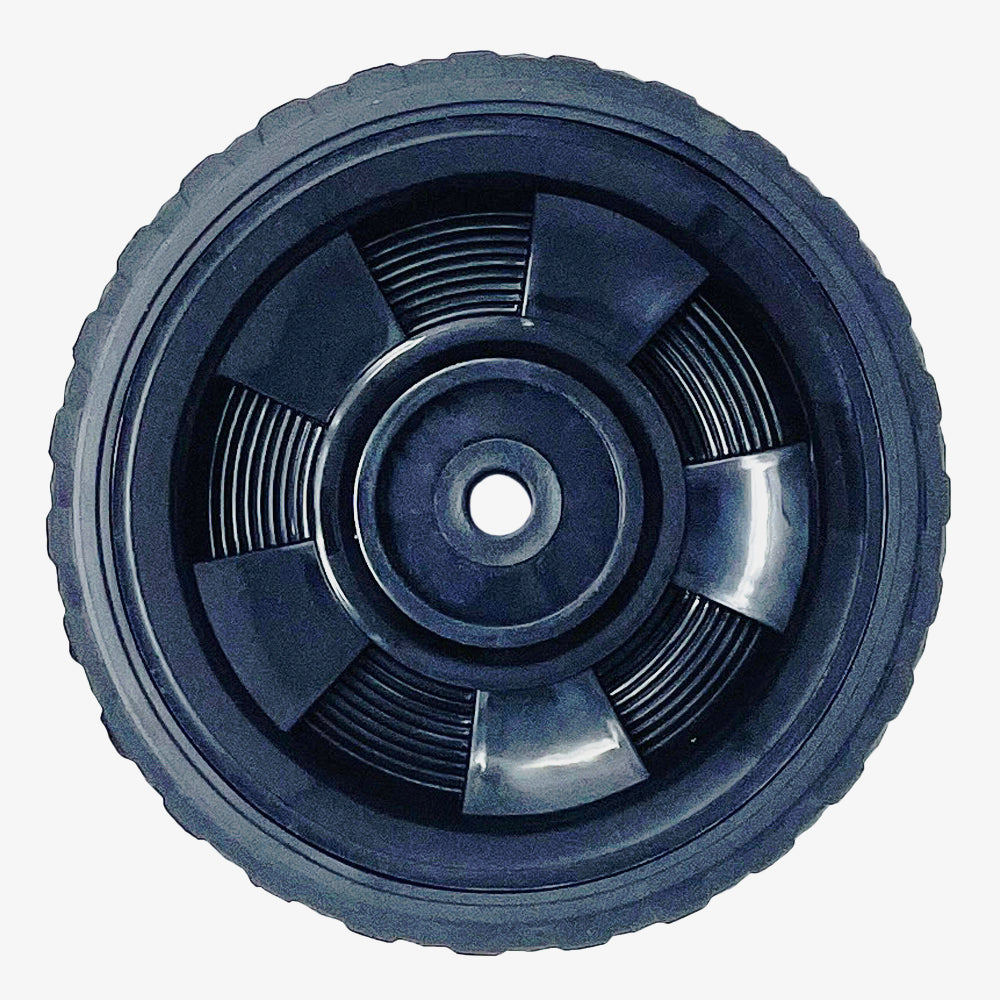

696562 - Wheel, 6" Black Plastic w/ Diamond Rubber Tread for Battery Chargers, 3/8" axle shaft
6" Black Plastic Wheel w/ Diamond Rubber Tread - 3/8" axle bore. 1.5" wide Diamond Rubber Tread. Designed to fit 3/8" axle shaft. For battery chargers with 3/8" axle shaft. Also used on barbecue grills and other light equipment, check dimensions for proper fit. Each, bulk packaged.
For set of two wheels and two press-fit axle caps, see 696563.
For axle caps only, see 609081.
Specifications
Load Rating: 35 lbs.
Material: Plastic with Diamond Rubber Tread
Weight: .5 lb. (each wheel)
Color: Black Outside Diameter: 5.94" (150mm)
Track Width: 1.40" (36mm)
Hub Offset (spaces wheel tread from cabinet): 0.40" (10mm)
Hub Width at Axle Tube (length of bore): 1.45" (37mm)
Axle Bore Diameter: 0.40" (10.2mm) (accommodates 3/8" or 10mm diameter axle)
Warranty: 90 Day Limited Warranty against manufacturing defects.
INSTALLATION NOTE
PLEASE NOTE THE 35 LB LOAD RATING ON THIS WHEEL. DO NOT INSTALL ON 2-WHEEL EQUIPMENT THAT WEIGHS OVER 70 LBS. USE ONLY SMOOTH AXLE SHAFTS - DO NOT USE THREADED ROD OR UNDERSIZE AXLES.
