696563 - 2 Wheel Kit, 6" Black Plastic w/Diamond Rubber Tread - 3/8" Axle Shaft, includes Axle Caps

$13.95
SKU 696563

Notify me when back in stock

Wheel Kit, 2 - 6" Black Plastic Wheels w/ Rubber Tread - 3/8" axle shaft, includes Axle Caps

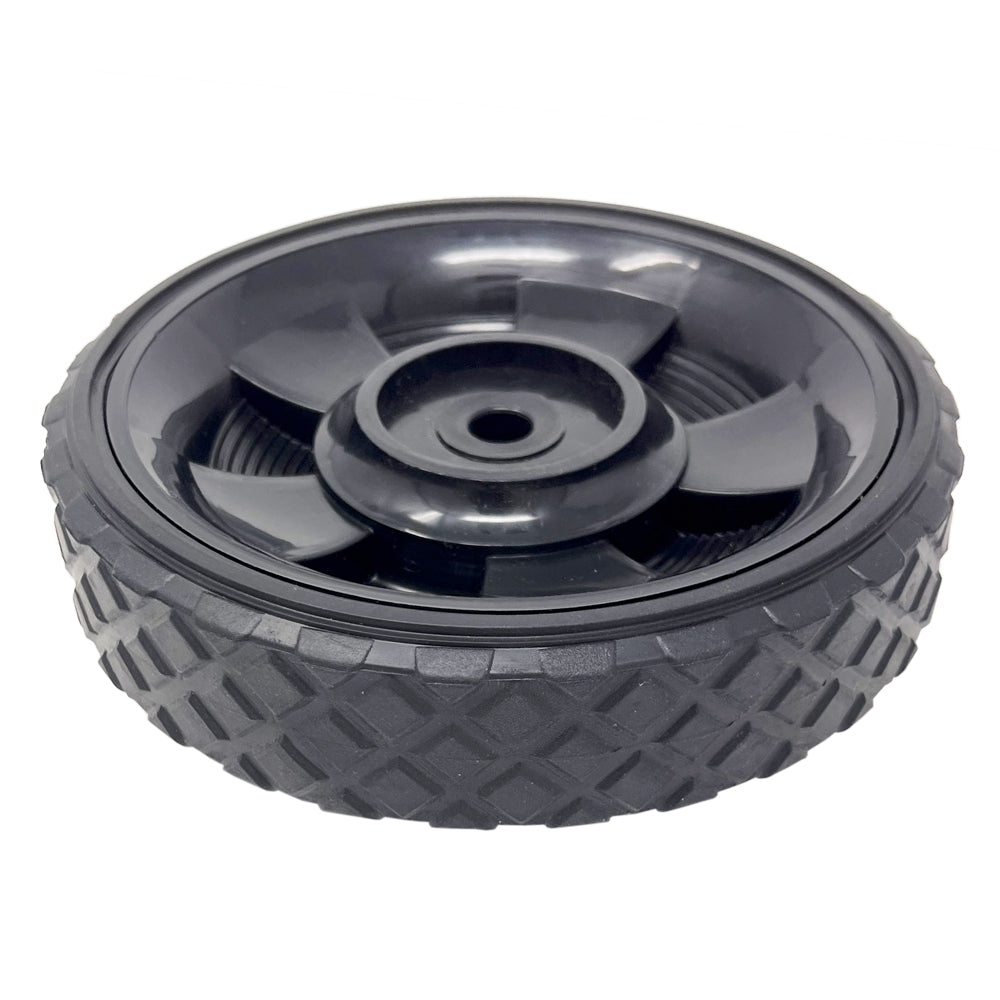

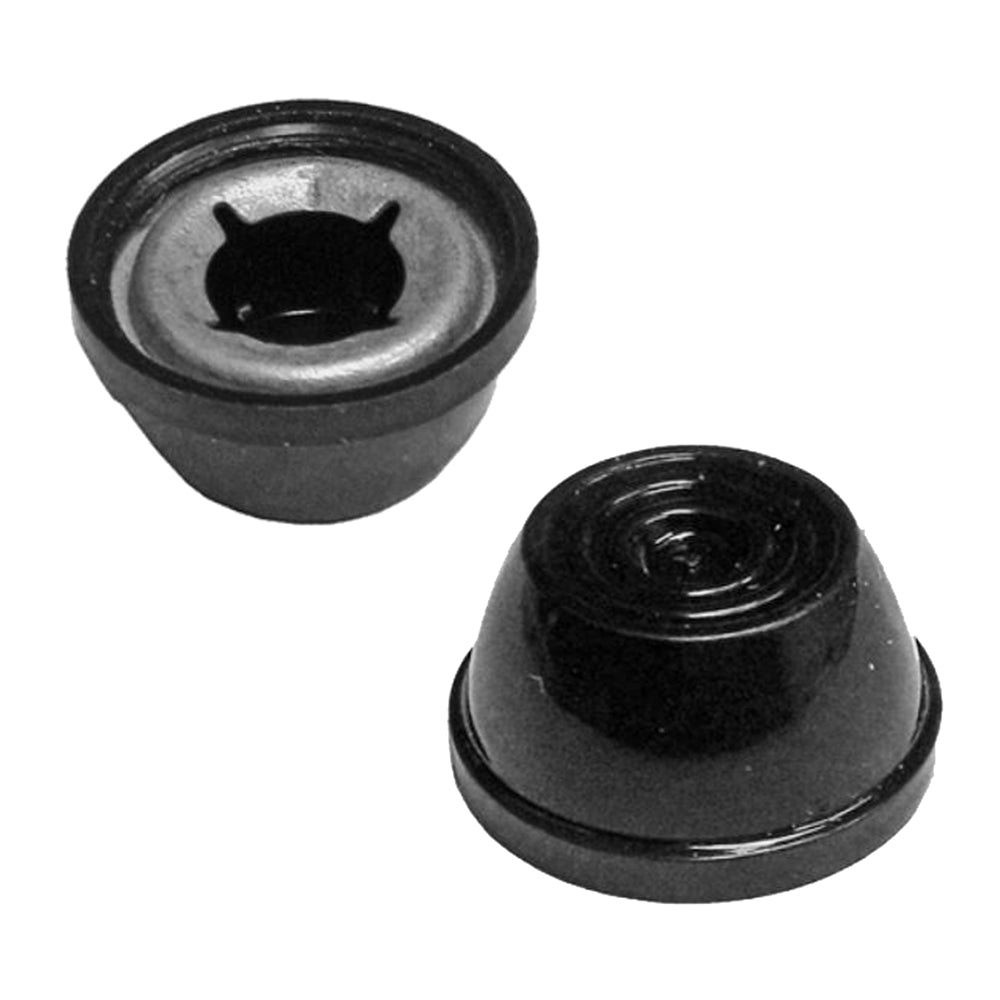

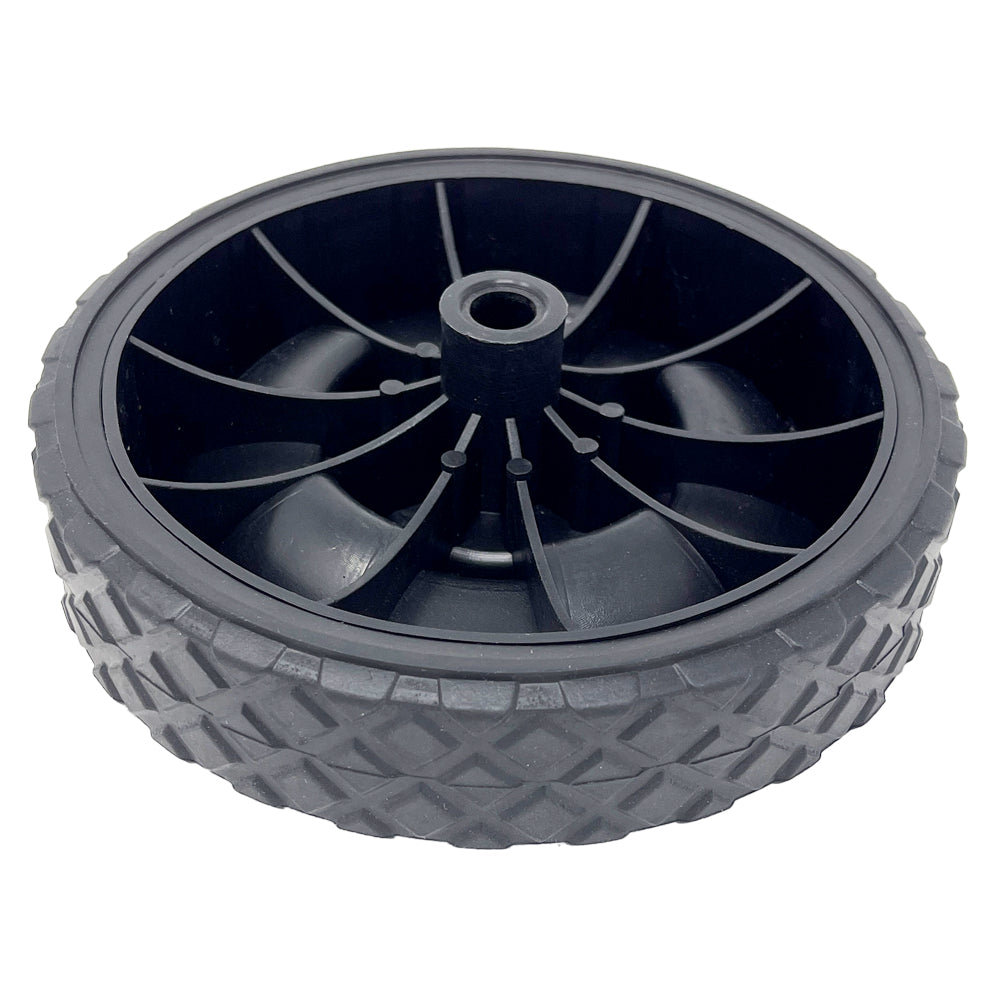

Wheel Kit includes 1 pair of 6" Black Plastic Wheels with 1.5" wide Rubber Diamond Tread, 3/8" axle bore. Also includes 2 Push-On 3/8" Decorative Black Plastic Pal Nuts, designed to fit 3/8" axle shaft. Axle caps are press-on fit, no special tools required. For battery chargers with 3/8" axle shaft. Also used on barbecue grills and other light equipment, check dimensions for proper fit.

Replaces these original equipment wheel sets:
Associated 611157 (used on Associated charger models 6006, 6068, 6007A, 6007B, 6009B, ESS6007B, ESS6008, ESS6008MSK, ESS6011, IBC6008)
NOTE: Can be used as a heavy-duty upgrade from wheel kits Associated 605672 or Power Forged 696561.
Marquette 62964319
Schumacher 0099-000080, 0099000080, 0099-000226, 0099000226

For wheel only, see 696562.
For axle caps only, see 609081.

Specifications

Load Rating: 35 lbs.
Material: Plastic with Diamond Rubber Tread
Weight: .5 lb. (each wheel)

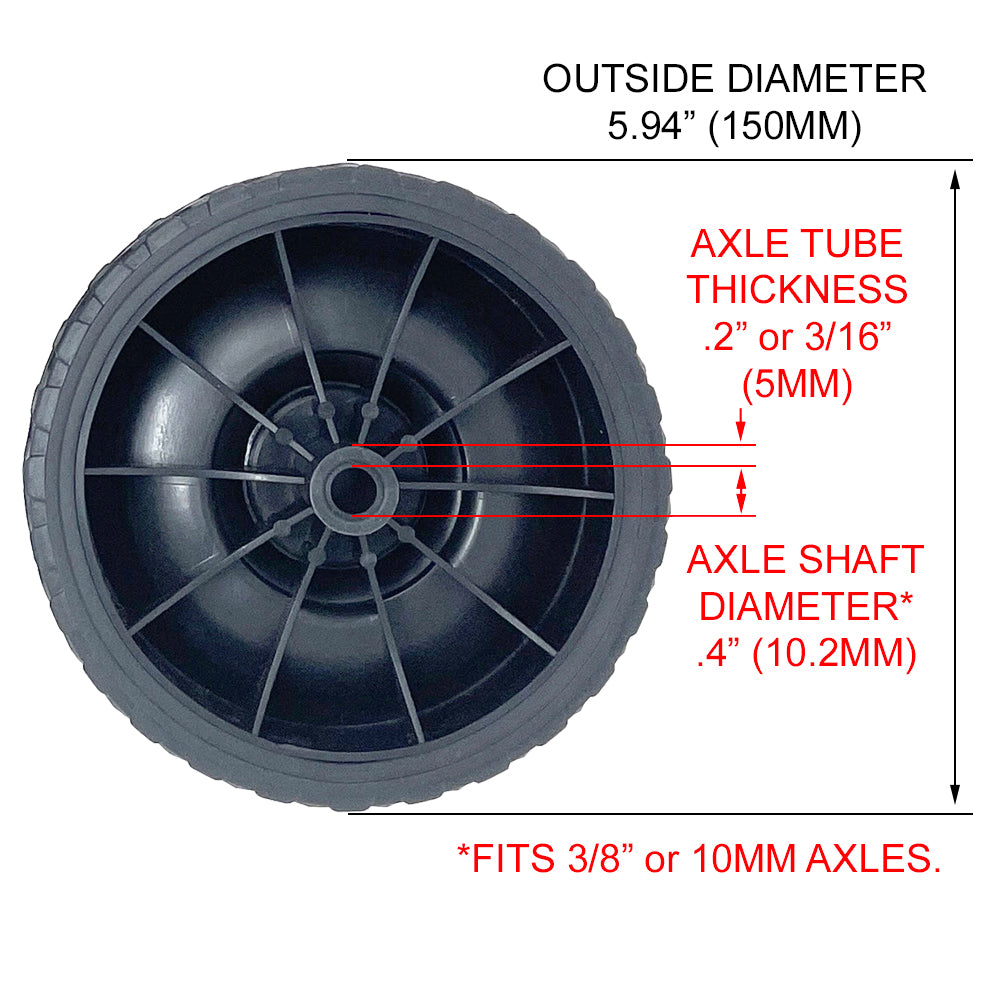

Color: Black Outside Diameter: 5.94" (150mm)

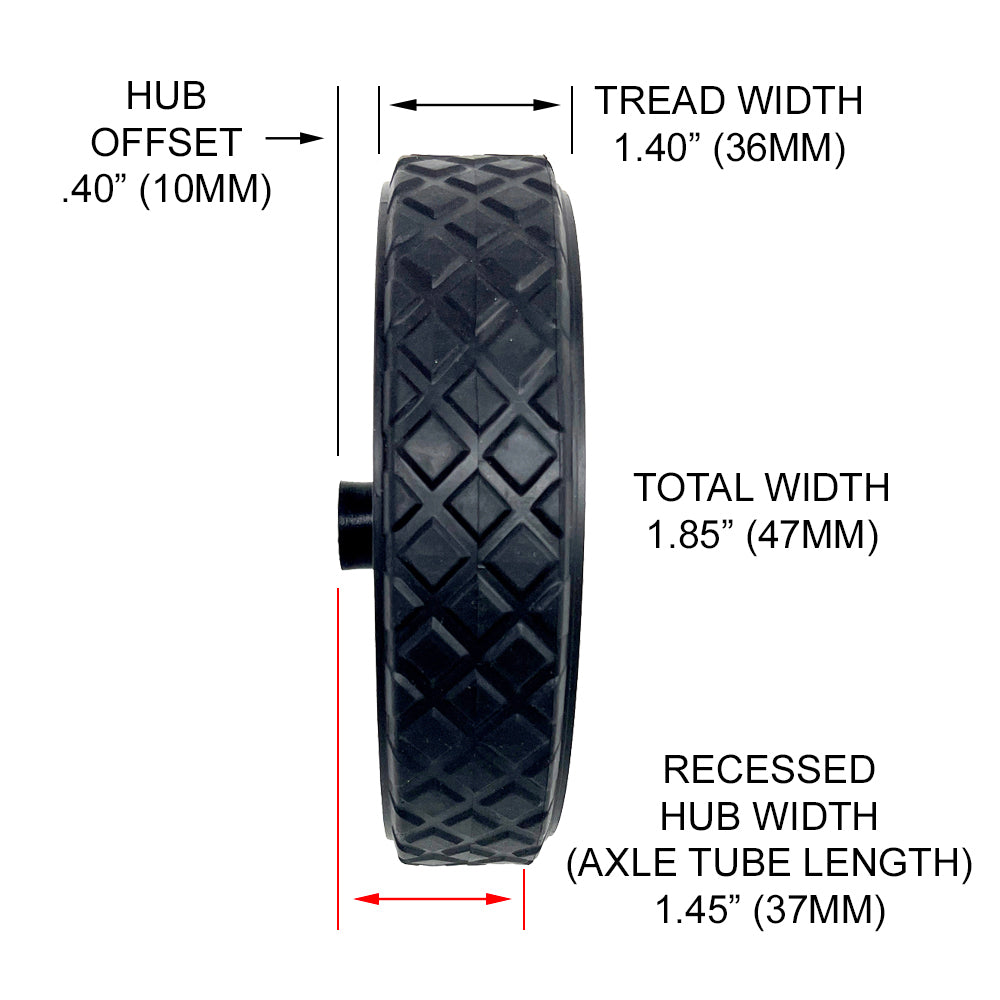

Track Width: 1.40" (36mm)
Hub Offset (spaces wheel tread from cabinet): 0.40" (10mm)
Hub Width at Axle Tube (length of bore): 1.45" (37mm)
Axle Bore Diameter: 0.40" (10.2mm) (accommodates 3/8" or 10mm diameter axle)
Warranty: 90 Day Limited Warranty against manufacturing defects.

INSTALLATION NOTE

PLEASE NOTE THE 35 LB LOAD RATING ON THIS WHEEL. DO NOT INSTALL ON 2-WHEEL  EQUIPMENT THAT WEIGHS OVER 70 LBS. USE ONLY SMOOTH AXLE SHAFTS - DO NOT USE THREADED ROD OR UNDERSIZE AXLES.

Related Items

609080 - Axle Cap Nut, Push-On 3/8" Steel - EA
609081 - Axle Cap Nut, Push-On 3/8" Decorative Black Plastic Pal Nut - EA
696560 - Wheel, 6" Black Hollow Plastic for Battery Chargers, fits 3/8" axle shaft
696561 - 2 Wheel Kit, 6" Black Hollow Plastic w/ Retainers, for Battery Chargers, 3/8" axle shaft
696562 - Wheel, 6" Black Plastic w/ Diamond Rubber Tread for Battery Chargers, 3/8" axle shaft
696563 - 2 Wheel Kit, 6" Black Plastic w/Diamond Rubber Tread - 3/8" Axle Shaft, includes Axle Caps
696564 - Wheel, 7" Black Plastic w/ Diamond Rubber Tread for Battery Chargers, 3/8" axle shaft
696565 - 2 Wheel Kit, 7" Black Plastic w/Diamond Rubber Tread - 3/8" Axle Shaft, includes Axle Caps
