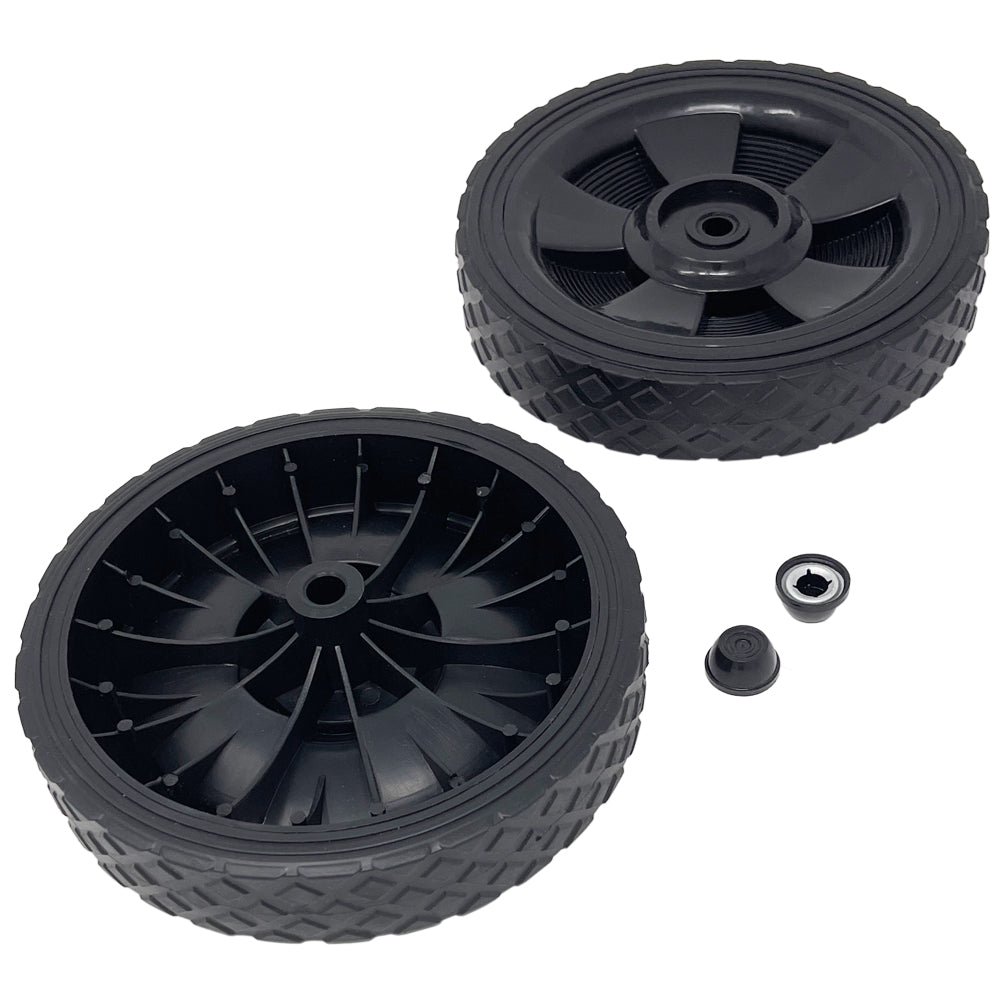

696565 - 2 Wheel Kit, 7" Black Plastic w/Diamond Rubber Tread - 3/8" Axle Shaft, includes Axle Caps
Wheel Kit, 2 - 7" Black Plastic Wheels w/ Rubber Tread - 3/8" axle shaft, includes Axle Caps

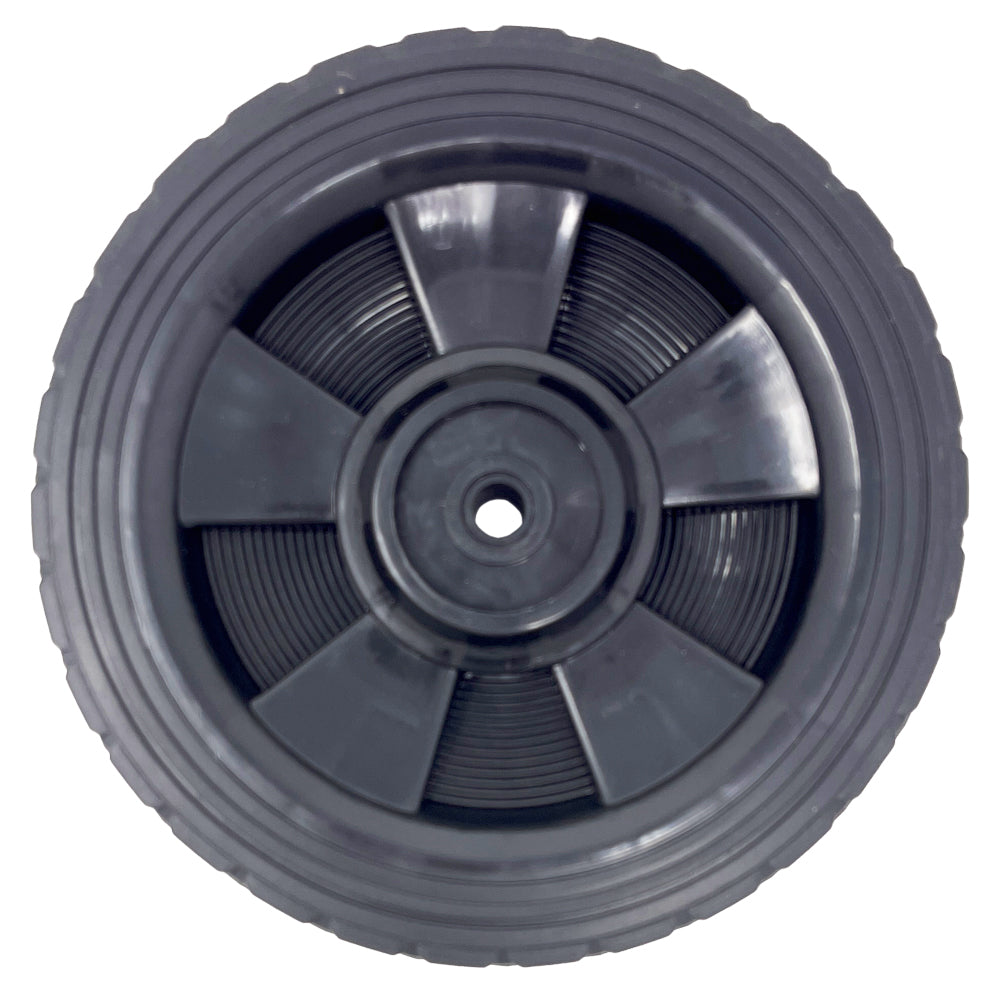

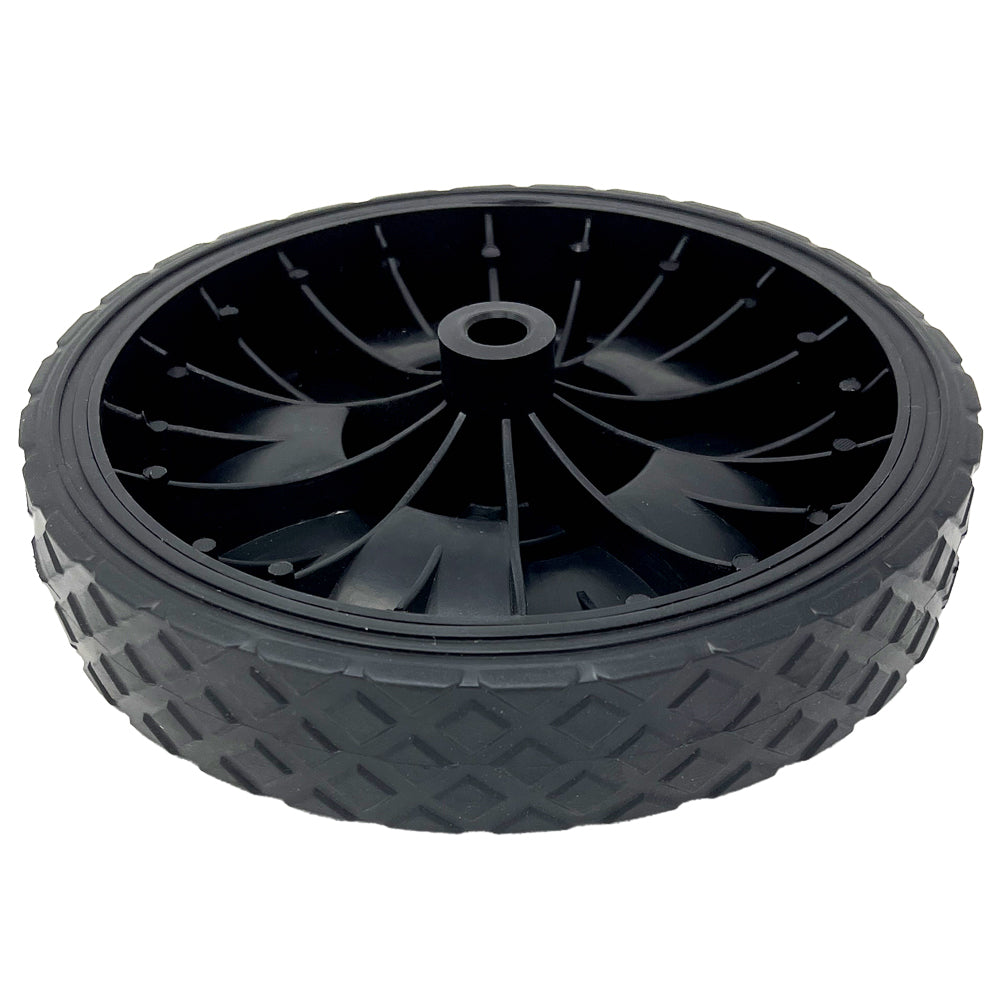

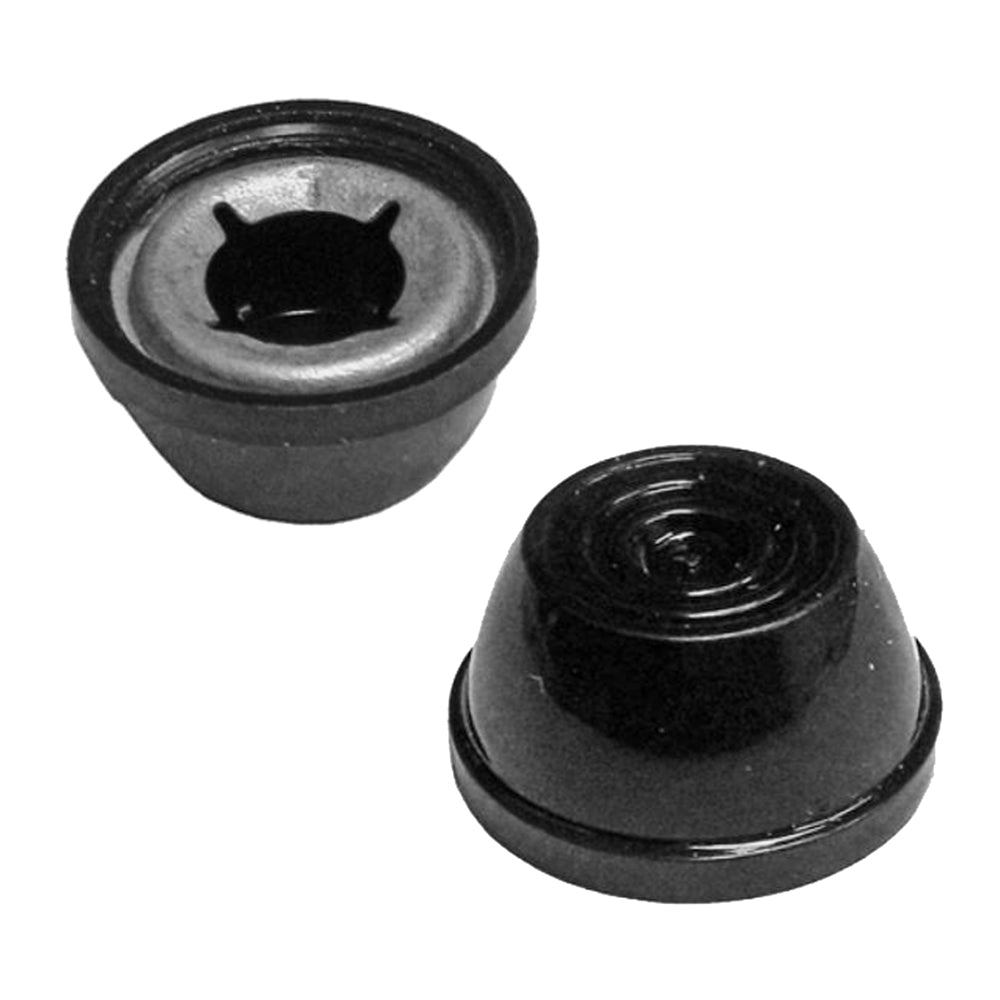

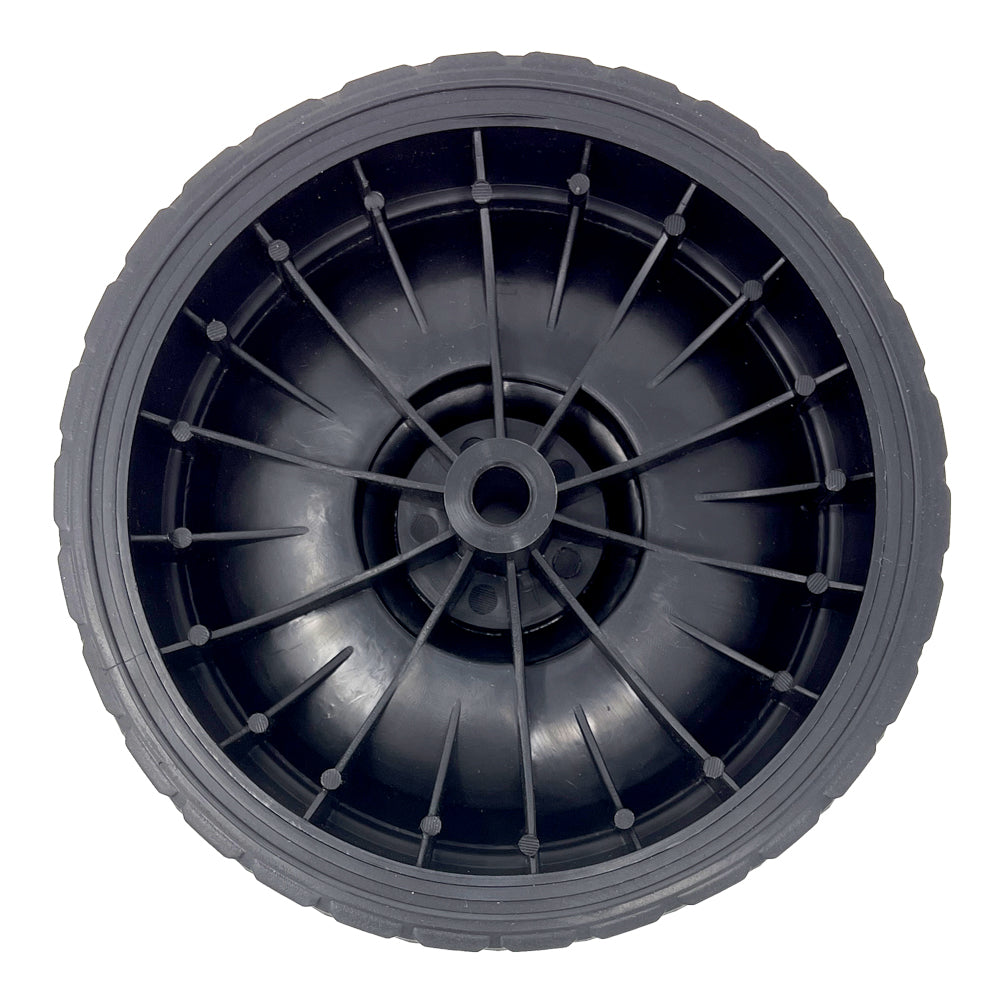

Wheel Kit includes 1 pair of 7" Black Plastic Wheels with 1.5" wide Rubber Diamond Tread, 3/8" axle bore. Also includes 2 Push-On 3/8" Decorative Black Plastic Pal Nuts, designed to fit 3/8" axle shaft. Axle caps are press-on fit, no special tools required. For battery chargers with 3/8" axle shaft. Also used on barbecue grills and other light equipment, check dimensions for proper fit.
Replaces these original equipment wheel sets:
Associated 605184, 610091, 610553 (used on Associated charger models 6001, 6001A, 6002, 6002A, 6002B, 6027B, 6127)
Schumacher 0099-000120, 0099000120, 0099-000471, 0099000471
For wheel only, see 696564.
For axle caps only, see 609081.
Specifications
Load Rating: 35 lbs.
Material: Plastic with Diamond Rubber Tread
Weight: .7 lb. (each wheel)

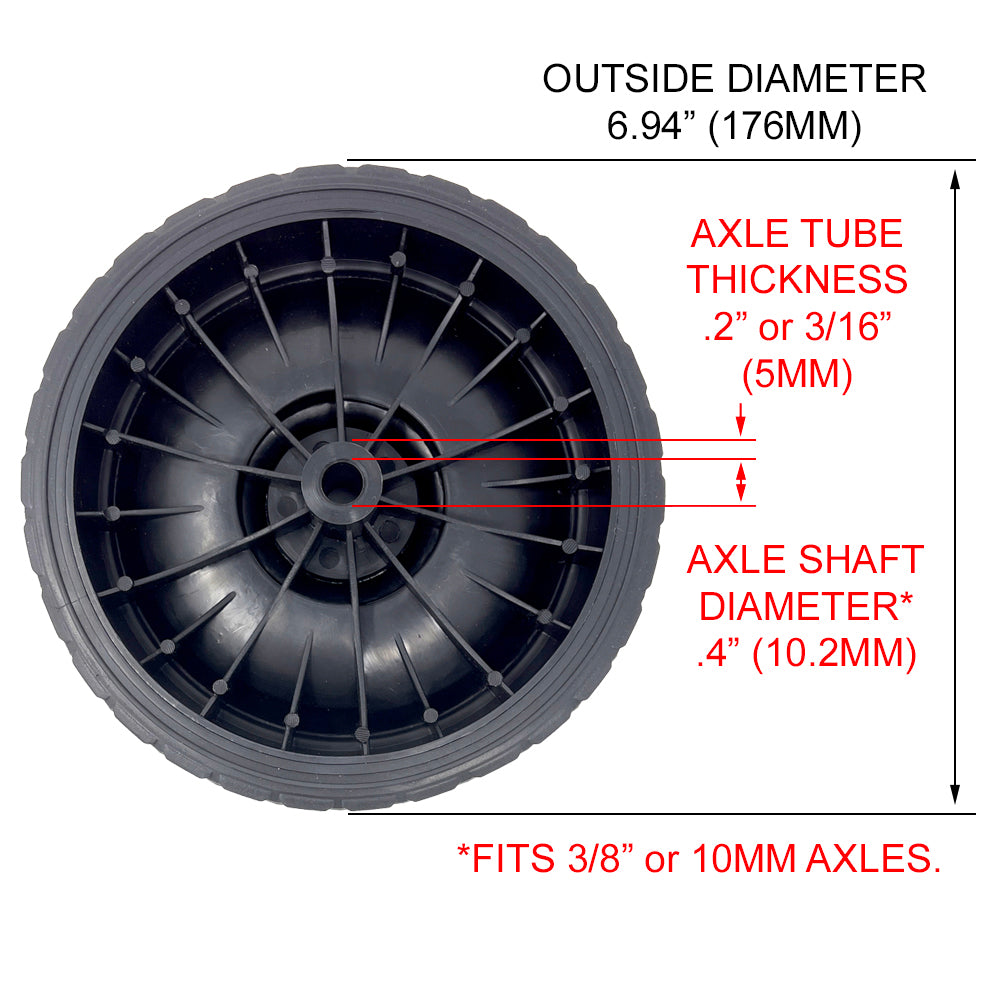

Color: Black Outside Diameter: 6.94" (150mm)

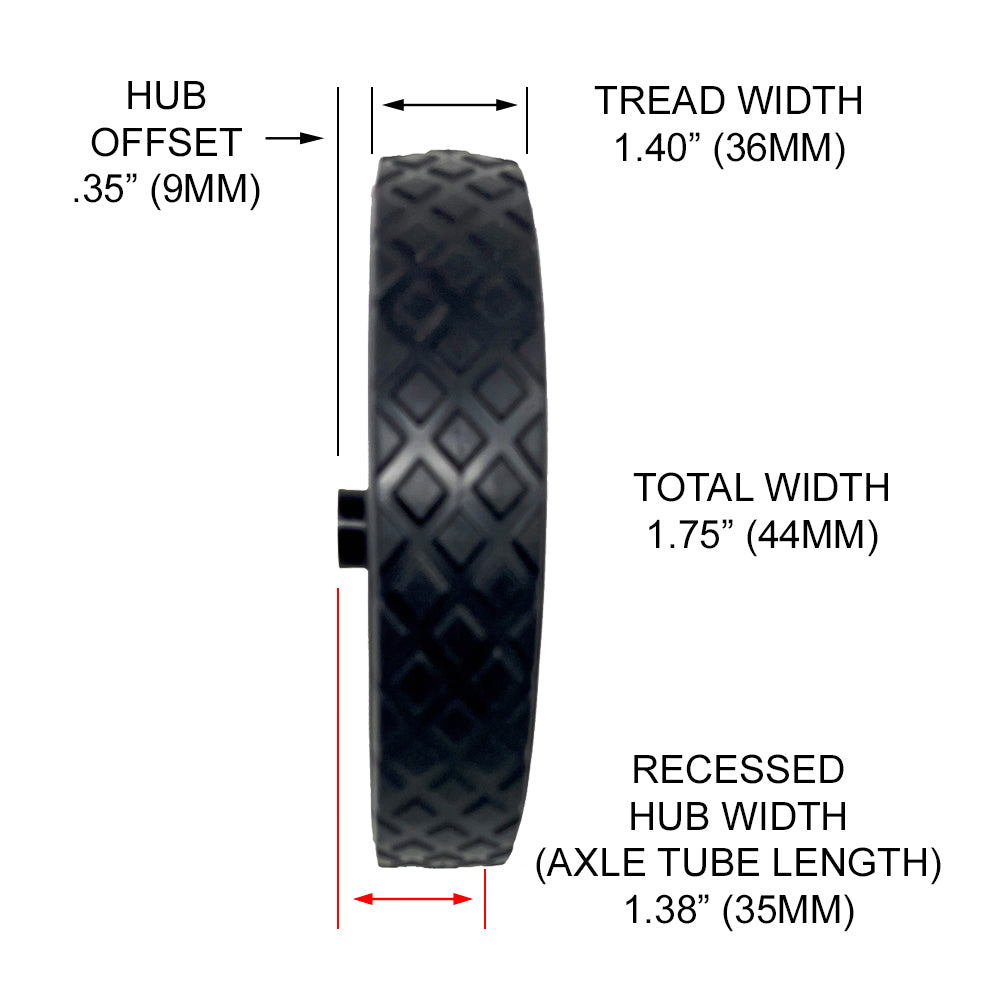

Track Width: 1.40" (36mm)
Hub Offset (spaces wheel tread from cabinet): 0.35" (9mm)
Hub Width at Axle Tube (length of bore): 1.38" (35mm)
Axle Bore Diameter: 0.40" (10.2mm) (accommodates 3/8" or 10mm diameter axle)
Warranty: 90 Day Limited Warranty against manufacturing defects.
INSTALLATION NOTE
PLEASE NOTE THE 35 LB LOAD RATING ON THIS WHEEL. DO NOT INSTALL ON 2-WHEEL EQUIPMENT THAT WEIGHS OVER 70 LBS. USE ONLY SMOOTH AXLE SHAFTS - DO NOT USE THREADED ROD OR UNDERSIZE AXLES.
