696610 - Power Forged 100 Amp Rectifier Rebuild Kit, Contains ALL Components Necessary to REBUILD Burned-Out Associated Eqpt Rectifiers

$19.95
SKU 696610

Notify me when back in stock

Save $$$ by Rebuilding your Burned-Out Rectifier!

Designed for use in chargers with continuous-duty output ratings up to 100 Amps continuous or 600 Amps boost, this Heavy-Duty kit features 20 diodes rated at 50 Amps each

This kit can be used to rebuild the rectifier in Associated Eqpt chargers which use the 10-spoke fusible diode pressure plate, such as 6001, 6002, 6009, 6010, etc. It can also be used to rebuild the rectifiers in other brands manufactured by Associated, such as Mac Tools, MATCO, Cornwell, NAPA, and Snap-On.

Associated Rectifier Applications: 610100, 610122, 610344, 610364, 610392, 610417, 610418, 610691, 611002, 610073, 611097, 900100, and others.

Power Forged Applications: 696600696601, 696602 - , 696604696605696606696607

NOTE - Use only on rectifiers with 10-SPOKE fusible diode pressure plate design.

Features

• This kit contains components to rebuild dual diode assemblies which use the 10-spoke fusible diode pressure plate, each with an array of up to 10 diodes, for a total of up to 20 diodes. Kit provides replacements for all original components except for the heat sink plate itself - so the redundant capacity of the original design is retained.
• Straightforward instructions and simple design of this style rectifier allows for ease of rebuilding. No special tools are required.
• Diodes may be installed cathode to base for positive output chargers, or anode to base for negative output chargers - providing proper current rectification for either charger design.

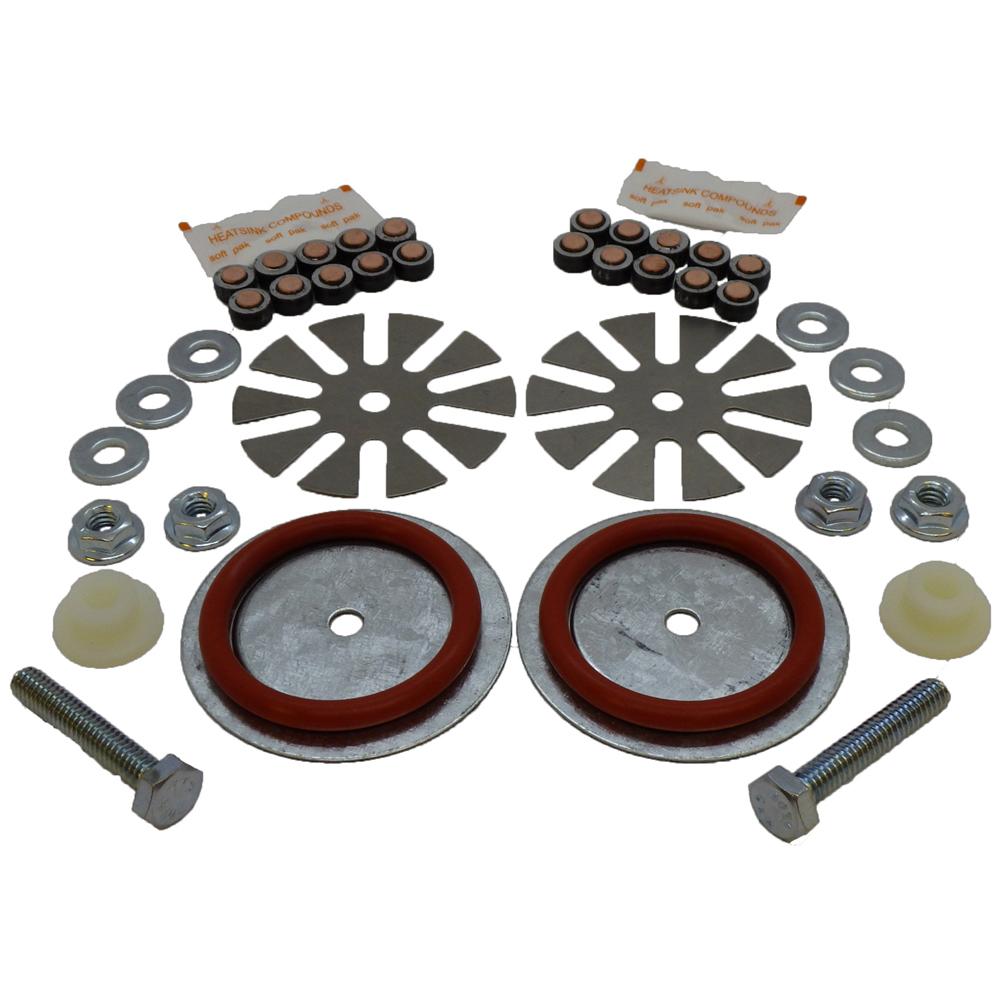

Contents

• 20 new, 50A/400PRV 10MM button diodes
• 2 nylon insulating shoulder washers
• 2 fusible diode contact plates
• 2 retainer caps
• 2 O-Rings
• All required bolts, nuts, and washers
• 2 packets of thermal grease

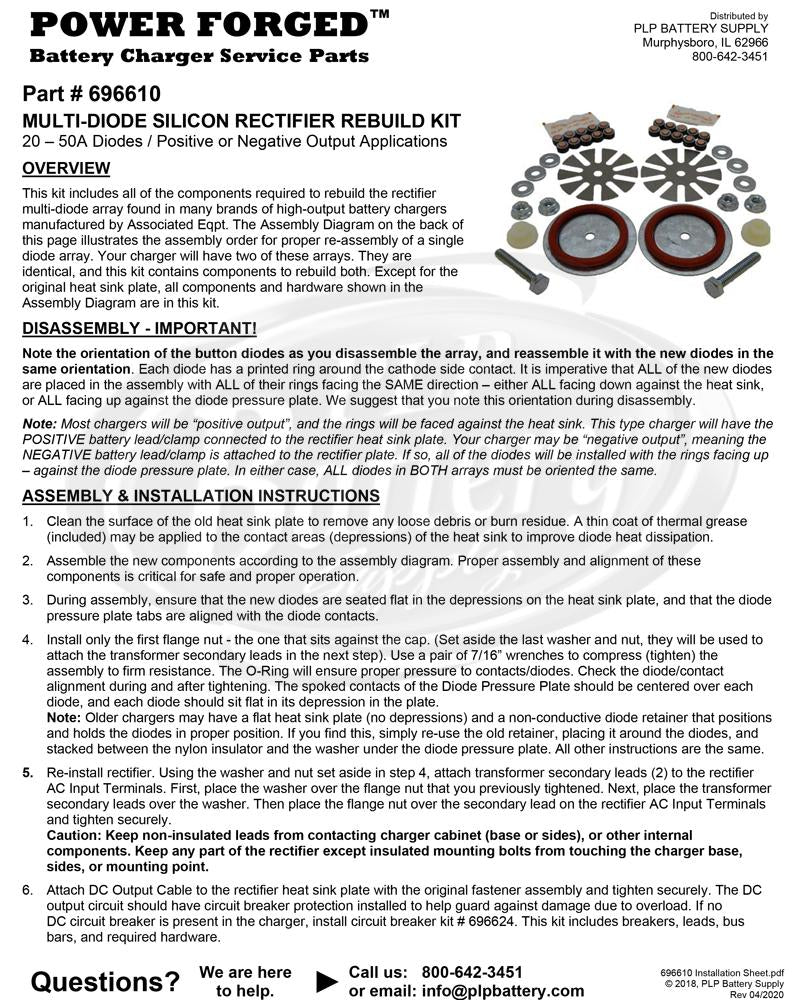

• Instruction sheet.
Note: The heat sink plate and rectifier mounting hardware are NOT included. If the heat sink plate is not serviceable or otherwise unable to be re-used, this kit cannot return the rectifier to functionality.

Related Products

696600 100 Amp Heavy-Duty Positive Base Rectifier (full size)
696601 - 100 Amp Heavy-Duty Negative Base Rectifier (full size)
696602 - 80 Amp Heavy Duty Positive Base Rectifier (full size)
696604 - 100 Amp Heavy-Duty Positive Base Rectifier, Compact
696605 - 100 Amp Heavy-Duty Negative Base Rectifier, Compact
696606 - 80 Amp Positive Base Rectifier, Compact
696607 - 80 Amp Negative Base Rectifier, Compact
