697012- Power Forged Battery Charger Switch Kit - 5 Position Replacement Switch fits Various Battery Chargers

$22.95
SKU 697012

Notify me when back in stock

Battery Charger Switch Kit - 5 Position Replacement Switch fits Various Battery Chargers
This versatile switch can be found in many models of battery chargers, and can also be used as a cost-effective retro-fit to replace more expensive OEM switches in many others.

Designed to be easy to install through a 7/16" stem-mounting hole. Wire terminals use .250" industry-standard solderless push-on connectors. No specialty tools required.

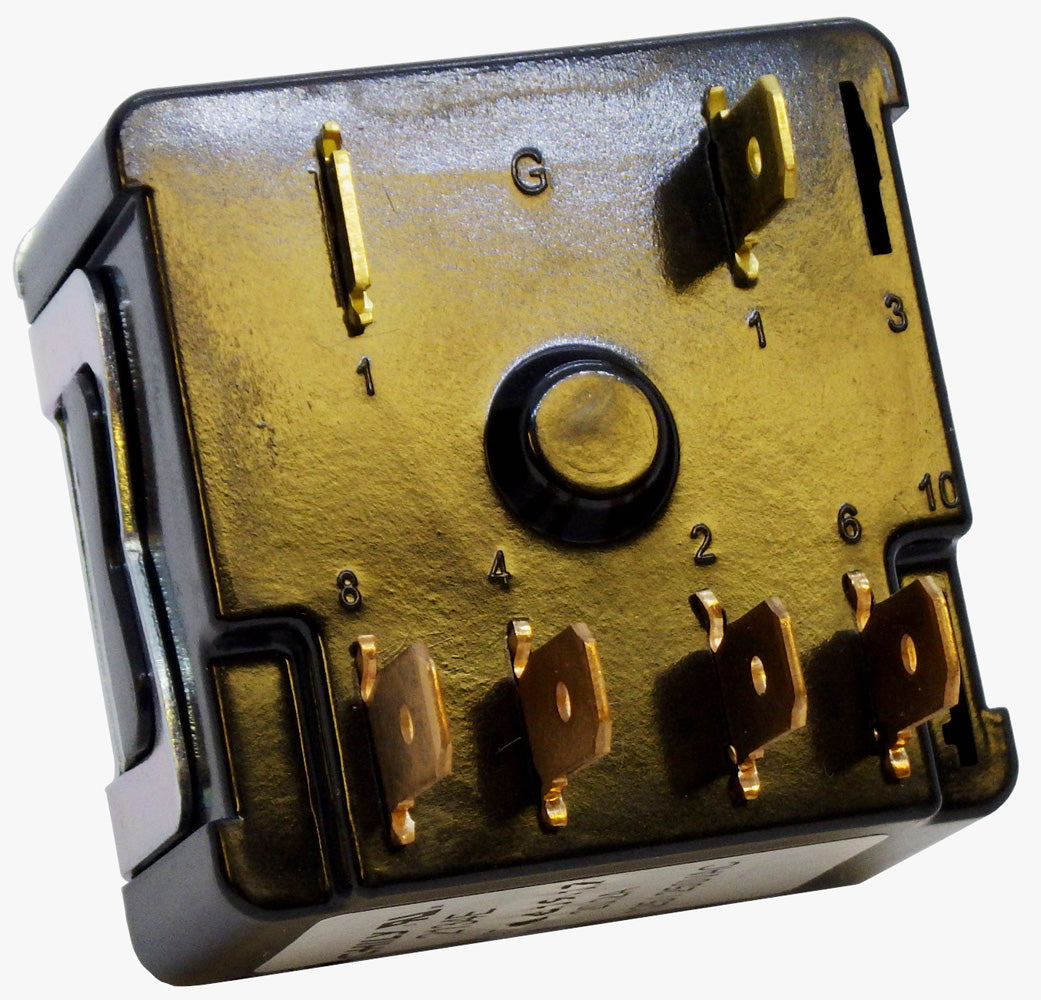

When oriented with the "OFF" position at 12 o'clock, this switch has 4 contact positions at the 2, 4, 6, and 8 o'clock positions.

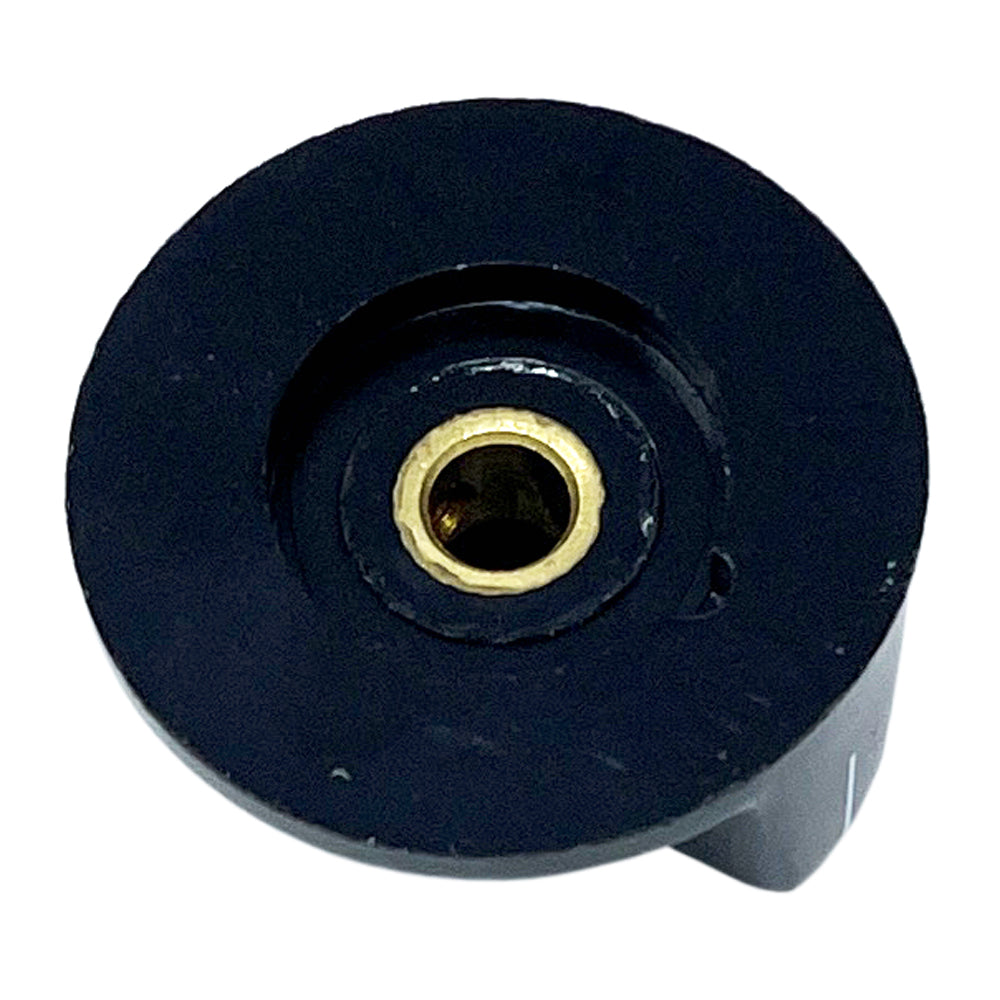

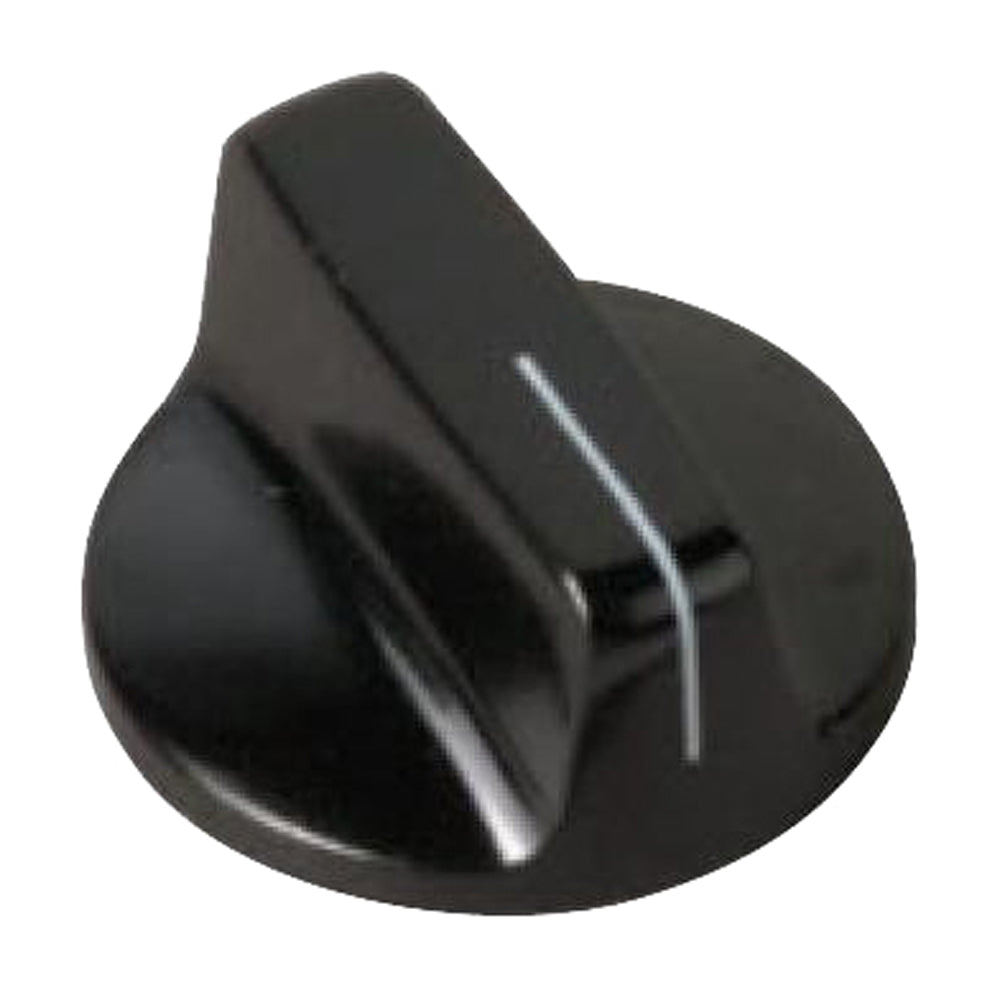

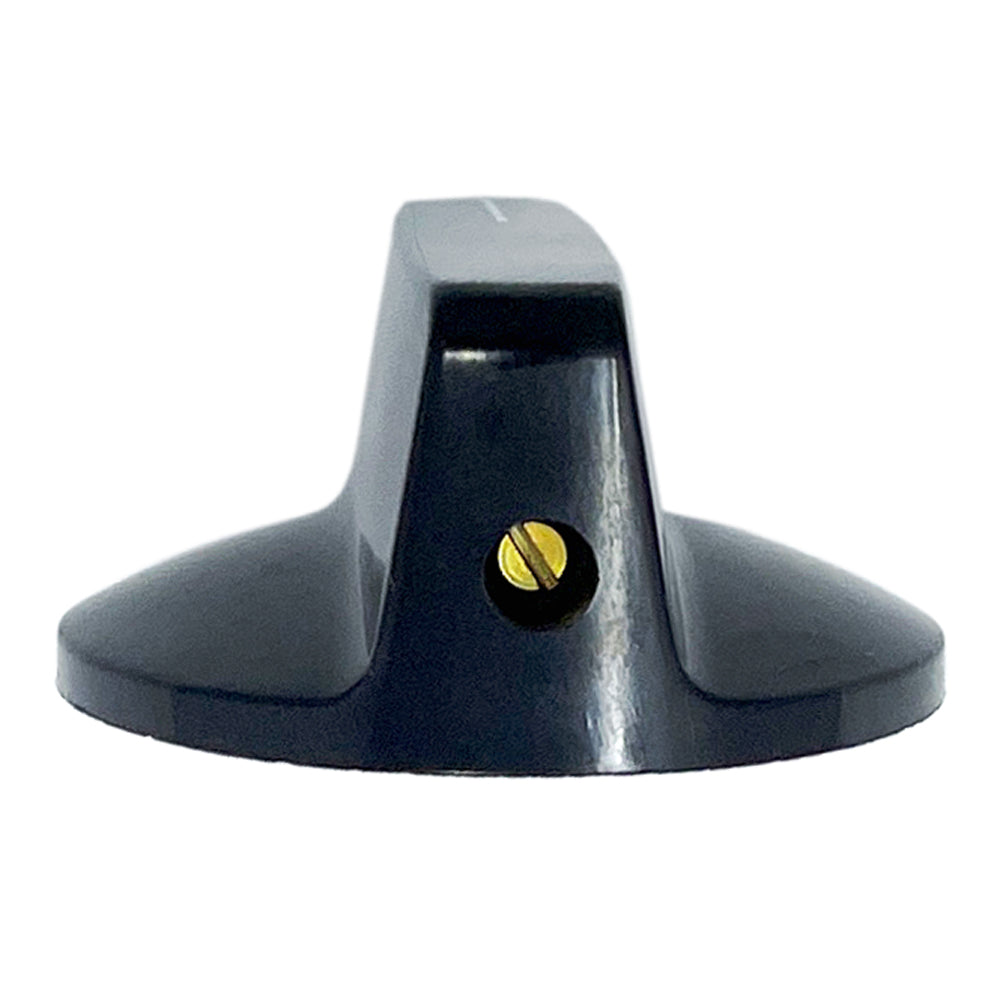

NOTE: EFFECTIVE 6/2022, THIS SWITCH IS SHIPPING WITH AN IMPROVED, SKIRTED KNOB, OUR PART NUMBER 696553. THE NEW KNOB USES A SET SCREW FASTENER. SEE IMAGE.

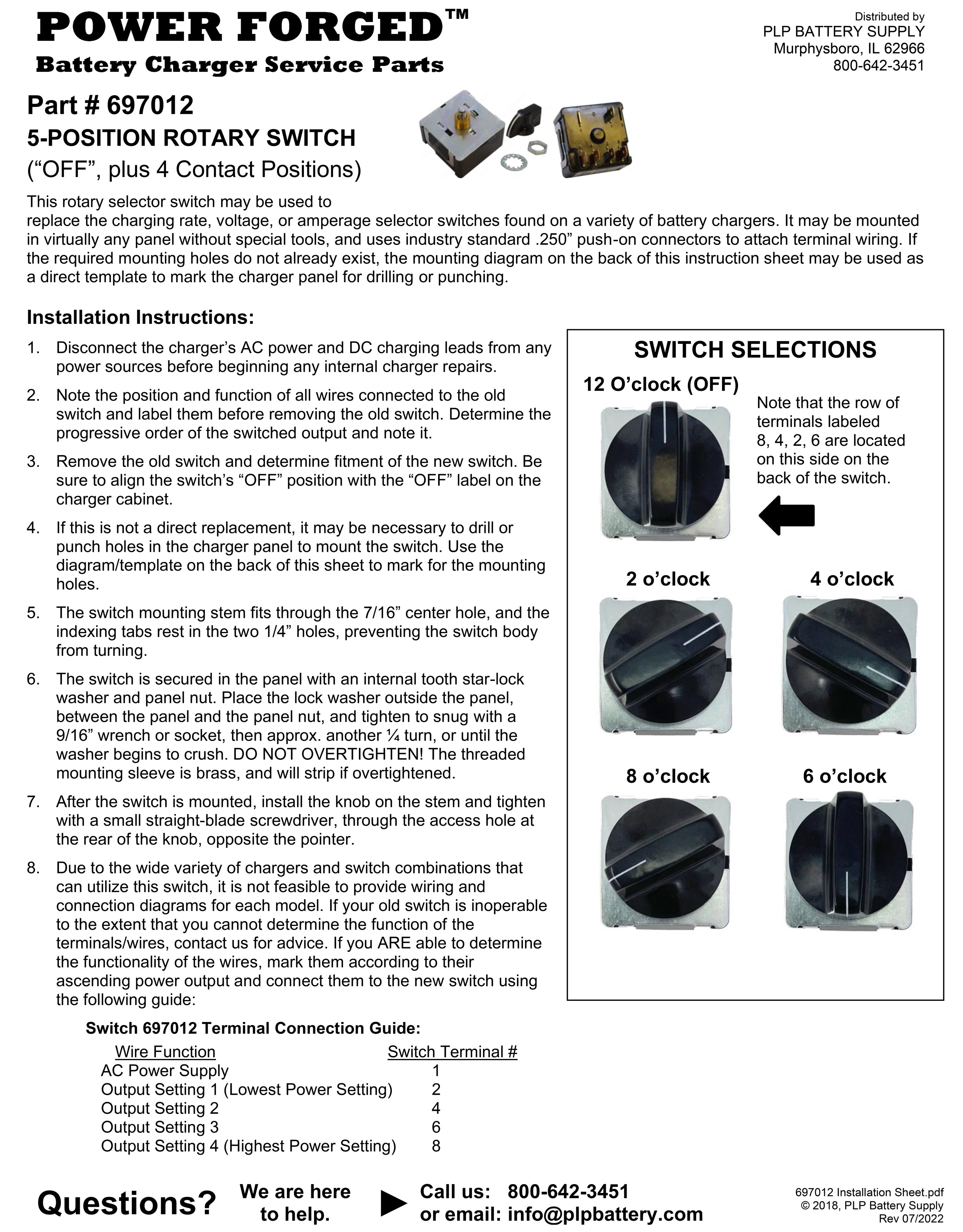

Installation Guide for Replacing Century/Solar 246-057-XXX Series Switches

Features

• "OFF" Position, plus 4 Contact Positions.
• Mounts in 7/16" panel hole with included panel nut and lock washer.
• Straightforward instructions and simple design allows easy installation. No special tools are required.

Specifications

• Rating: 20A 125/250VAC
• .250" Push-on connectors
• Switch body - 1.67"H x 1.67"W x 1.00"D

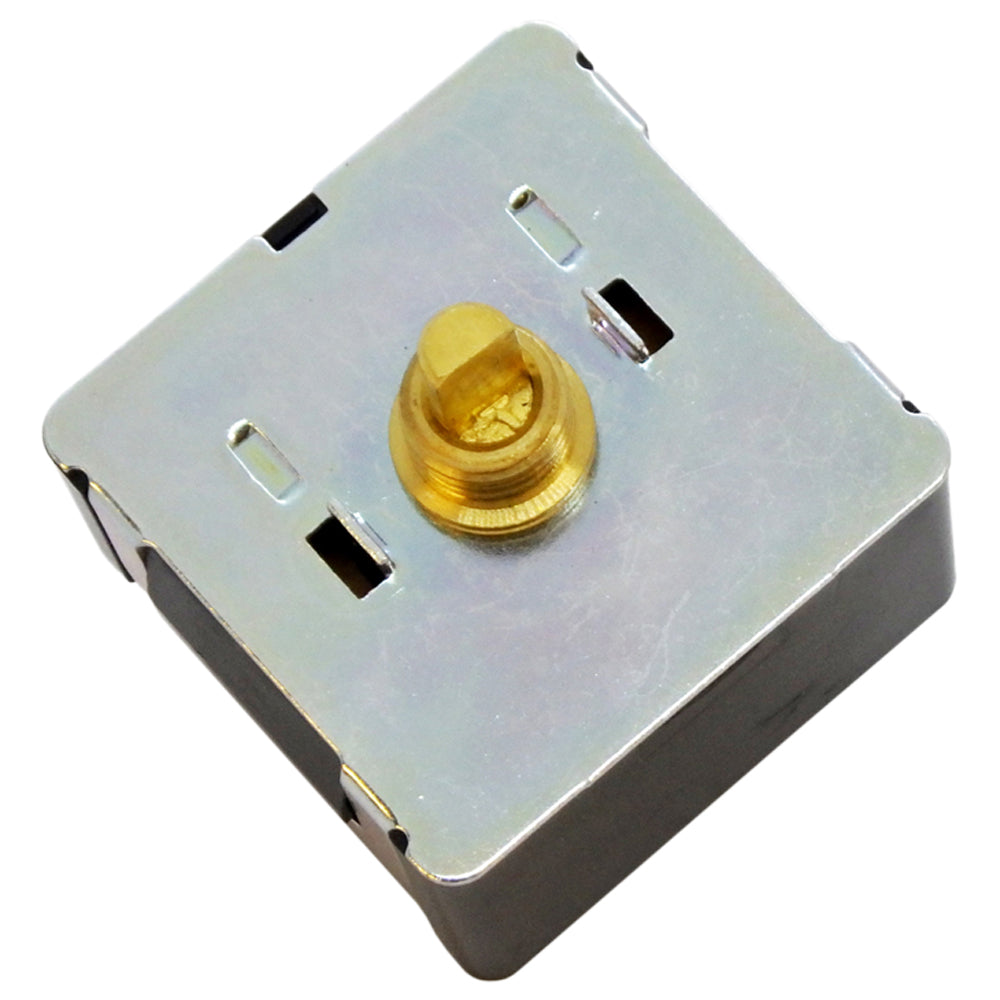

• Stem - .80"L x 6MM (.236") Diameter with flat
• 7/16"-20 Threaded Sleeve Mount with Indexing Tabs to prevent rotation

Contents

• 5-position rotary switch
• Skirted knob with set screw
• Mounting nut & lock washer
• Instruction sheet

Customer Reviews

Based on 80 reviews
94%
(75)
4%
(3)
0%
(0)
0%
(0)
3%
(2)
G
Gary or Schmitgen
Good value

fast shipping.

B
Brian Ferre
great directions

the installation went smooth with great directions and wire hook up .

A
Alvin Swift
Switch

The switch was not an exact replacement but with the information provided in the packaging you are able to make a proper installation.

N
Neil Guthrie

Seems to work fine on this fifty year old shumaker battery charger,just had to turn it a bit to mount it so it lined up

M
Mark Getty
Charger switch

The new switch was easy to install i had to drill a 7/16 hole and two 1/4 inch holes like the instructions say . The knob was easy to install but is a little flimsy. The wiring sequence was a little more involved and took some time and a few attempts to figure it out. but overall will work, and was fairly priced.
