697013 -Power Forged Battery Charger Switch Kit - 6 Position Replacement Switch fits Various Battery Chargers
Battery Charger Switch Kit - 6 Position Replacement Switch fits Various Battery Chargers

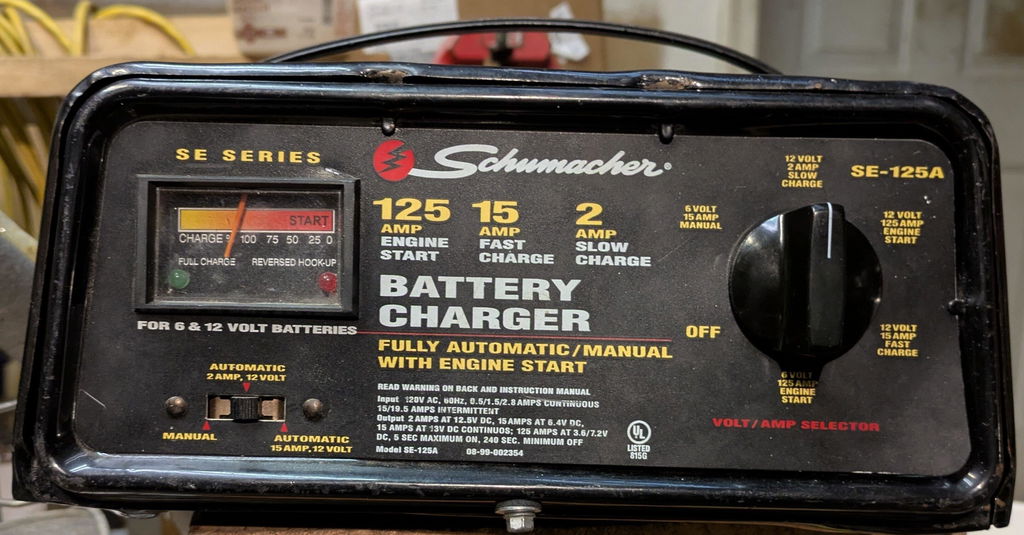

This versatile switch can be found in many models of battery chargers, and can also be used as a cost-effective retro-fit to replace more expensive OEM switches in many others.

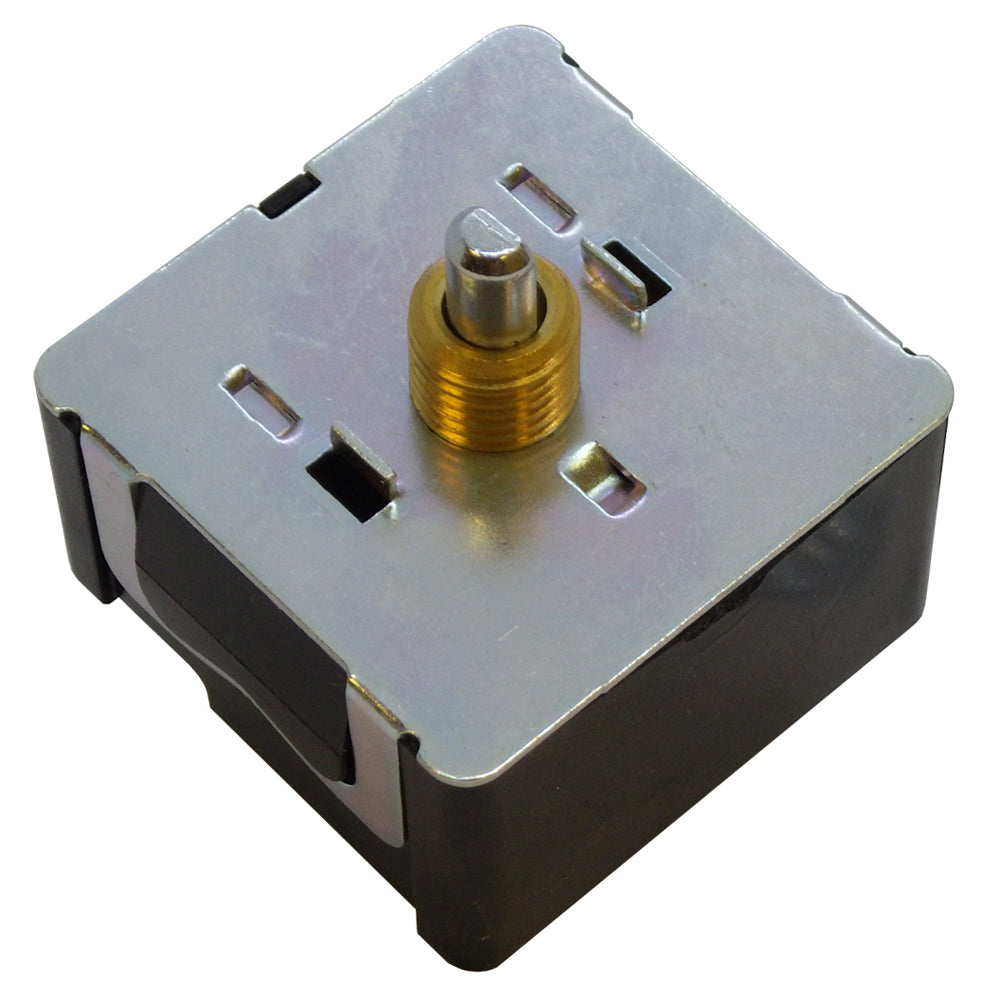

Designed to be easy to install through a 7/16" stem-mounting hole. Wire terminals use .250" industry-standard solderless push-on connectors. No specialty tools required.

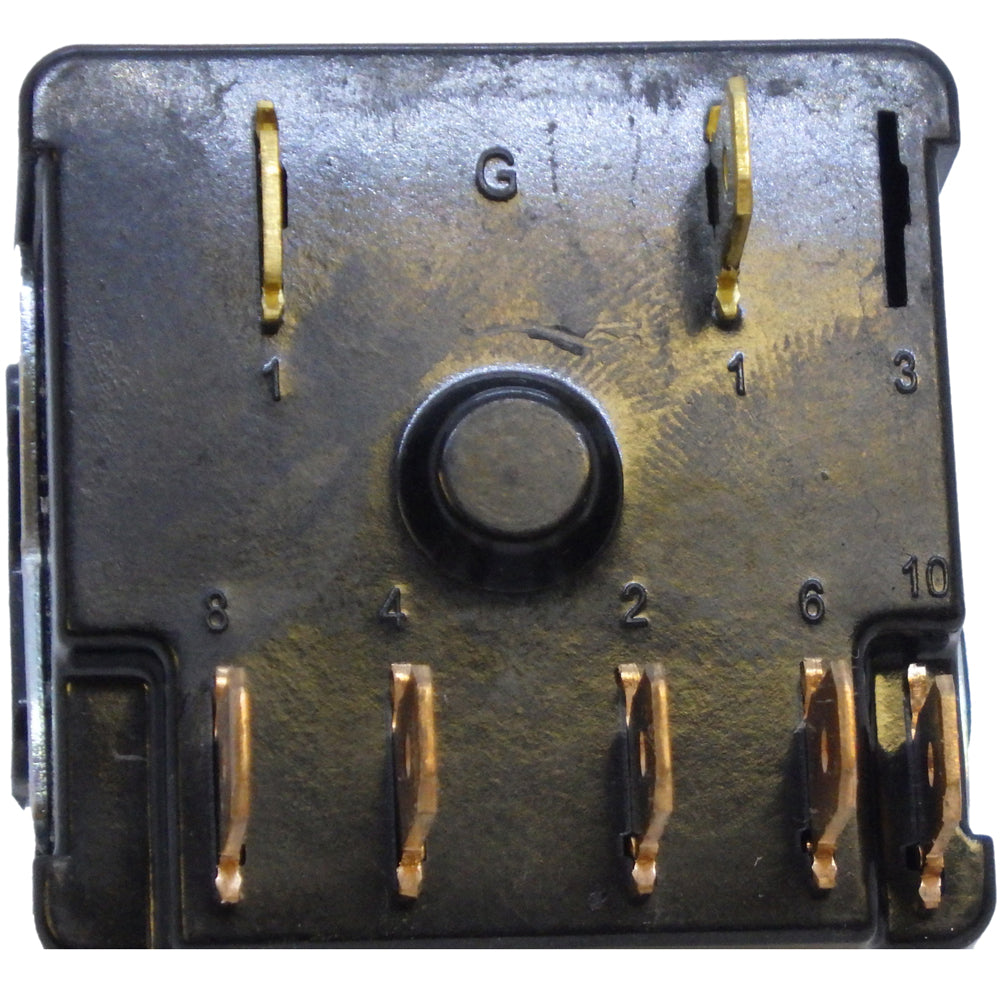

When oriented with the "OFF" position at 12 o'clock, this switch has 5 contact positions at the 2, 4, 6, 8 and 10 o'clock positions.
NOTE: EFFECTIVE 6/2022, THIS SWITCH IS SHIPPING WITH AN IMPROVED, SKIRTED KNOB, OUR PART NUMBER 696553. THE NEW KNOB USES A SET SCREW FASTENER. SEE IMAGE.
Features
• "OFF" Position, plus 5 Contact Positions.
• Mounts in 7/16" panel hole with included panel nut and lock washer.
• Straightforward instructions and simple design allows easy installation. No special tools are required.
Specifications
• Rating: 20A 125/250VAC

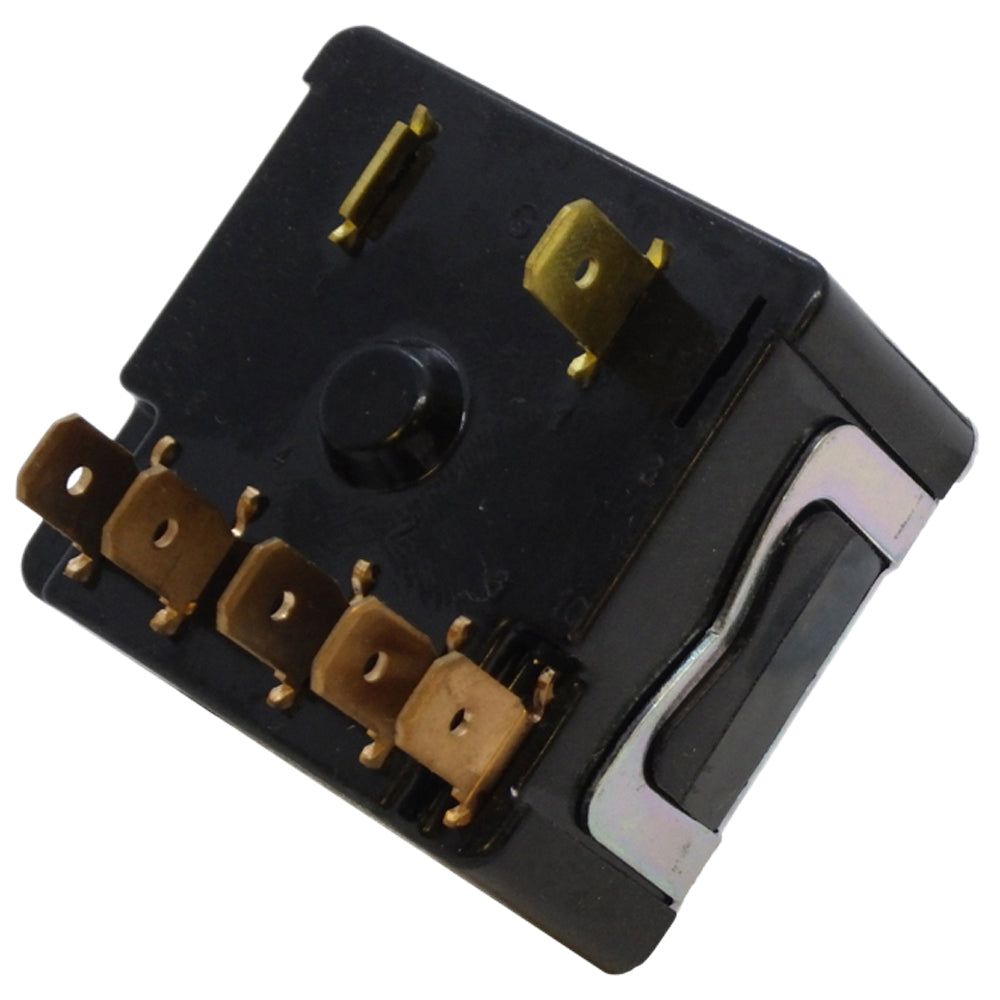

• .250" Push-on connectors
• Switch body - 1.67"H x 1.67"W x 1.00"D
• Stem - .80"L x 6MM (.236") Diameter with flat
• 7/16"-20 Threaded Sleeve Mount with Indexing Tabs to prevent rotation
Contents
• 6-position rotary switch• Pointer-style knob with set screw
• Mounting nut & lock washer

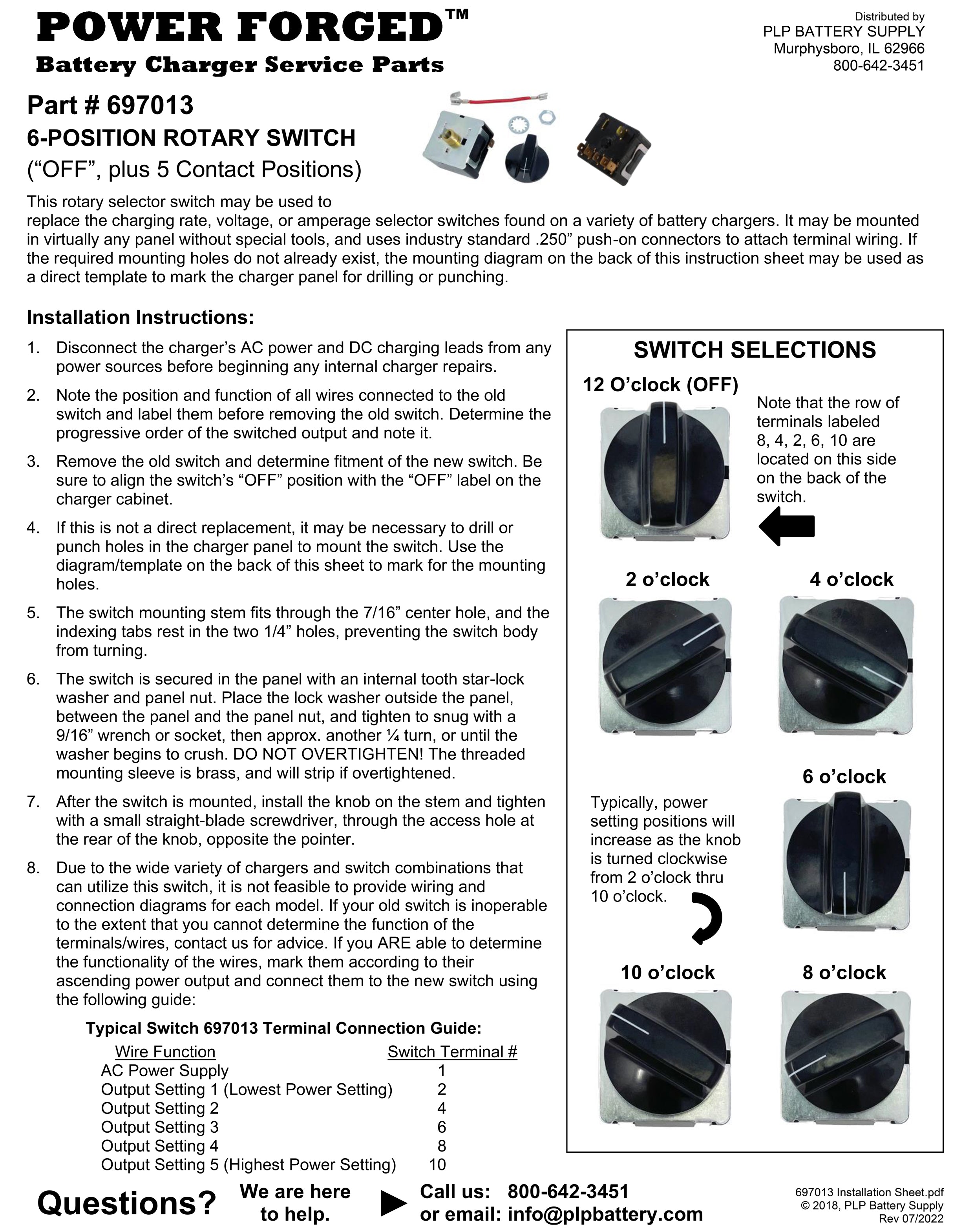

• Instruction sheet
