697015 - Power Forged Battery Charger Switch Kit - 8-Position Replaces Associated Eqpt 611187
Battery Charger Switch Kit - 8-Position Replaces Associated Eqpt 611187
4 "ON and 4 "OFF" positions - "ON" positions are at 12, 3, 6, and 9 o'clock. The intermediate positions at 1:30, 4:30, 7:30 and 10:30 are "OFF" positions.
This switch is a direct replacement for the 611187 rotary switch found on most models of Associated Eqpt chargers (6001, 6001A, 6002, 6002B, 6009, 6009A, 6010, 6010B, etc.). It is EXACTLY the same switch offered as Associated PN 611187, at less than half the cost.

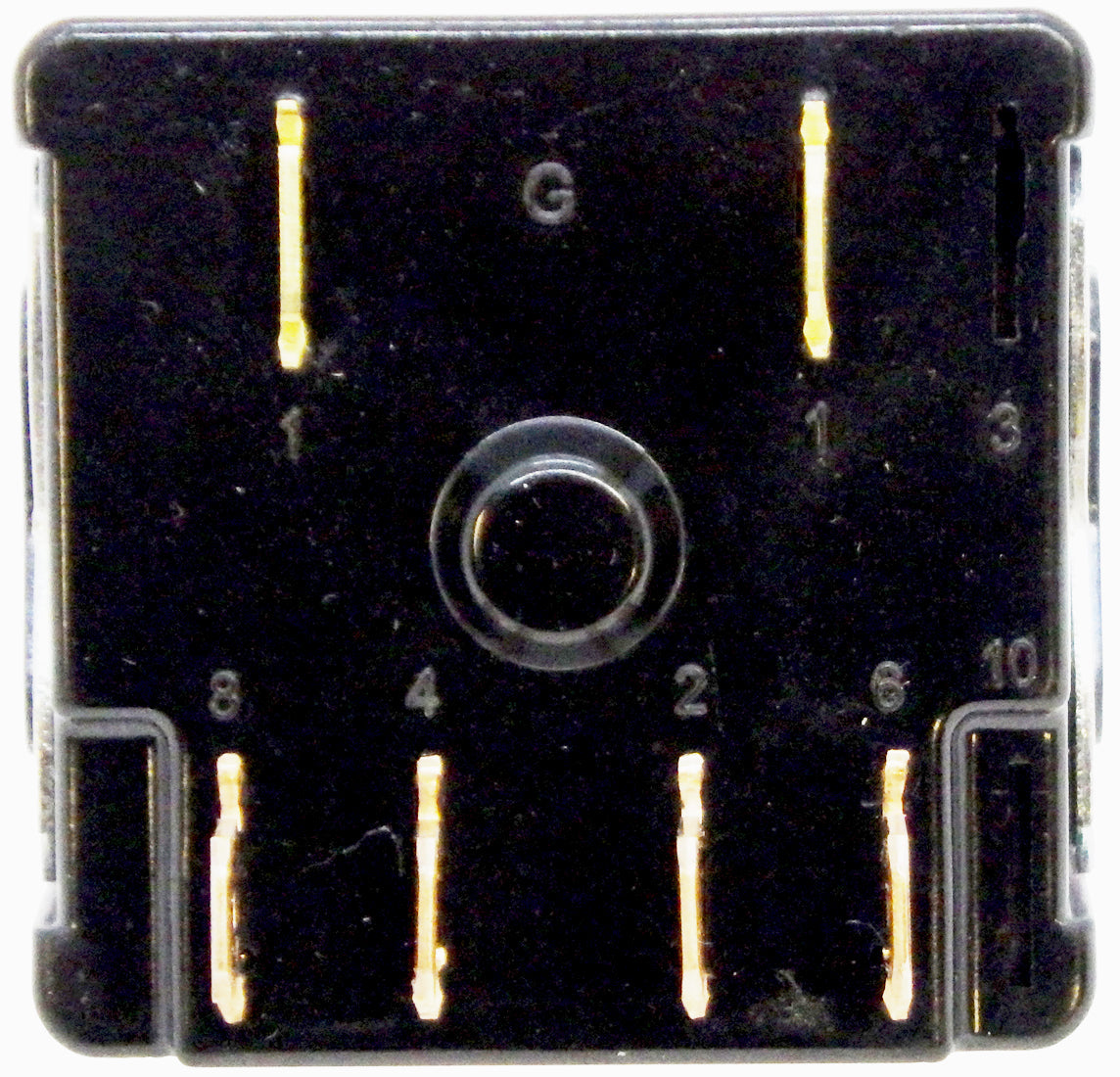

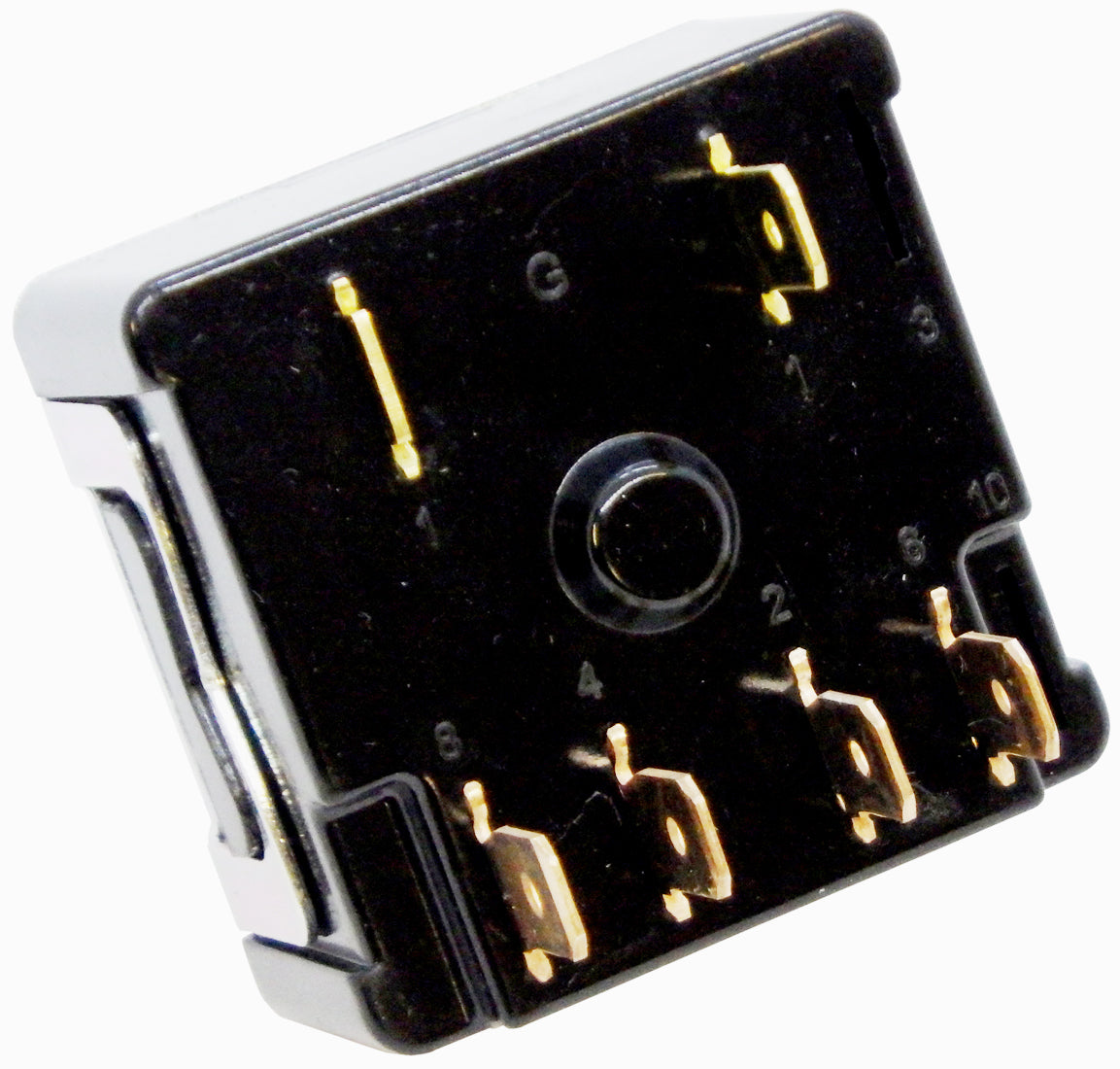

Designed to be easy to install through a 7/16" stem-mounting hole. Wire terminals use .250" industry-standard solderless push-on connectors. No specialty tools required.

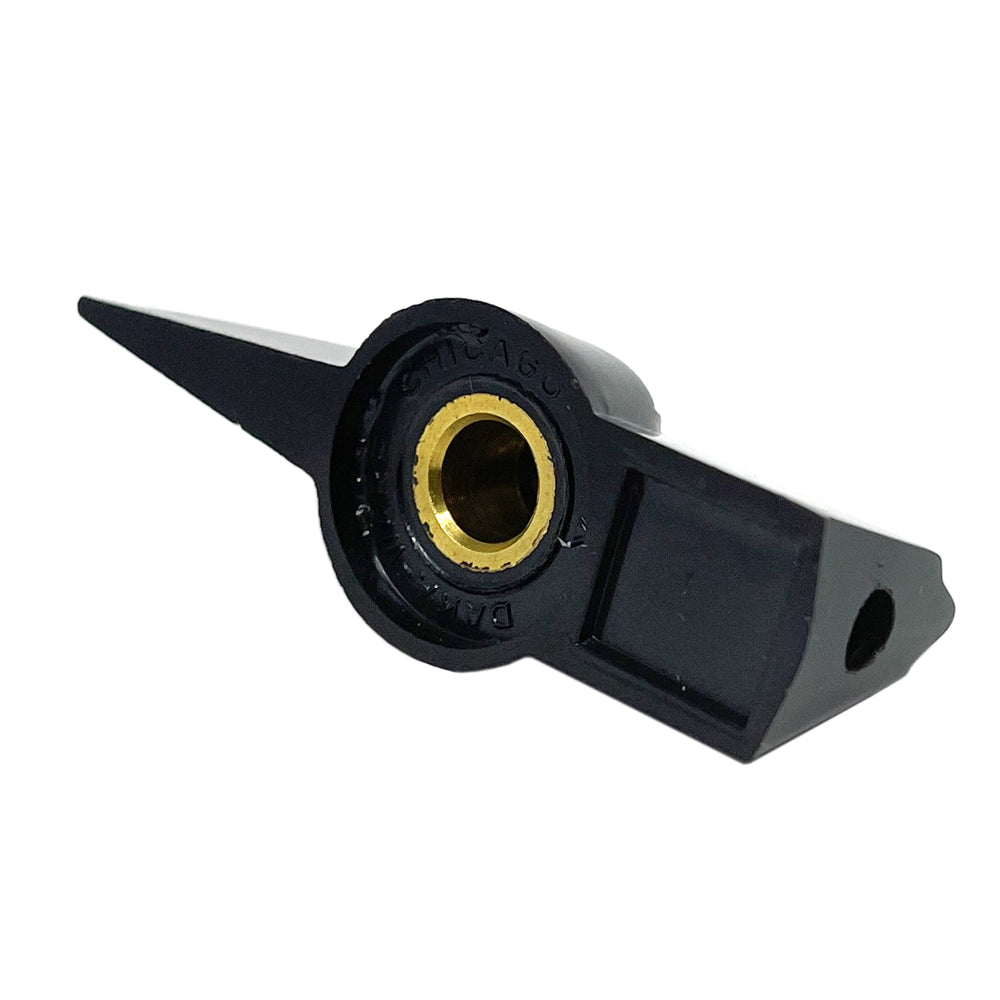

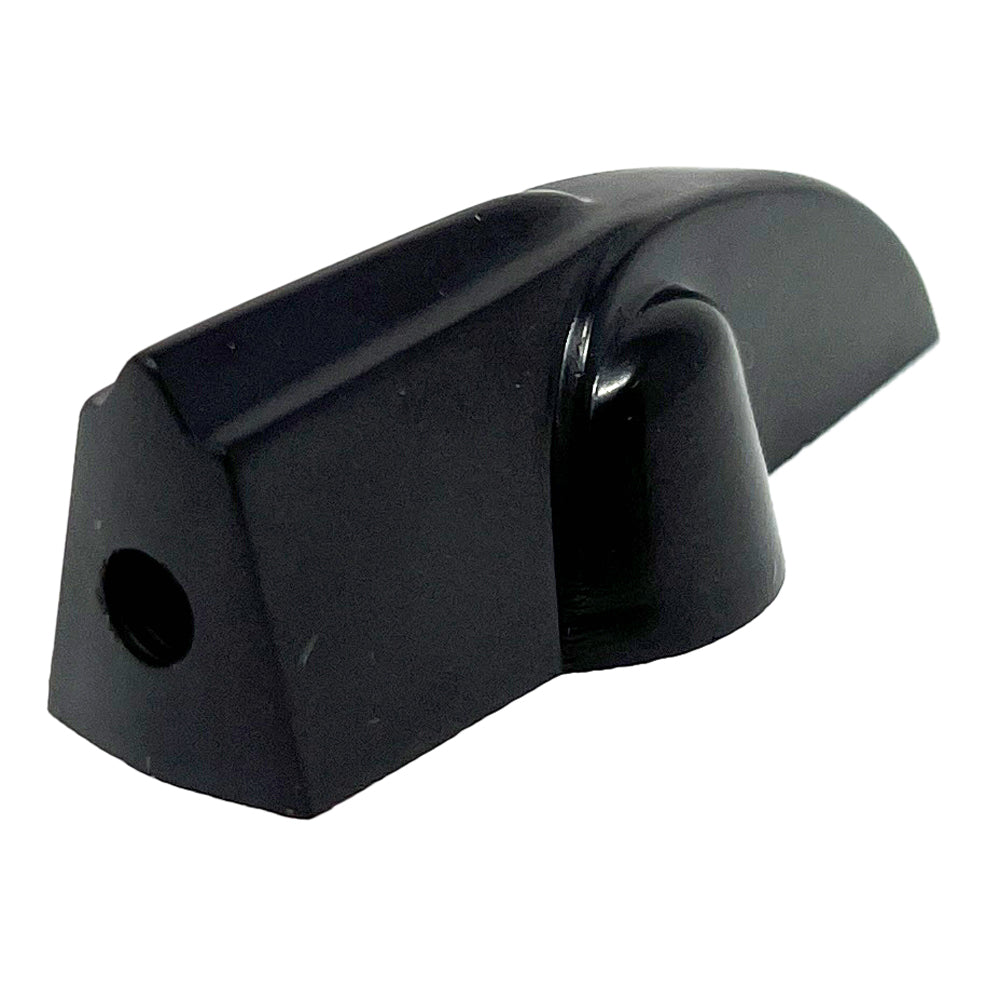

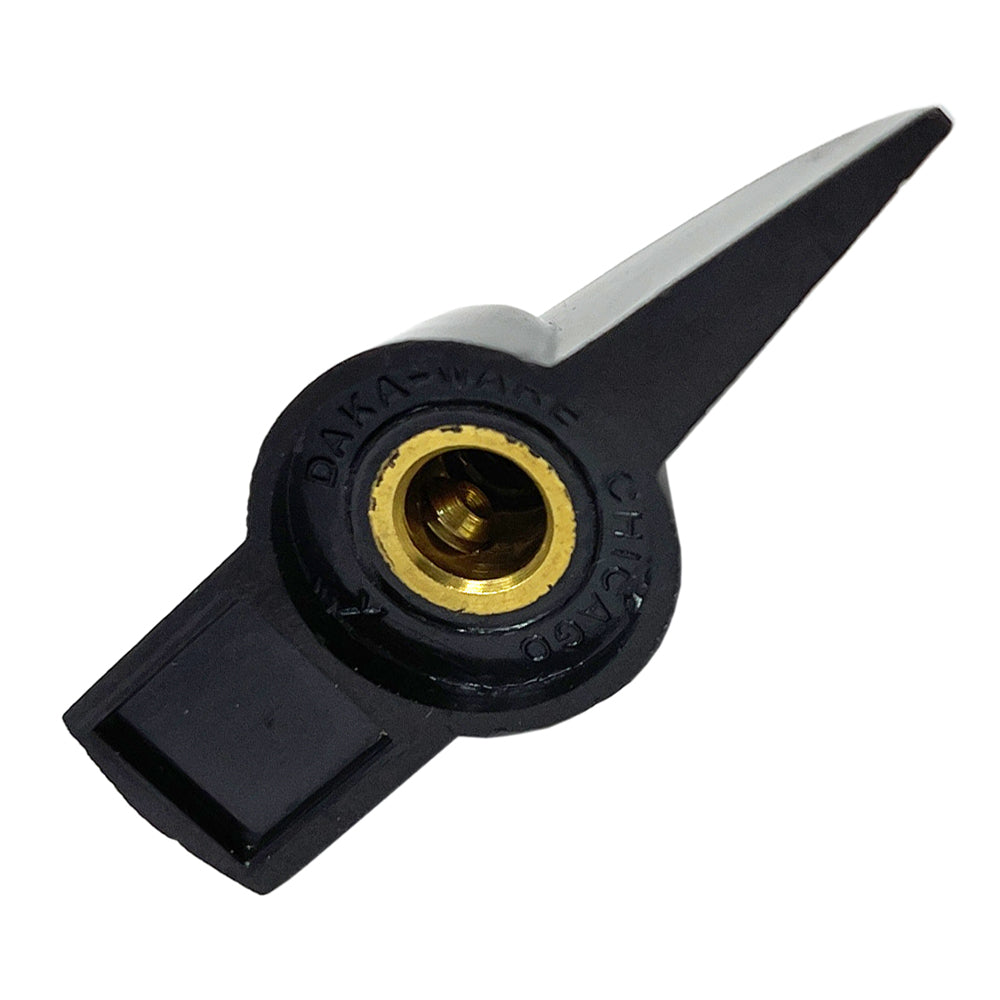

NOTE: EFFECTIVE 6/2022, THIS SWITCH IS SHIPPING WITH AN UPGRADED KBOB, OUR PART NUMBER 696551. IT IS THE SAME SET-SCREW POINTER KNOB THAT WAS USED BY ASSOCIATED EQPT IN THE PAST, BEFORE CHANGING TO THE SPRING-CLIP DESIGN. THE NEW KNOB USES A SET SCREW FASTENER. SEE IMAGE. We like it better - we think you will also.
Specifications

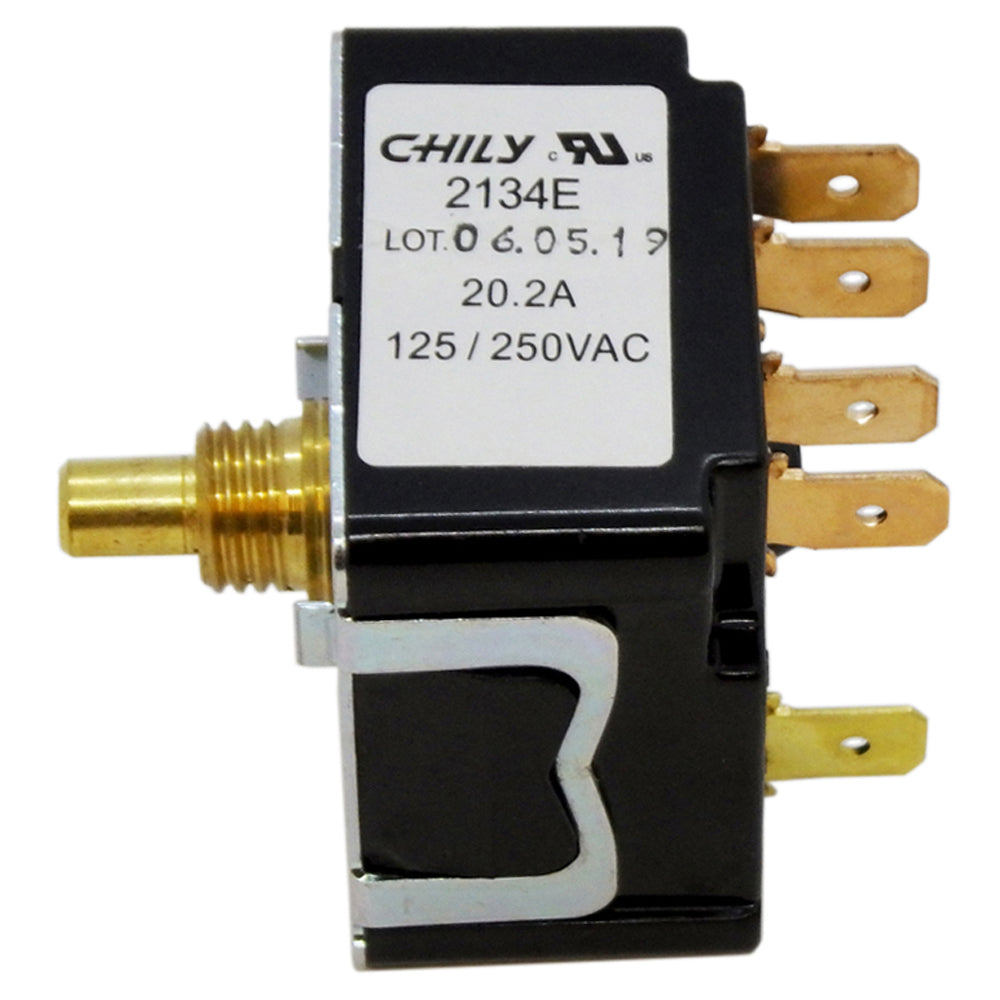

• Rating: 20A 125/250VAC
• .250" Push-on connectors
• Switch body - 1.67"H x 1.67"W x 1.00"D
• Stem - .80"L x 6MM (.236") Diameter with flat

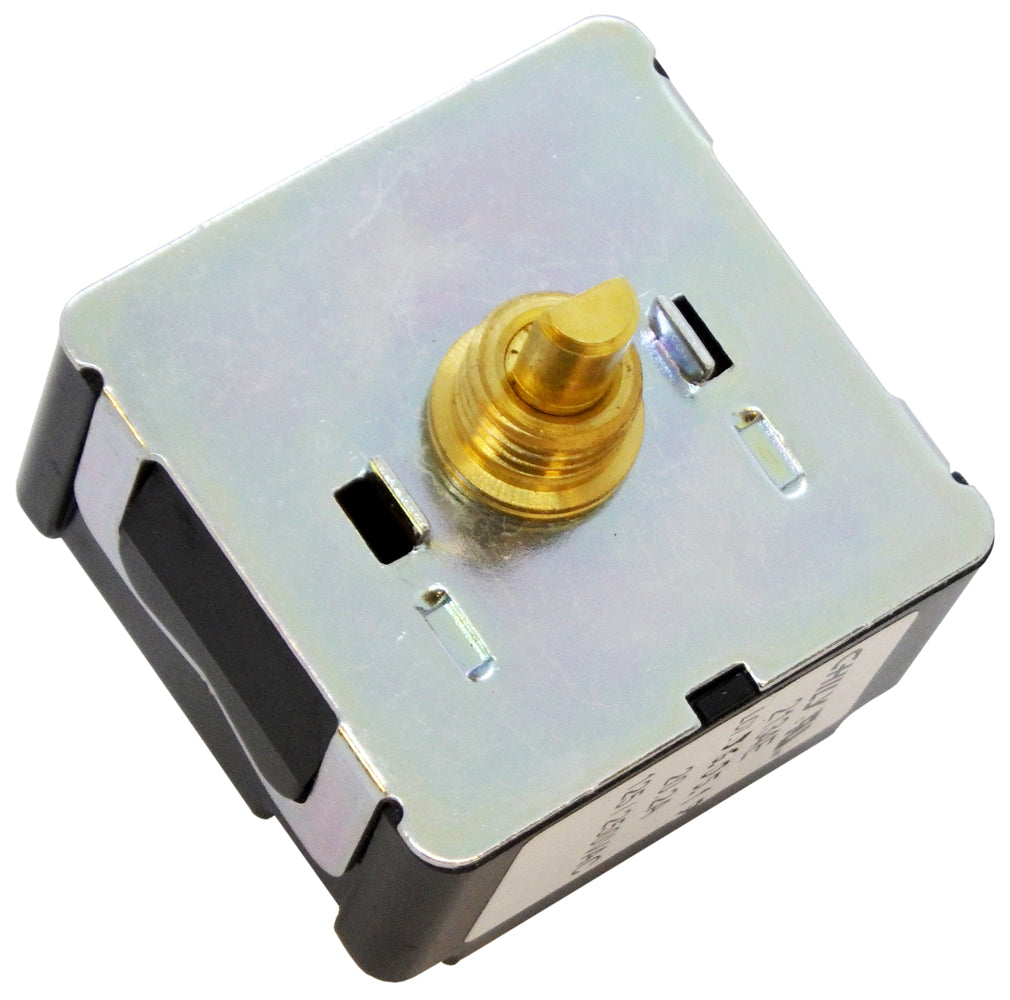

• 7/16"-20 Threaded Sleeve Mount with Indexing Tabs to prevent rotation
Contents
• 8-position rotary switch• Pointer-style knob with set screw (our part # 696551)
• Mounting nut & lock washer

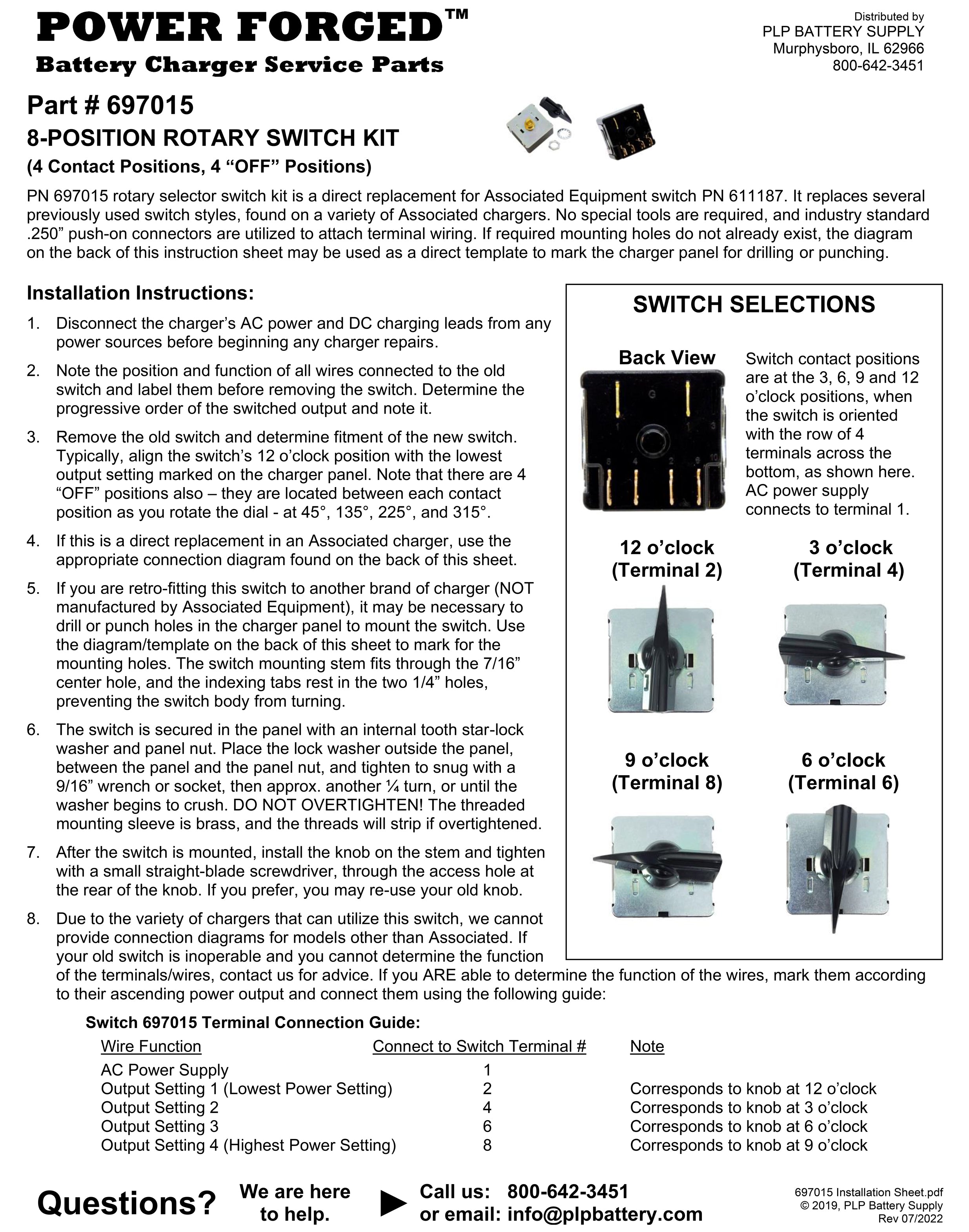

• Instruction sheet
