Amp Meter 0-60A w/Boost Snap-In w/Inductive Pick-Up for Battery Chargers
Original Replacement for various Schumacher and other chargers. Inductive pickup, no meter connections required. Snap-in mount to charger panel. This meter may be fitted in any battery charger with a 1.3"H x 2.15"W mounting hole in the panel. Check width for clearance. Direct Replacement for Schumacher meter 5399-100-146.
Fitment Note: Bezel is significantly larger than mounting hole.
Also replaces these OEM amp meters:
Schumacher 5399-100-146 (60A w/Boost) Direct Replacement
Schumacher 5399-100-149 (50A w/Boost)
Schumacher 5399-100-147 (40A w/Boost)
• Black ABS Backplate with Clear Bezel
• Bottom Movement - Needle pivots from bottom
• Inductive Pick-up - Charging current flows through the pick-up
• Accuracy: 5% of Full Scale

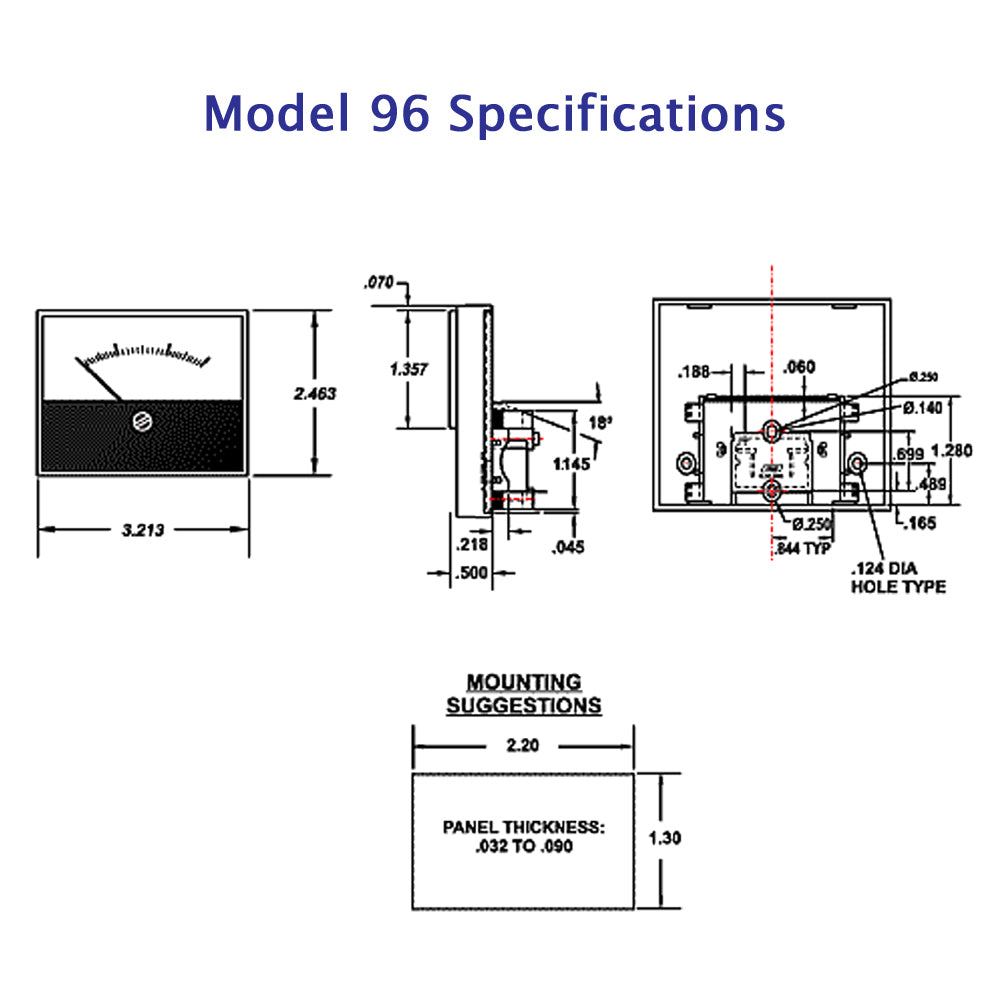

• 2.50"H x 3.25"W Bezel Outer Dimensions
• 1.30"H x 2.20"W Panel Mount Hole
