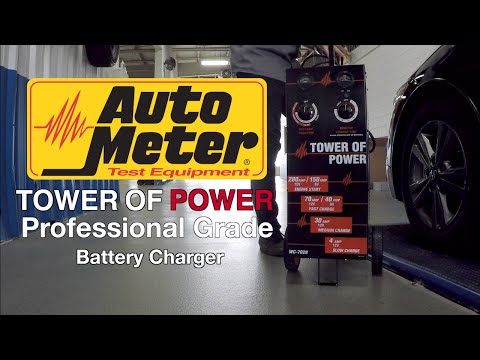

AutoMeter "Tower of Power" Wheel Charger, 6/12V Manual 70A, 30A, 4A, 280A Boost - WC-7028
Features
• Tall, slender design places controls at an easy to adjust level and allows unit to fit easily between cars and lifts in the shop.• Overwound, ultra heavy-duty transformer with 100% copper windings provides uninterrupted, high current flow for maximum charging performance and efficiency.
• Solid copper 2 gauge wiring and high quality, heavy duty clamps for optimum conductivity and extended service life.
• Larger wheels designed to easily roll over obstacles such as shop air hoses or gravel.
Specifications
• Charge Type: Manual
• Battery Voltage: 6v, 12v
• 12V Charge Output Current: 70, 30 or 4 amps
• 12V Engine Start/Jump: 280 amps
• 6V Charge Output Current: 40 amps
• 6V Engine Start/Jump: 150 amps
• Charge Timer w/Hold: 0-120 min
• DC Leads: 6 ft, 6 AWG
• Power Cord: 6 ft, 14 AWG
• Voltmeter: Yes, analog
• Ammeter: Yes, analog
• DC Circuit Breaker: Self-Resetting
• Cooling: Fan cooled
• Handle: Tubular, fixed
• Weight: 47lbs
• Dimensions: 38" x 14" x 14"
Operator's Manual
Click here to open or download a PDF version of the Operator's Manual
