696040 - Button Diode, 10MM (.40") 50 Amp, 400 PRV Solderable Tin-Plated Contacts

$2.95
SKU 696040-2
Package Qty

Notify me when back in stock

Heavy Duty 10MM Jumbo Button Diodes with Solderable Tin-Plated Contacts rated at 50 Amp, 400 Peak Reverse Voltage. Commonly used in battery chargers and alternators.

Buy More & Save More - Up to 60%OFF!

Standard Pack is 2 Diodes, also available in Value Packs of 10, 25, 50 & 100 pieces. Select larger Package Quantity to see quantity pricing.

Features

• Tin-Plated Contacts for Pressure Fit or Solder Connection
• Cathode Contact marked with painted ring

Specifications

• 50 Amp, 400 PRV

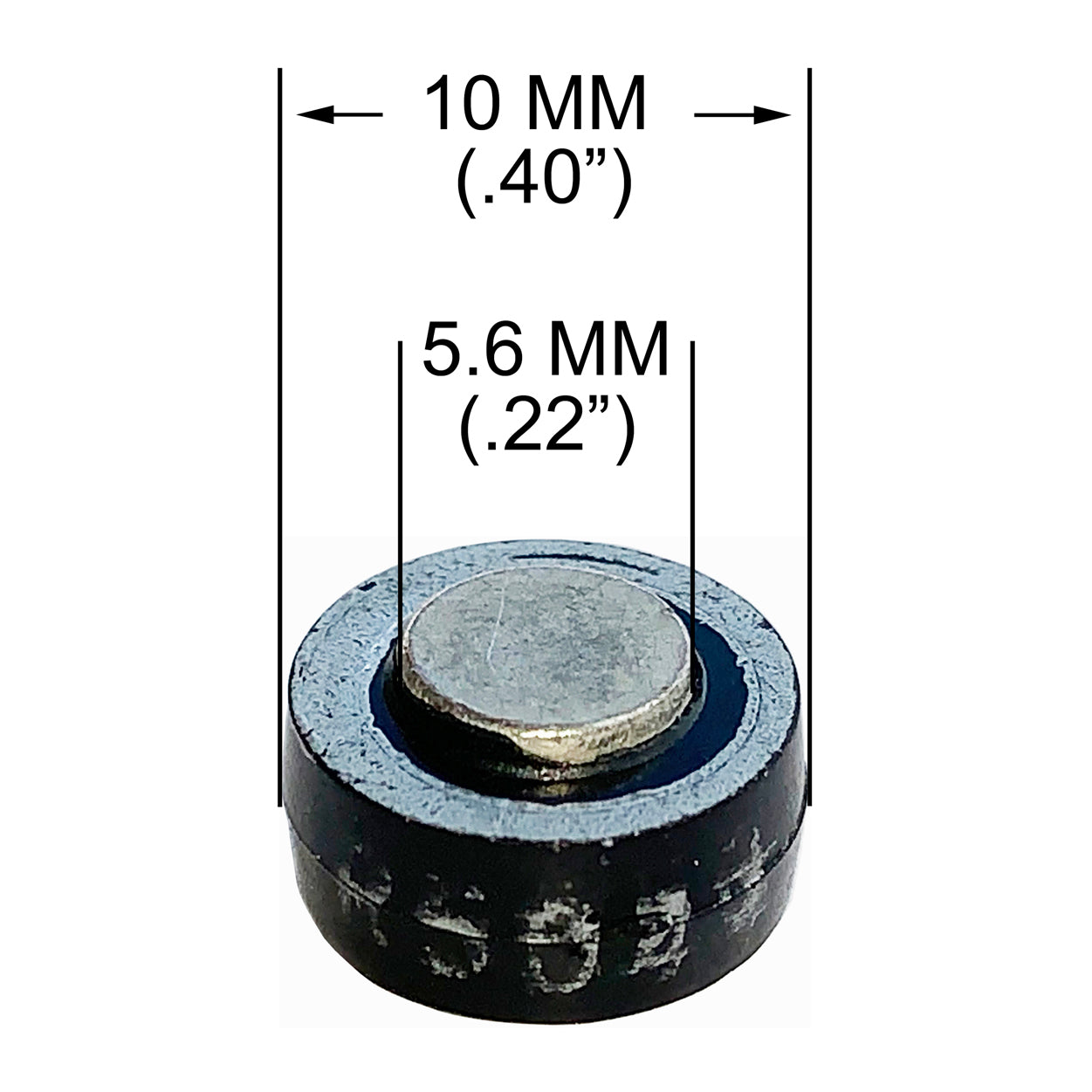

• 10MM (.40") Diameter (type AR case)
• Meets MIL-STD-750 Connection Method 2026: Hi-Temp soldering guaranteed 482°F (250°C) for 10 seconds

Customer Reviews

Based on 36 reviews
94%
(34)
3%
(1)
3%
(1)
0%
(0)
0%
(0)
J
John Best Sr
Button Diodes take the heat.

This is the first time I had ever seen button diodes. I've been an electronics tech for over 50 years so this was a first. They were used in a high amperage battery charger. It had 4 that were shorted out of 12 diodes. They were mounted on a steel plate and I had to purchase an 80 watt, 900 degree soldering iron to remove the old solder. The new diodes took the heat well when soldering them in. The charger came back to life and these diodes were a direct replacement.

J
John Bristol
Awesome

Fit right in ,works like new,great price

z
zhifu wang

Good product, working well so far, reasonable price.

G
GRM
Worked great

The item I needed was discontinued. This had better max voltage ratings, went in as expected and worked. And I got a few extra incase I do something dumb again and blow these like I did the last ones.

J
Jack Clapp
Correct Fit

What I needed ,
