696042 - Button Diode, 10MM (.40") 70 Amp, 400 PRV Solderable Tin-Plated Contacts

$3.95
SKU 696042-2
Package Qty

Notify me when back in stock

Heavy Duty 10MM Jumbo Button Diodes with Solderable Tin-Plated Contacts rated at 70 Amp, 400 Peak Reverse Voltage. Commonly used in battery chargers and alternators.

Buy More & Save More - Up to 60%OFF!

Standard Pack is 2 Diodes, also available in Value Packs of 10, 25, 50 & 100 pieces. Select larger Package Quantity to see quantity pricing.

Features

• Tin-Plated Contacts for Pressure Fit or Solder Connection
• Cathode Contact marked with painted ring

Specifications

• 70 Amp, 400 PRV

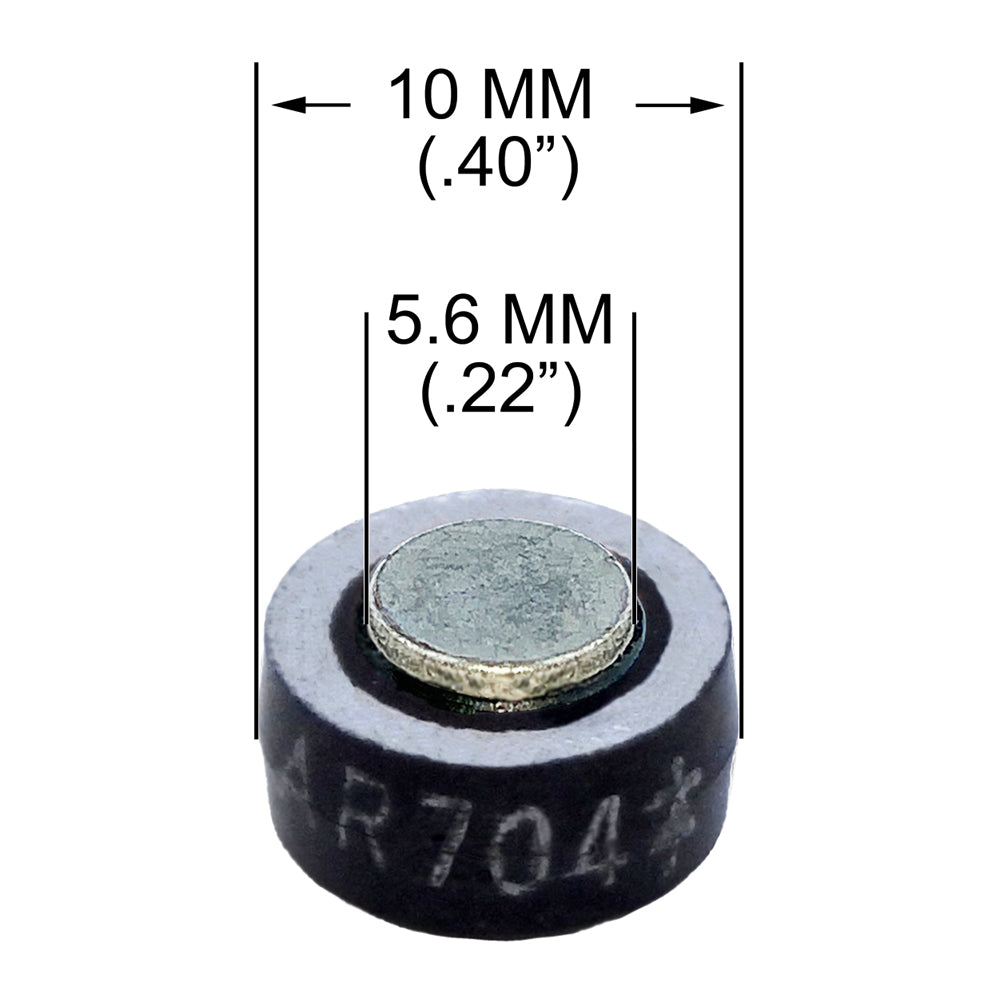

• 10MM (.40") Diameter (type AR case)
• Meets MIL-STD-750 Connection Method 2026: Hi-Temp soldering guaranteed 482°F (250°C) for 10 seconds

Customer Reviews

Based on 5 reviews
100%
(5)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
b
brian snider

Exact replacement worked great

R
R.B.T.
Welding Well

Replaced button diodes in older Century welder that was sputtering badly. New diodes rated higher than originals. Welder now works as it should.

M
M.S.
Working Good so far

Replaced diodes in old Sears Battery charger. Working good so far, only 1 week. Have been using almost every day.

B
Billy Patterson
Dead Charger Resurrection

My Much needed battery charger died and I needed it to keep my tractor battery charged. I it checked out and decided the diodes were bad. I ordered the button diodes from PLP Battery Supply and in just a few days my order came in. It only took 15 minutes and my battery charger was brought back to life.. My battery's can now get a little help staying charged during the winter months. BILLY...

Thanks PLP BATTERY SUPPLY

K
Kent Schultz
Diode shorted

They worked great and fixed my charger.
