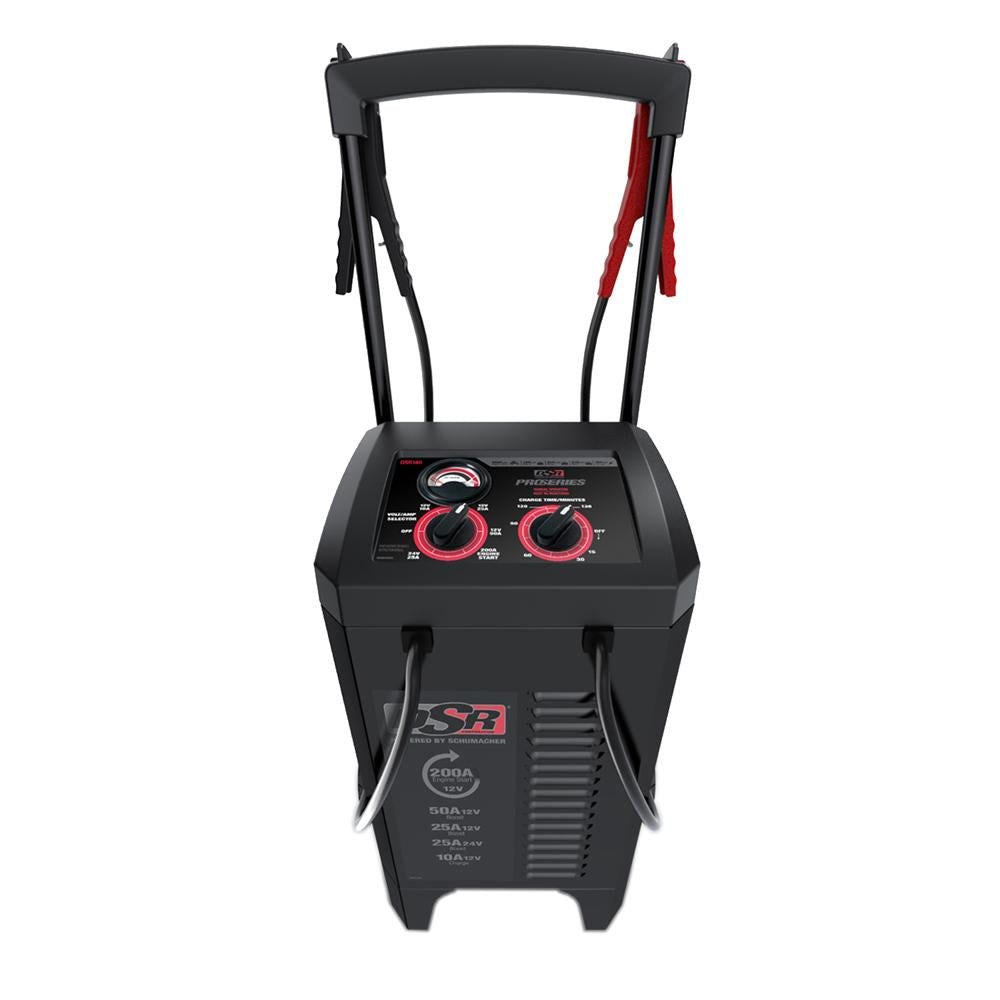

Schumacher DSR140 6V/12/24V 200A Pro Series Manual Wheel Battery Charger/Engine Starter
Heavy-Duty construction for Strong Starting Power
Manual Operation – must be monitored
200A 12V Engine Start
50A 12V, 25A 12V, 10A 12V Charge Modes
25A 24V Boost Mode
Features
• Solid State Circuitry – with silicon diodes for optimum performance• 135 Minute Timer – for precision control over the charging process

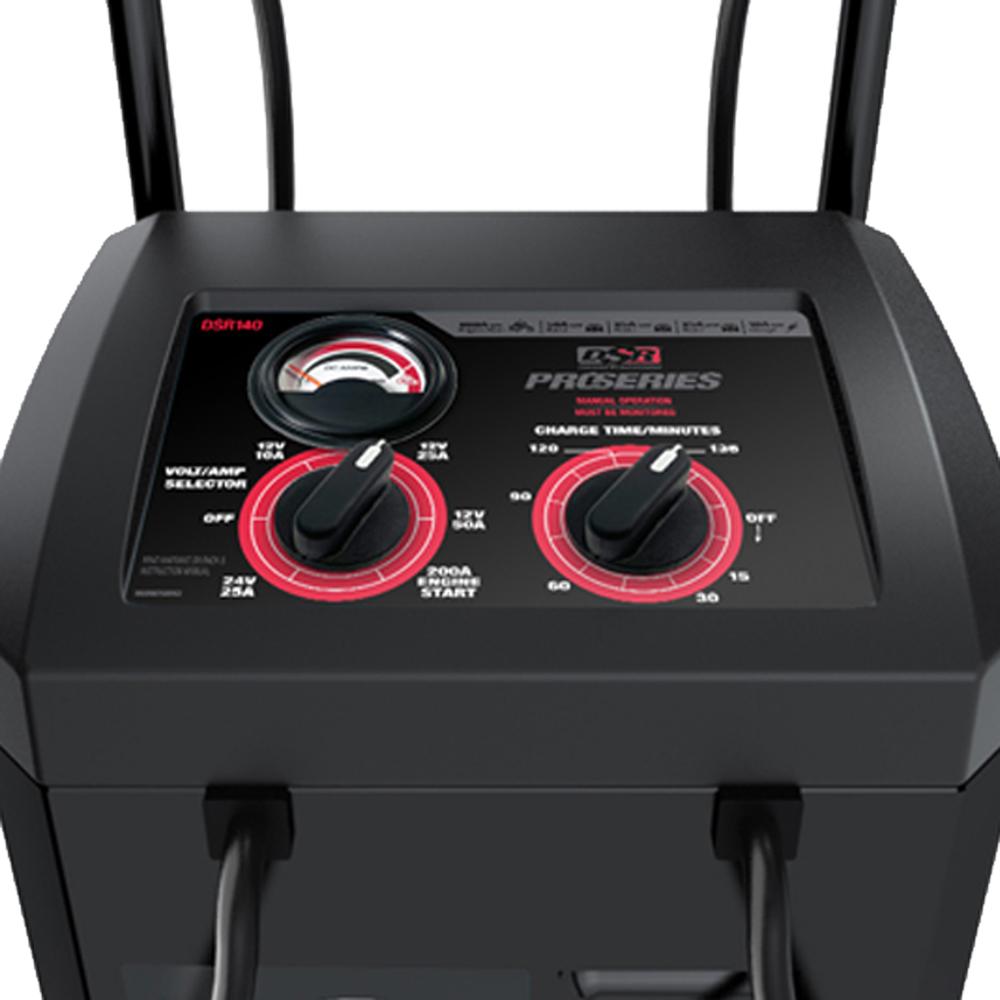

• Easy-to-Read Meter – shows charging levels
• 6-gauge Output Cables – stay flexible In cold weather
• Premium Knobs
• Color-coded Clamps – for a solid connection, on top- and side-mount battery posts
• Convenient Storage Profile – clamps on front, retractable handle and compact wheels
• 12 ft. Total Reach – 6 ft. power cord and 6 ft. front-mounted output cables
• Schumacher Eco Energy™ meets the highest industry standards
• DOE compliant
• Warranty Period: 2 years
Specifications
• Battery Type: Standard, AGM, Gel• Input Voltage: 120V AC
• Input Current: 10A max cont., 45A int.
• Output Voltage: 12V/24V
• Dimensions: 12.25 × 11.88 × 23.5 in
• Weight: 30.3 lb
• Safety Certifications: UL ULC
