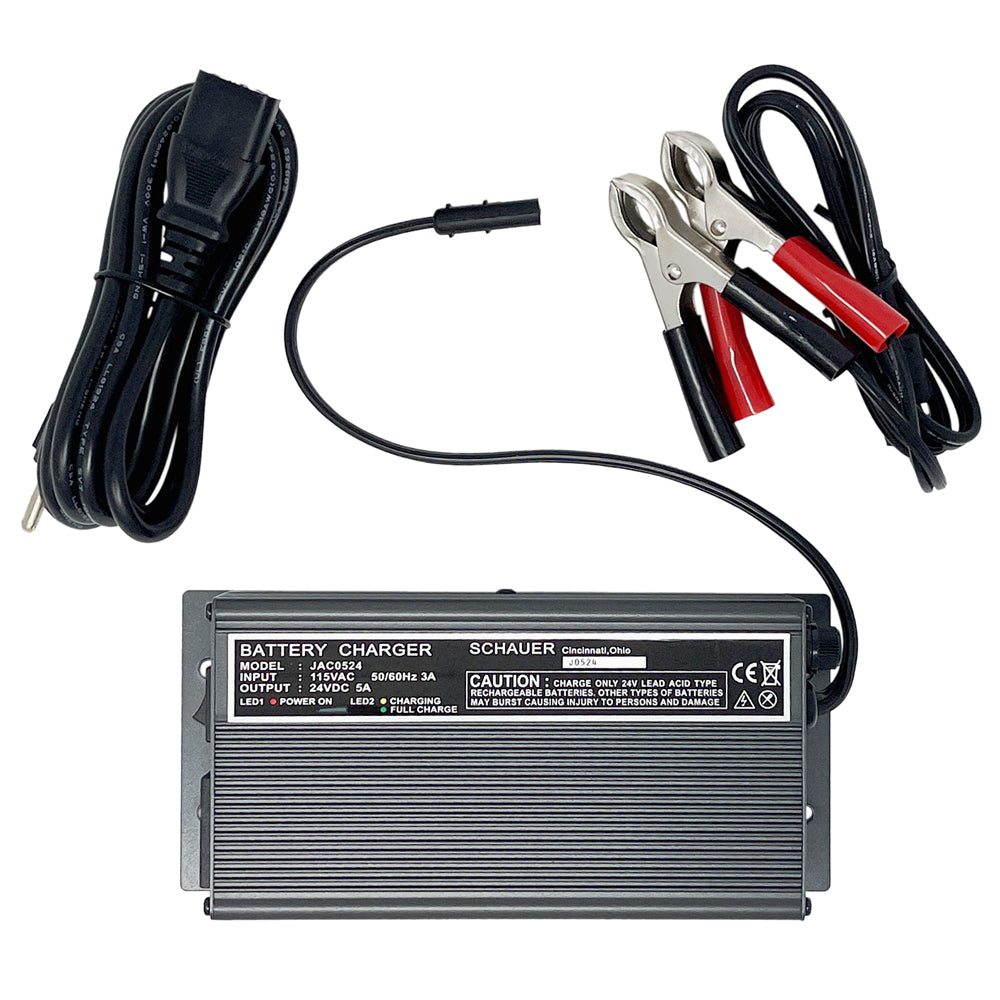

Schauer 24V 5A Fully Automatic Electronic Charger / Float Standby - 115VAC - Battery Clips
Model JAC0524-C (0891-26)
Schauer 24 Volt, 5 Amp Fully Automatic Electronic Smart Charger with Battery Clips. Intelligent charger follows battery impedance to end of charge cycle for all battery types.
• Charge control: modified constant current charge to a constant finishing voltage then to a float standby.
• Current limiting.
• Fully automatic 3 stage charger can be left on the battery indefinitely.
• For any type lead acid battery, including conventional, maintenance free, deep cycle, gelled-type, valve regulated batteries.
• Not intended for use as a DC power supply.
• Full load at 2.1 volts per cell continuous - 100% duty cycle.
• Short circuit proof.
• Reverse polarity protection.
• Mountable, aluminum case.
Red LED indicates AC power on.
Yellow LED indicates battery is charging.
Green LED indicates float mode.
• Input: 115 VAC
• DC Lead: Battery Clips
• Finish Voltage: 28.8V (2.4 volts per cell)
• Float Voltage: 27.36V (2.28 volts per cell)
• Length: 6.5"
• Width: 3.5"
• Height: 1.8"D
• Weight: 1.8 lbs
