PR18N-50 - Amp Meter 0-50A Snap-In w/Inductive Pick-Up for Battery Chargers

$13.95
SKU PR18N-50

Notify me when back in stock

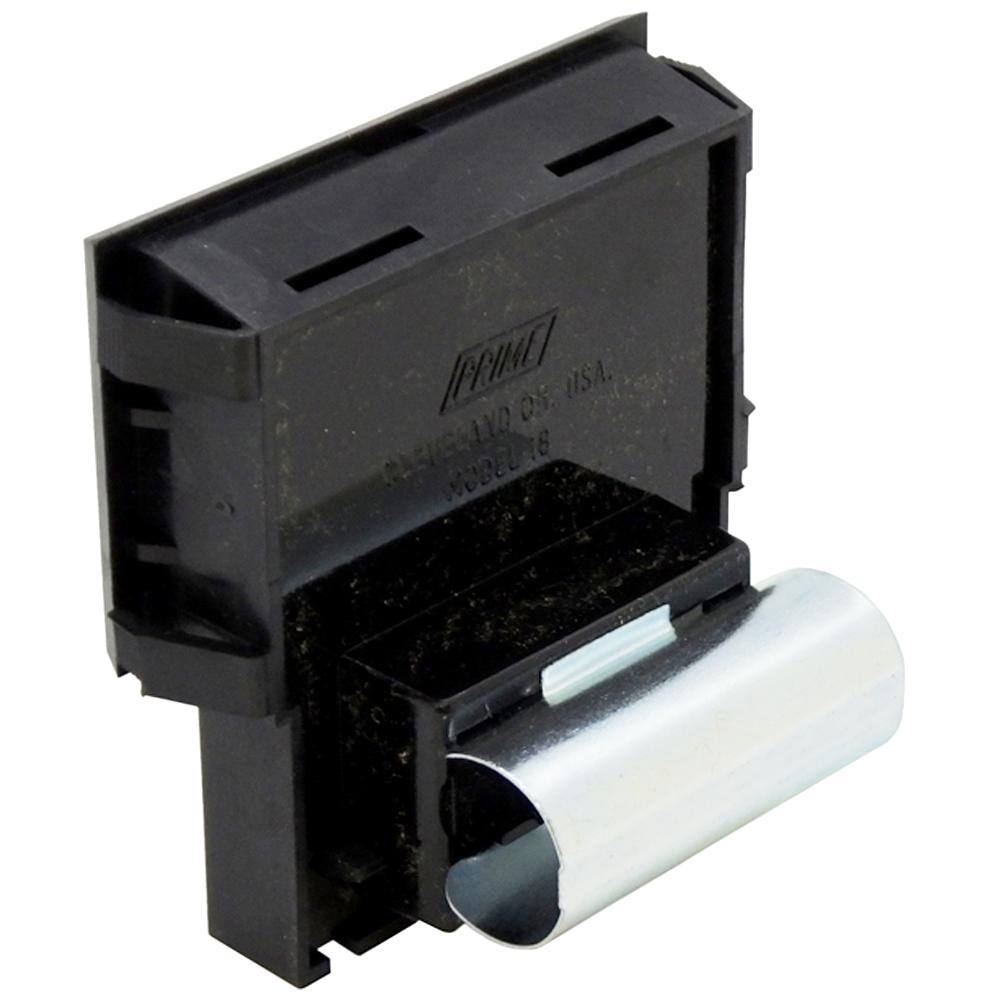

Snap-in amp meter. 0-50 amp scale. Original replacement for various 30-50 amp chargers from Schauer, Schumacher, etc. Snap-in mount to charger panel. Inductive pickup, no meter connections required.

This meter may be fitted in any battery charger with a 1.3"H x 2.15"W mounting hole in the panel. Snap-in mount to charger panel.

Features

• Bottom Movement - Needle pivots from bottom
• Inductive Pick-up - Current detected from charging circuit wire routed through inductive pick-up tube, no meter connections required
• Accuracy: 5% of Full Scale
• Made in U.S.A.

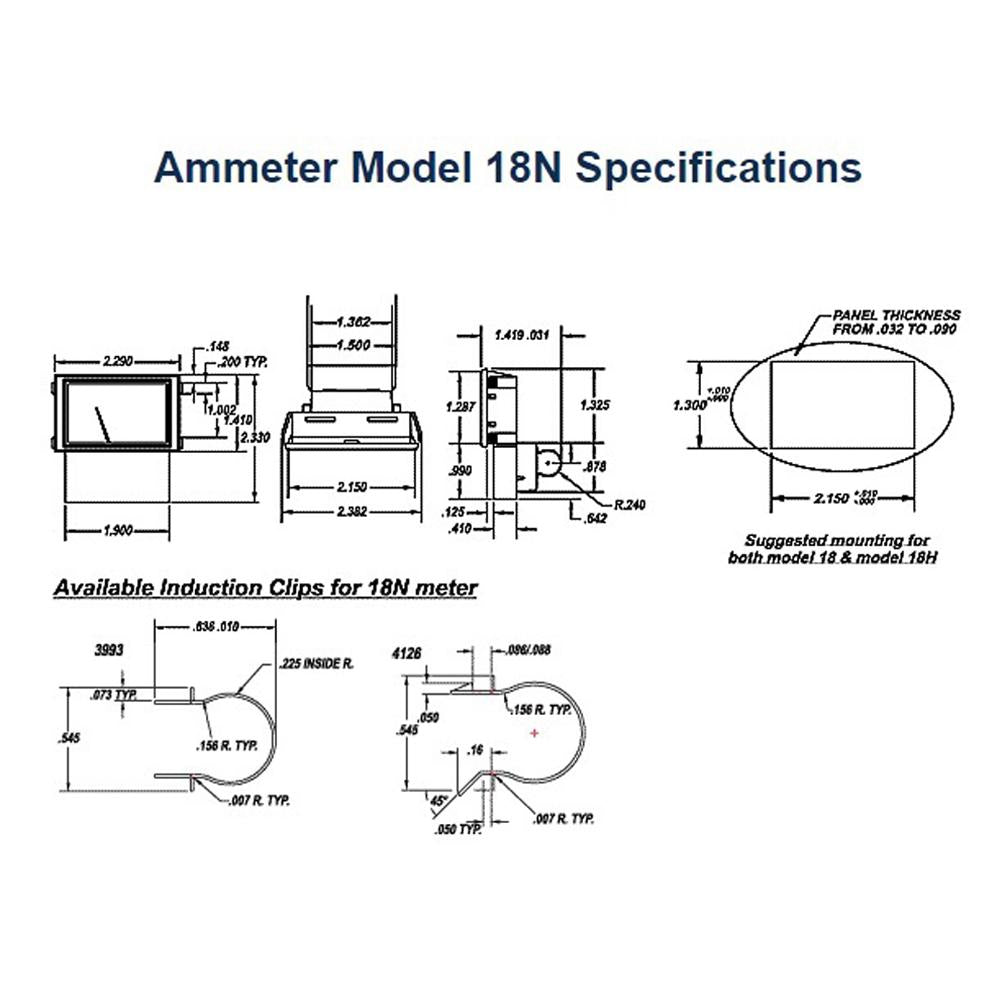

Specifications

• 1.4"H x 2.3"W Bezel Frame Outer Dimensions
• 1.3"H x 2.15"W Panel Mount Hole

Related Items

PR3551-1 - Replacement Bezel

Customer Reviews

Based on 6 reviews
100%
(6)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
B
Brett Nolan
Works as advertised

Tested DC current and it has an accurate reading.

S
Stewart Townsend
Simple meter

The meter is exactly like the one I replaced. My only complaint is there were no installation instructions. The current is sensed by an inductive loop on the back of the meter. I did not want to cut the four large wires passing through the loop. The only other way was to remove the loop from the meter, which I did. But then I had to use some silicone adhesive to hold it in place. It works ok but some instructions would have been helpful.

R
Robert Zeranski
Amp meter for battery charger

This amp meter was a perfect fit to my old Sears battery charger. Looks and works great.

H
HUMBERTO AYALA
EXCELLENT

PRODUCT OK, SERVICE EXCELLENT, TIMING FINE, IN OTHER WORDS COMPLETELY SATISFIED!!!!!!!

J
James Dikeman
Charger amp metee

Excellent buy easy install very happy
