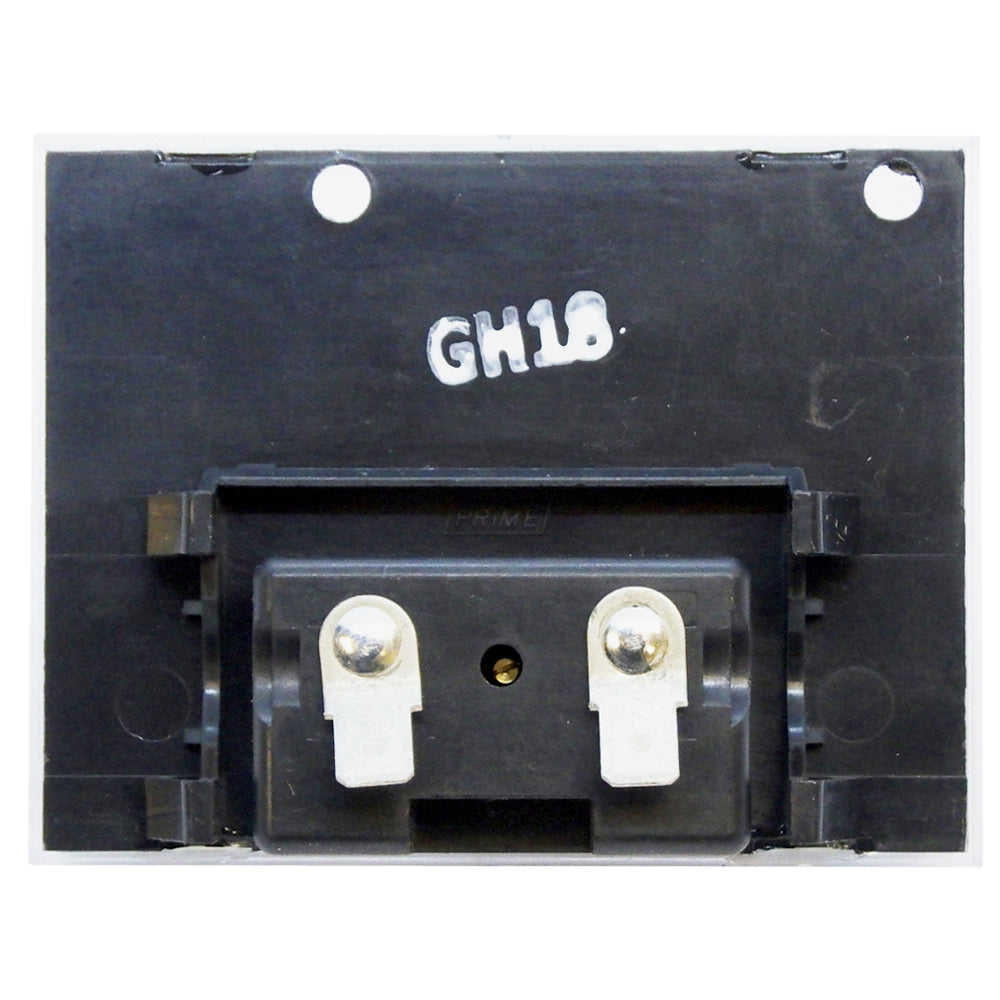

10-16 Volt Scale indicates voltage, and backplate has holes to house "Charging/Charged" LEDs.
Connections are .250" Push-On Terminals.
Snaps into 1.30"H x 2.20"W Panel Mount Hole. No tools required.
Fitment Note: Bezel is significantly larger than mounting hole.
Made in U.S.A.
Direct Replacement for Schumacher meter 5399-200-019,
Also used in these chargers manufactured by Schumacher Electric:
Carquest CBC7350
John Deere TY26878
Schumacher PSW-70300A
Specifications:
• Black ABS Backplate with Clear Bezel
• Bottom Movement - Needle pivots from bottom
• Accuracy: 5% of Full Scale
• 2.50"H x 3.25"W Bezel Outer Dimensions
• 1.30"H x 2.20"W Panel Mount Hole
