Amp Meter 0-20A Metal Face Clamp-Mount Heavy-Duty for Battery Chargers
PR24-20
0-20 Amp Clamp-Mount Heavy-Duty DC Amp Meter for Battery Chargers. Original Replacement for Various 10-15 Amp Chargers. Also an easy retro-fit in any battery charger with a 2" circular mounting hole in the panel.
Features
• Rugged Steel Case with Black Steel Bezel Frame
• Bottom Movement - Needle pivots from bottom
• Internal Shunt - Charging current flows through the meter
• Accuracy: 5% of Full Scale
• Includes Mounting & Connection Hardware
• Made in U.S.A.

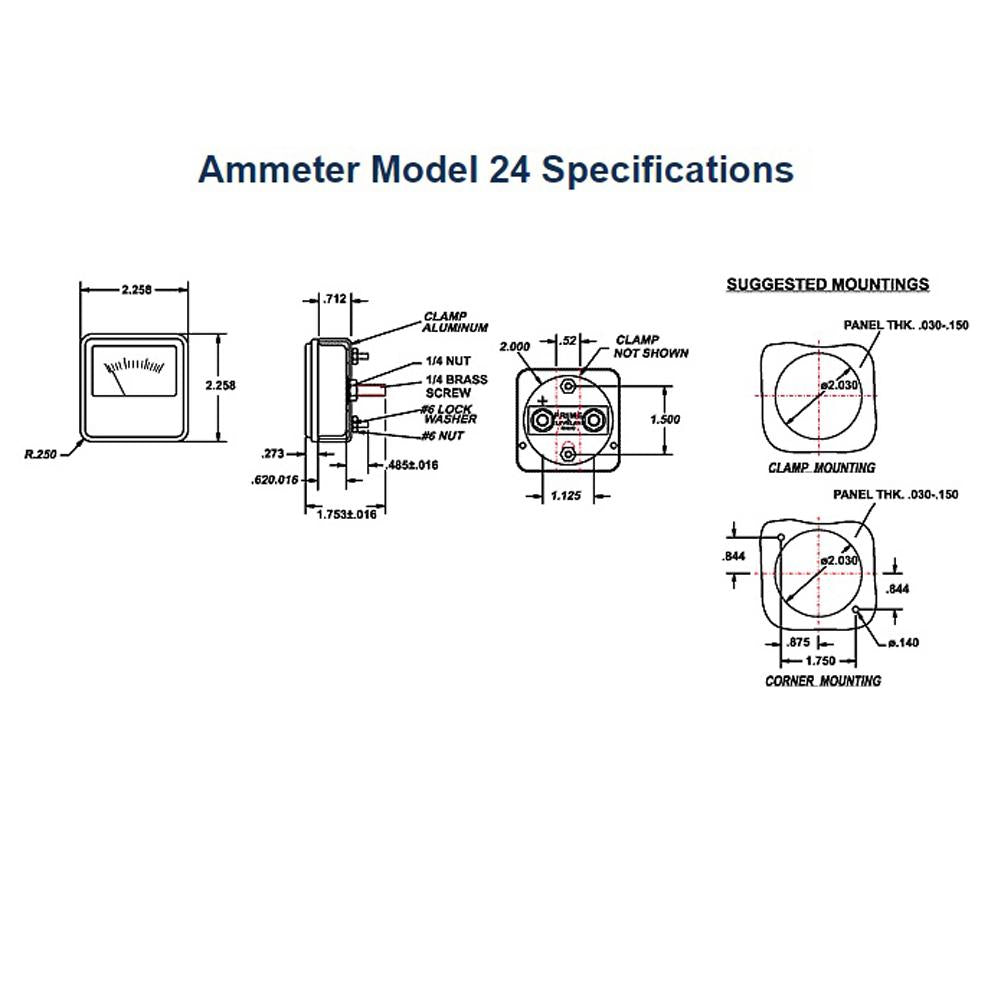

Specifications
• 2.25"H x 2.25"W Bezel Frame Outer Dimensions
• 2.03" Diameter Circular Panel Mount Hole
• #10 Brass Stud Connectors
