Volt Meter 0-20V DC Metal Face Clamp-Mount Heavy-Duty for Battery Chargers
PR24-20DV
0-20 Volt DC clamp-mount Heavy-Duty volt meter for battery chargers & voltage monitoring. Mounts in a 2" circular mounting hole.
Direct replacement for:
• Century/Solar meter 247-022-666 (can also use PR37-SC12 - State of Charge Meter)
Features
• Rugged Steel Case with Black Steel Bezel Frame
• Bottom Movement - Needle pivots from bottom
• Internal Shunt - Charging current flows through the meter
• Accuracy: 5% of Full Scale
• Includes Mounting & Connection Hardware
• Made in U.S.A.

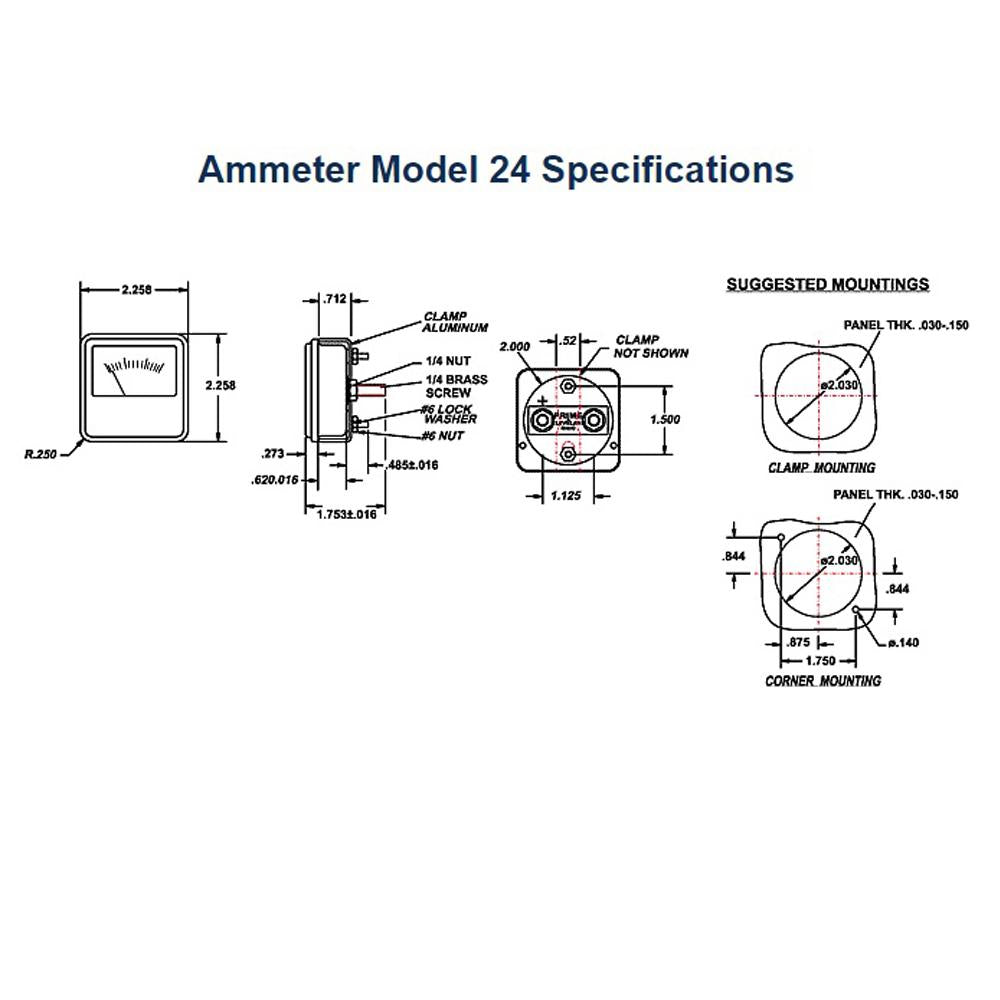

Specifications
• 2.25"H x 2.25"W Bezel Frame Outer Dimensions
• 2.03" Diameter Circular Panel Mount Hole
• #6 Brass Stud Connectors (includes tab adapters to convert stud terminals to .250" push-on connectors)
