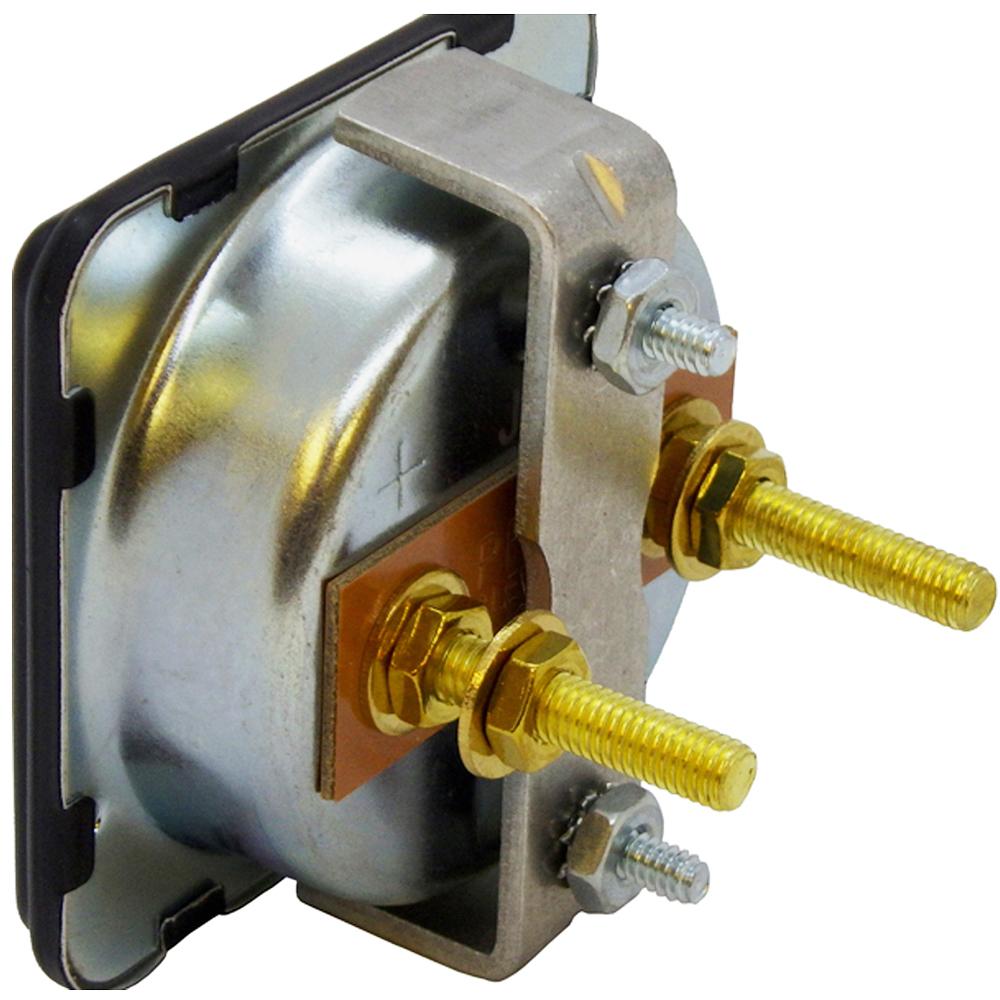

PR24-30 - Amp Meter 0-30A Metal Face Clamp-Mount Heavy-Duty for Battery Chargers
Commonly used in Lester, EZ-GO and other golf cart chargers, and found in various other 15-30 amp chargers. This meter is an easy retro-fit in any battery charger with a 2" circular mounting hole in the panel.
Direct replacement for:
• Century/Solar meter 247-016-666
• Christie meter 247-016-666
• Lester 16369S
• Rugged Steel Case with Black Steel Bezel Frame
• Bottom Movement - Needle pivots from bottom
• Internal Shunt - Charging current flows through the meter
• Accuracy: 5% of Full Scale
• Includes Mounting & Connection Hardware
• Made in U.S.A.
• 2.25"H x 2.25"W Bezel Frame Outer Dimensions
• 2.03" Diameter Circular Panel Mount Hole
• #10 Brass Stud Connectors
