Amp Meter 0-40A w/Boost Metal Face Clamp-Mount Heavy-Duty for Battery Chargers

SKU PR24-40B

Notify me when back in stock

0-40 Amp w/Boost Clamp-Mount Heavy-Duty DC Amp Meter for Battery Chargers. Used in various 15-40 Amp Chargers. This meter is an easy retro-fit in any battery charger with a 2" circular mounting hole in the panel.

Direct replacement for:
• Century/Solar meter 247-017-666
• Century/Solar meter 247-012-666


• Rugged Steel Case with Black Steel Bezel Frame
• Bottom Movement - Needle pivots from bottom
• Internal Shunt - Charging current flows through the meter
• Accuracy: 5% of Full Scale
• Includes Mounting & Connection Hardware
• Made in U.S.A.

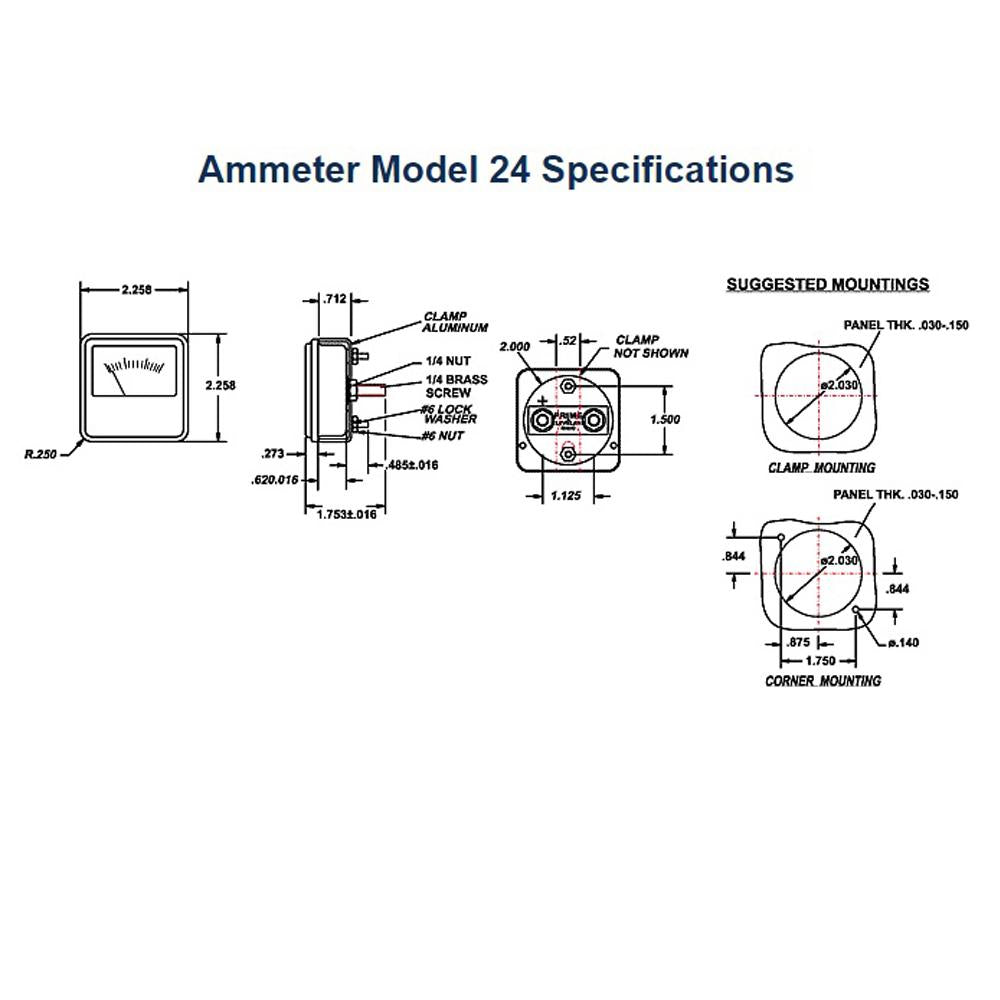

• 2.25"H x 2.25"W Bezel Frame Outer Dimensions
• 2.03" Diameter Circular Panel Mount Hole

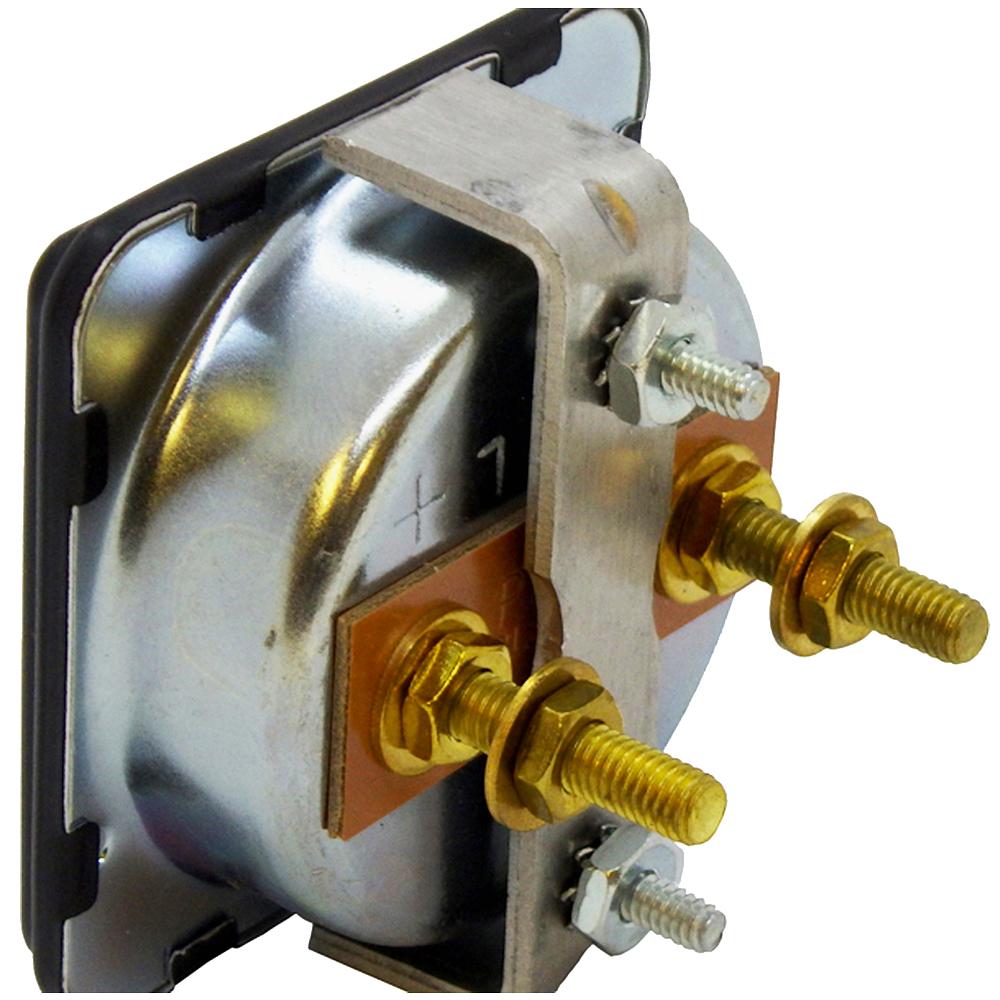

• #10 Brass Stud Connectors
