Volt Meter 0-50V DC Metal Face Clamp-Mount Heavy-Duty for Battery Chargers


Notify me when back in stock

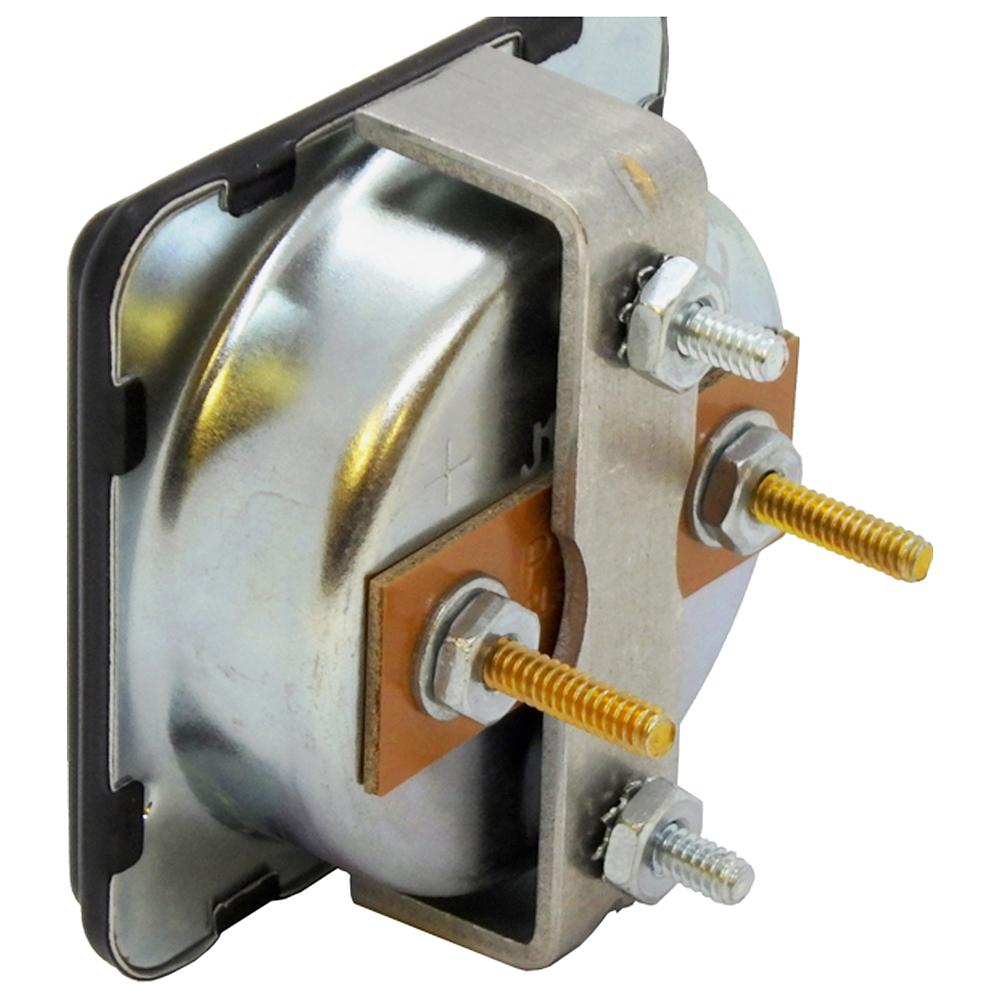

0-50 Volt DC clamp-mount Heavy-Duty volt meter for battery chargers & voltage monitoring. Mounts in a 2" circular mounting hole.

Direct replacement for:
• Century/Solar meter 247-017-666


• Rugged Steel Case with Black Steel Bezel Frame
• Bottom Movement - Needle pivots from bottom
• Internal Shunt - Charging current flows through the meter
• Accuracy: 5% of Full Scale
• Includes Mounting & Connection Hardware
• Made in U.S.A.


• 2.25"H x 2.25"W Bezel Frame Outer Dimensions
• 2.03" Diameter Circular Panel Mount Hole
• #6 Brass Stud Connectors (includes tab adapters to convert stud terminals to .250" push-on connectors)
