Volt Meter 36V DC State-of-Charge & Battery Test Meter Clamp-Mount

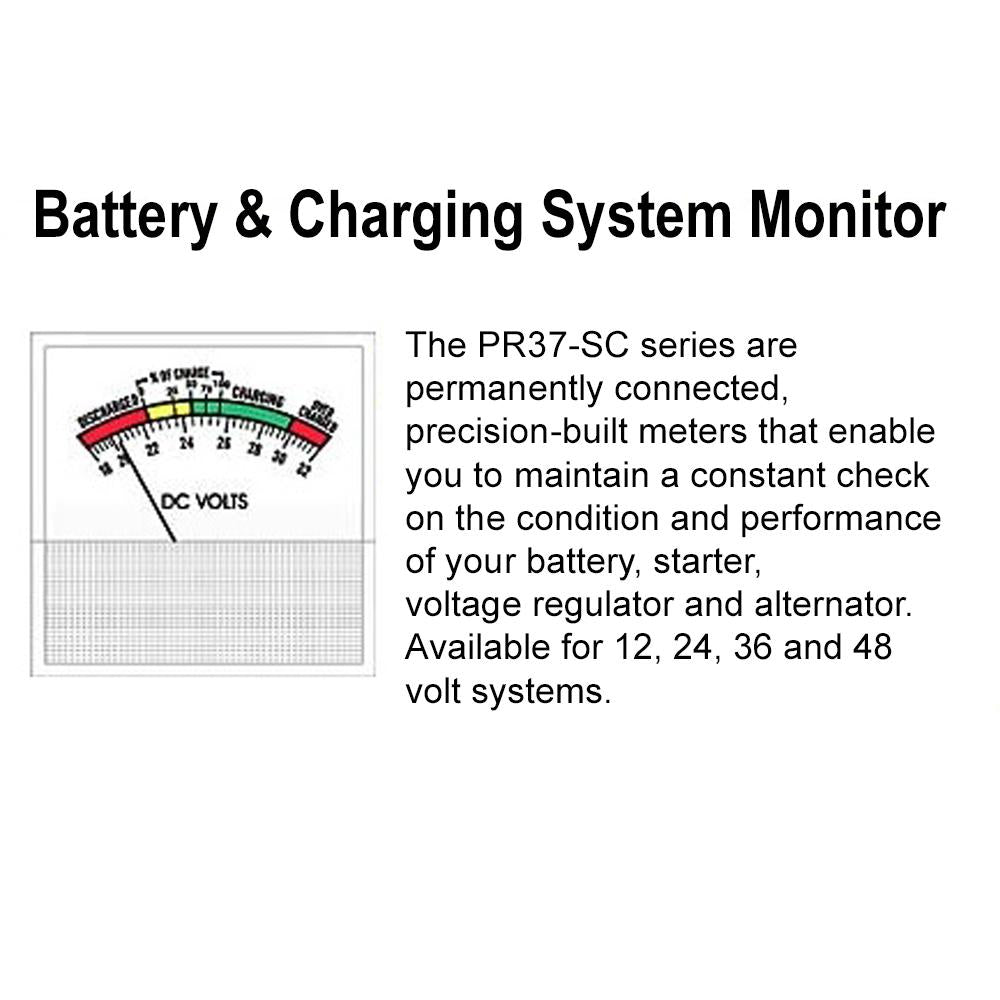

36V State-of-Charge & Battery Test Meter for 36 Volt DC systems. Also used for Charging System Monitoring. 27-48V scale with Discharged-Charging-Overcharged Zones for Battery Charging Cycle, and Percent of Charge Scale for Battery Load Testing applications. Easily installed in any panel with a 2" circular mounting hole. Panel thickness from .030-.150".
• Polystyrene Bezel with Zinc-Plated Steel Backplate
• Rugged, Moving Magnet construction
• Bottom Movement - Needle pivots from bottom
• Internal Shunt - Charging current flows through the meter
• Accuracy: 5% of Full Scale
• Includes Mounting & Connection Hardware
• Made in U.S.A.

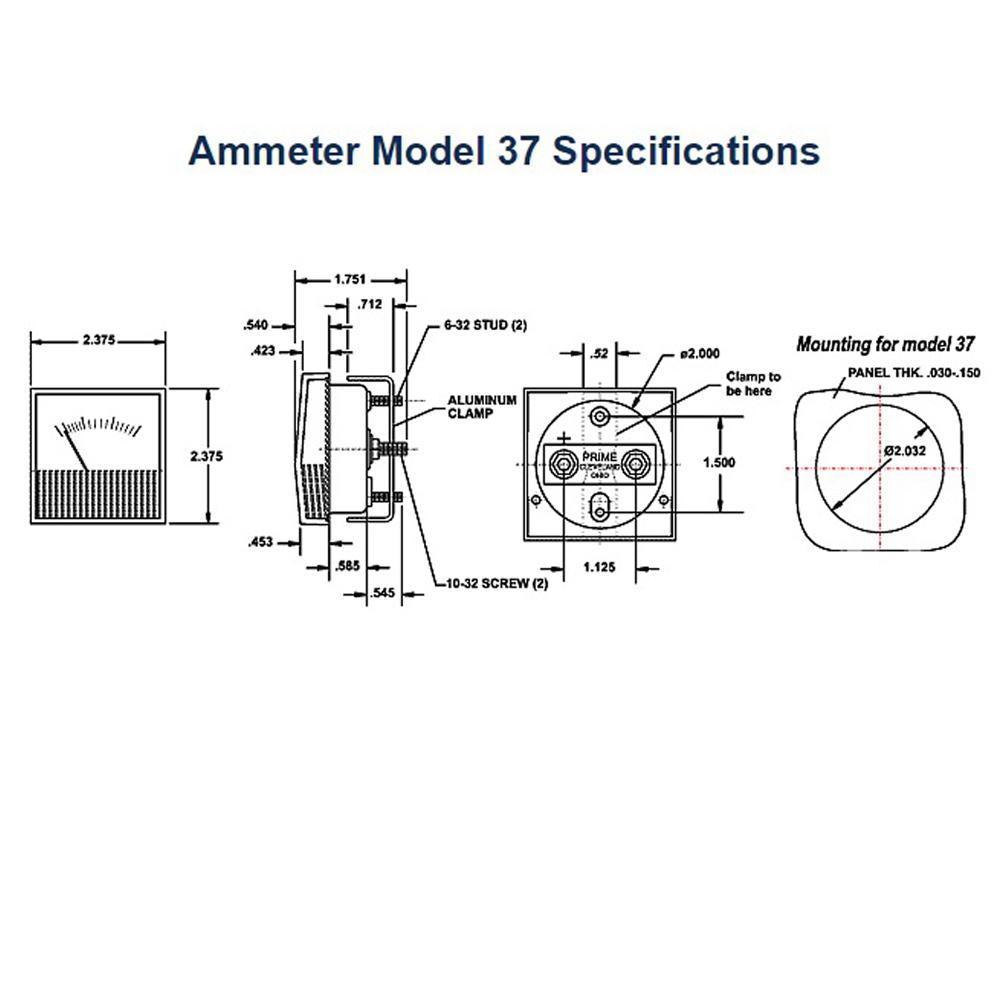

• 2.375"L x 2.375"W x .540"H Bezel Outer Dimensions
• 2.03" Diameter Circular Panel Mount Hole

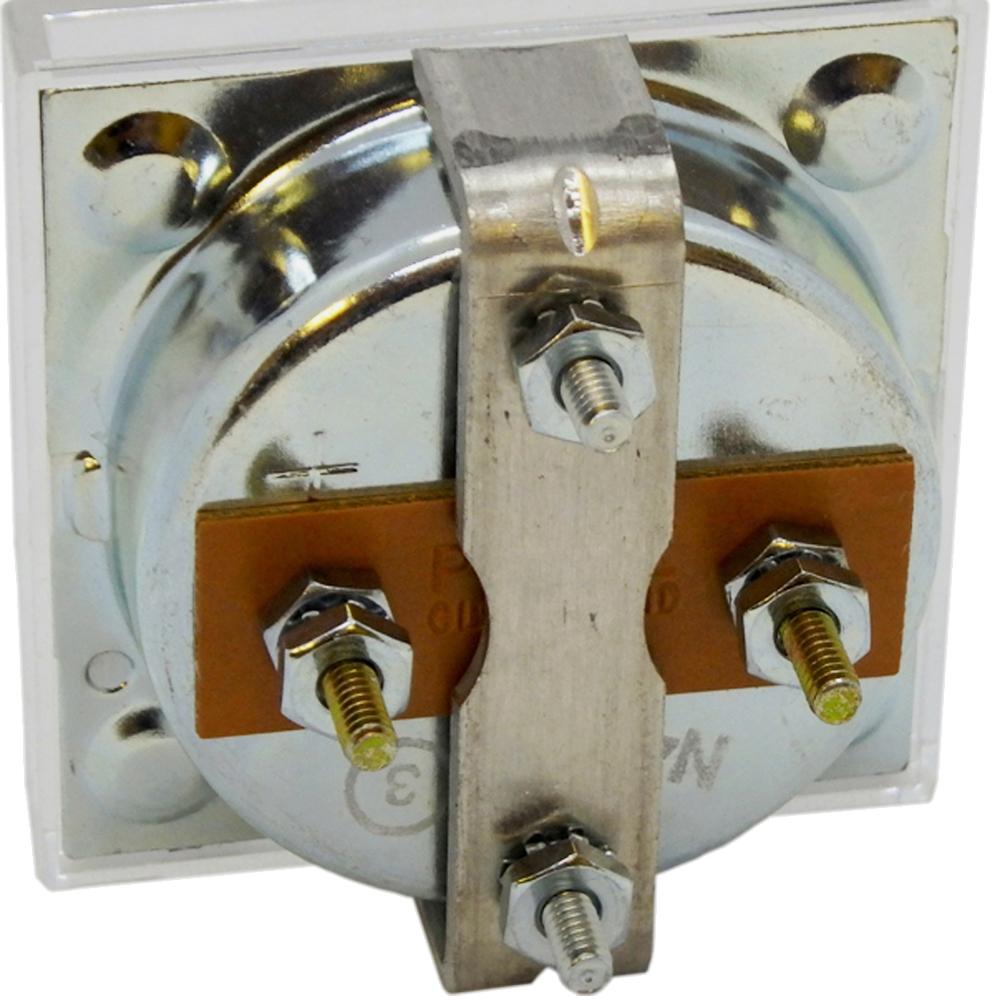

• #6 Brass Stud Connectors (includes tab adapters to convert stud terminals to .250" push-on connectors)
