Amp Meter 0-100A Stud-Mount Heavy-Duty for Battery Chargers
PR37S-100

$21.95
SKU PR37S-100

Notify me when back in stock

0-100 Amp Stud-Mount Heavy-Duty DC Amp Meter for Battery Chargers.

Direct replacement for:
• Century/Solar meter 247-170-666
• Christie meter 247-170-666

Also used in various other 50-90 Amp Chargers. This meter may be fitted in any battery charger with corner-stud mount holes and a 2" circular mounting hole in the panel.

Features

• Polystyrene Bezel with Zinc-Plated Steel Backplate
• Rugged, Moving Magnet construction
• Bottom Movement - Needle pivots from bottom
• Internal Shunt - Charging current flows through the meter
• Accuracy: 5% of Full Scale
• Includes Mounting & Connection Hardware
• Made in U.S.A.

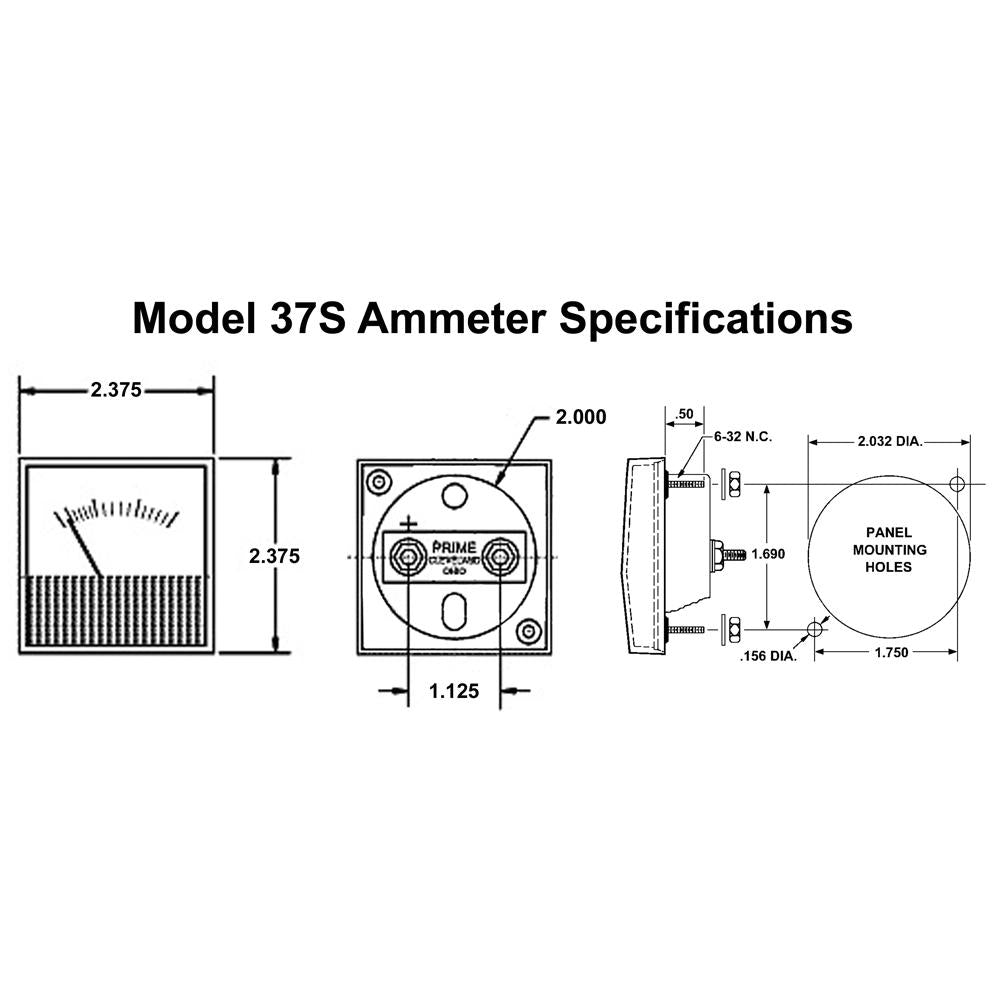

Specifications

• 2.375"L x 2.375"W x .540"H Bezel Outer Dimensions
• 2.03" Diameter Circular Panel Mount Hole
• 1/4" Brass Stud Connectors

Related Items

PR2763-2 - Replacement Bezel for Type PR27 & PR37 Meters
