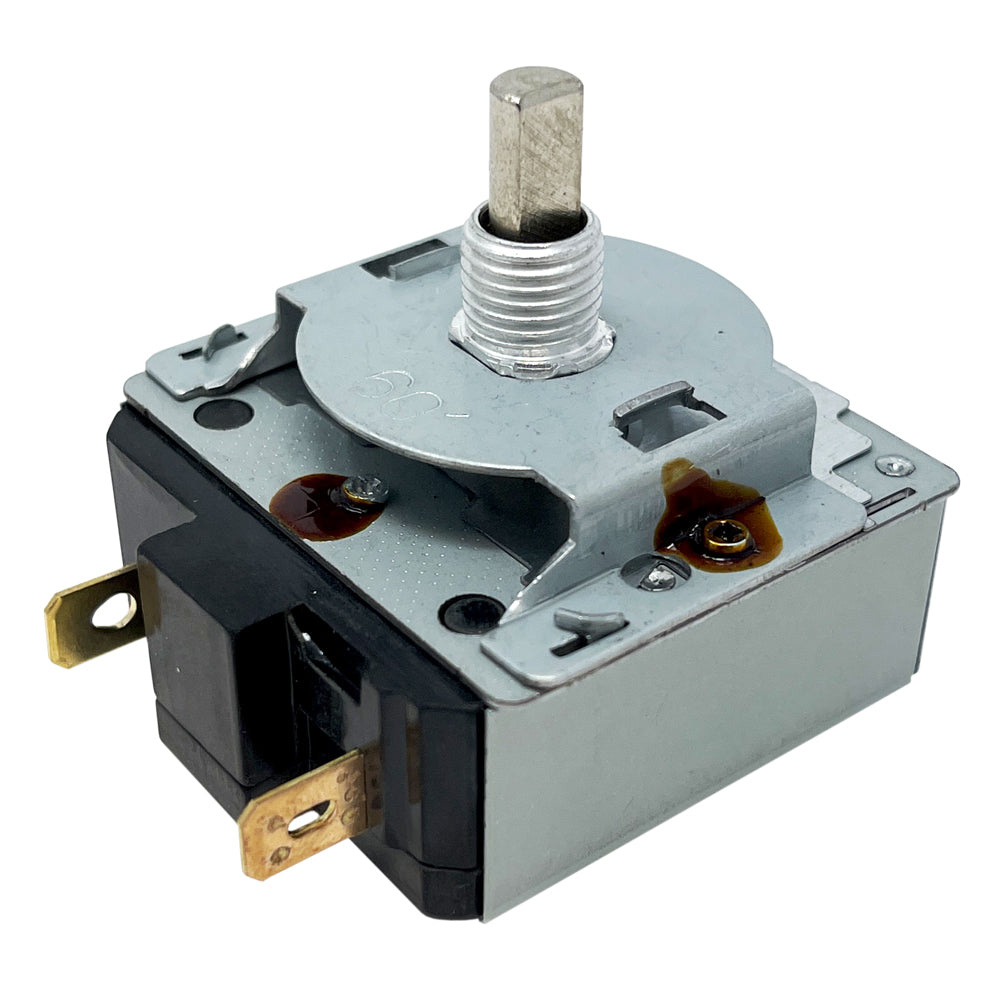

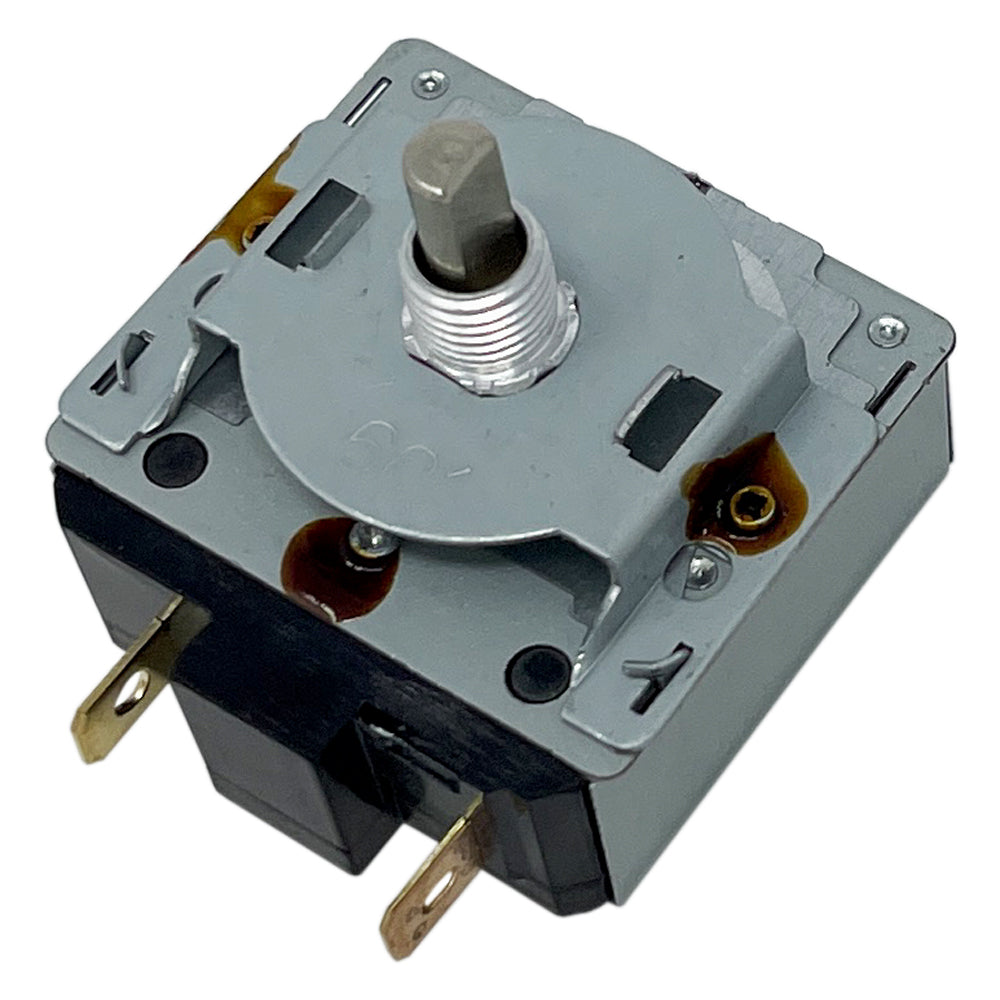

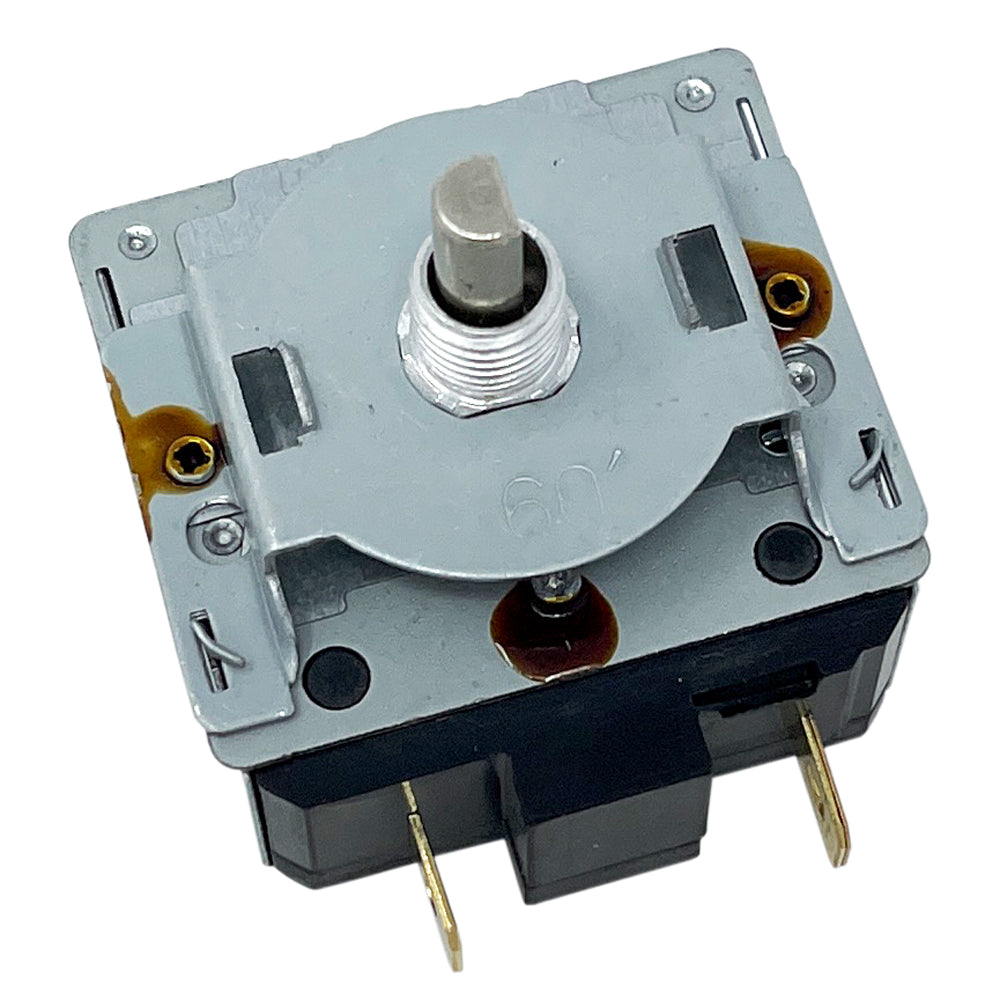

697060A - Timer Kit - Mechanical 60 Minute 1/4" (6 MM) D-Shaft 3/8" Threaded Sleeve Panel Mount
60 Minute Mechanical Timer & Hardware Kit
Can be used to replace older electrical and mechanical timers found in many models of battery chargers. A cost-effective retro-fit to replace more expensive OEM timers. Designed to be easy to install through a 3/8" stem-mounting hole. Wire terminals use .250" industry-standard solderless push-on connectors. No AC power is required to run this timer. No specialty tools required.
Rotate knob clockwise to a set position, timer will countdown counter-clockwise back to the OFF position. NOTE: This timer does NOT have a "HOLD" position.
Features
• 60 Minute duration, NO "HOLD" position
• Mounts in 3/8" panel hole with included panel nut and lock washer
• Straightforward instructions and simple design allows easy installation. No special tools are required
Specifications
• .250" Push-on connectors
• Switched Current Rating - 13A/120VAC, 16A/250VAC

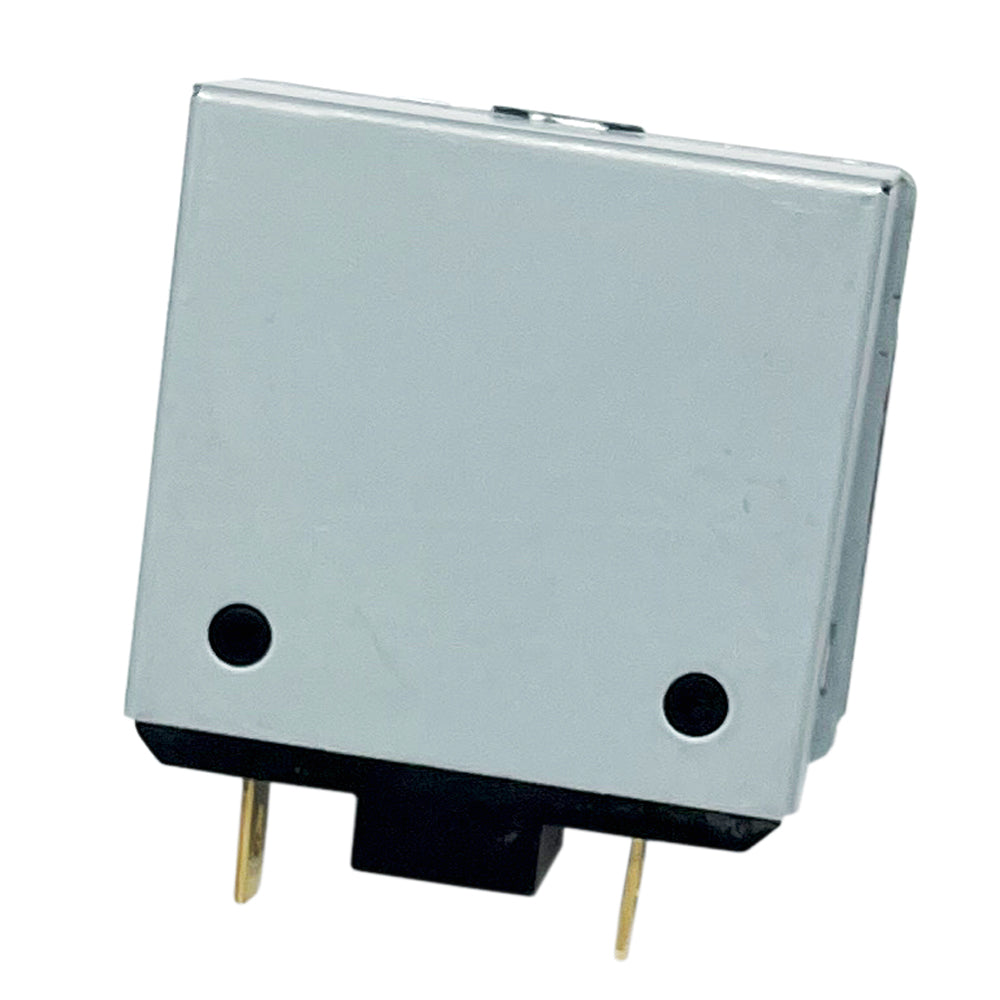

• Timer body - 1.71"H x 1.85"W x 1.04"D
• Stem - .70"L x 6MM (.236") Diameter
Contents
• 60 minute timer

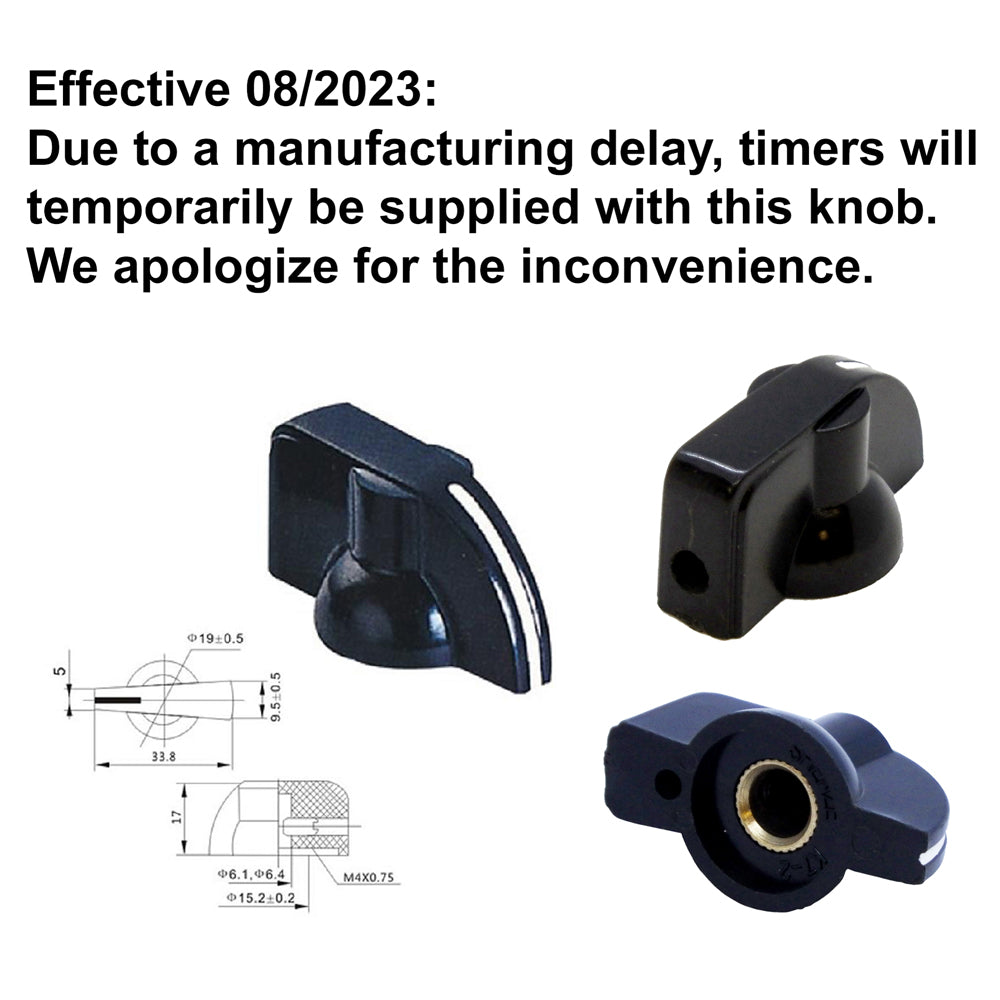

• Skirted Pointer-style Knob - push-on fit with metal retainer insert (our part # 696552)
• Mounting fasteners & hardware
• Laminated 60 minute Dial Label

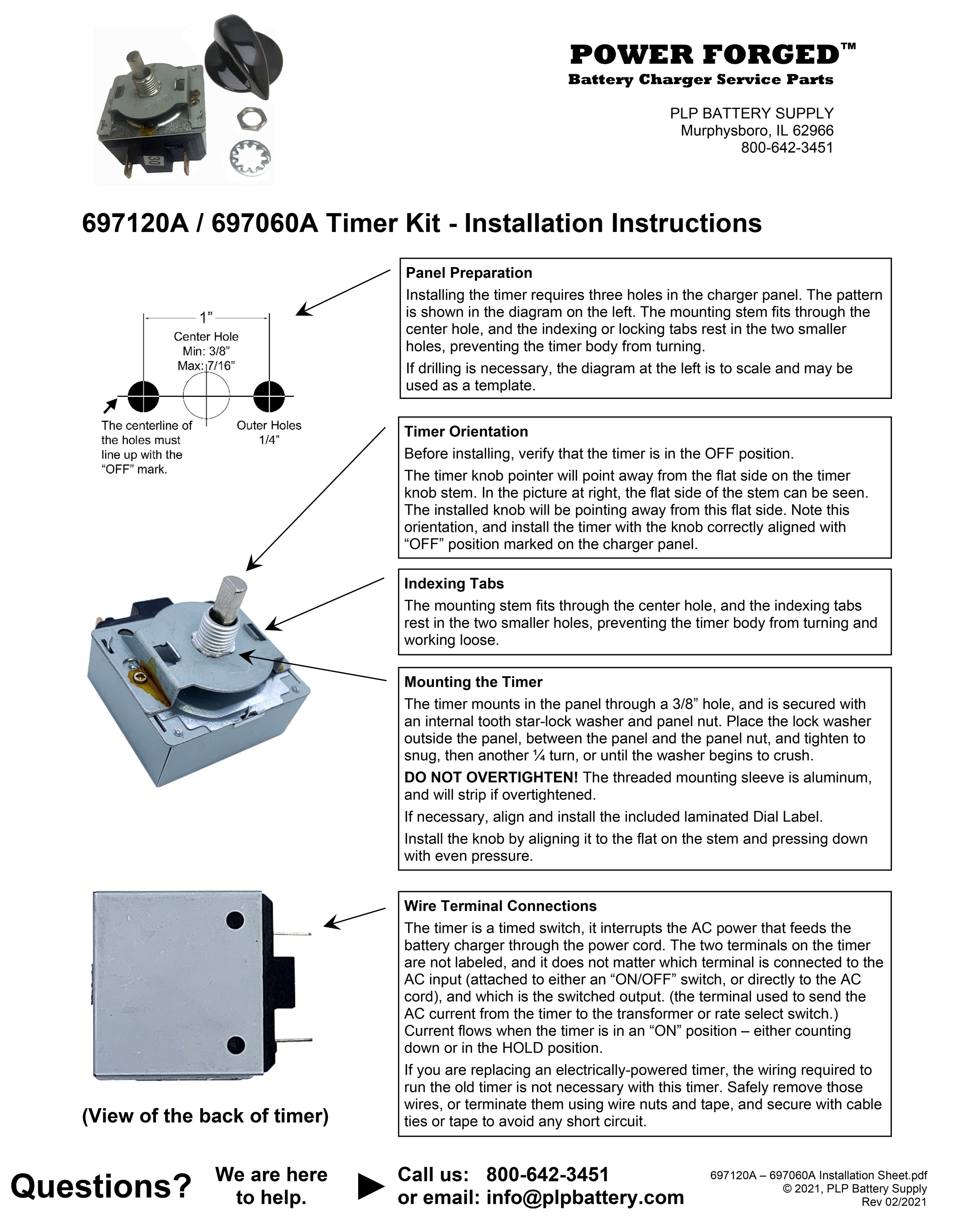

• Instruction sheet
